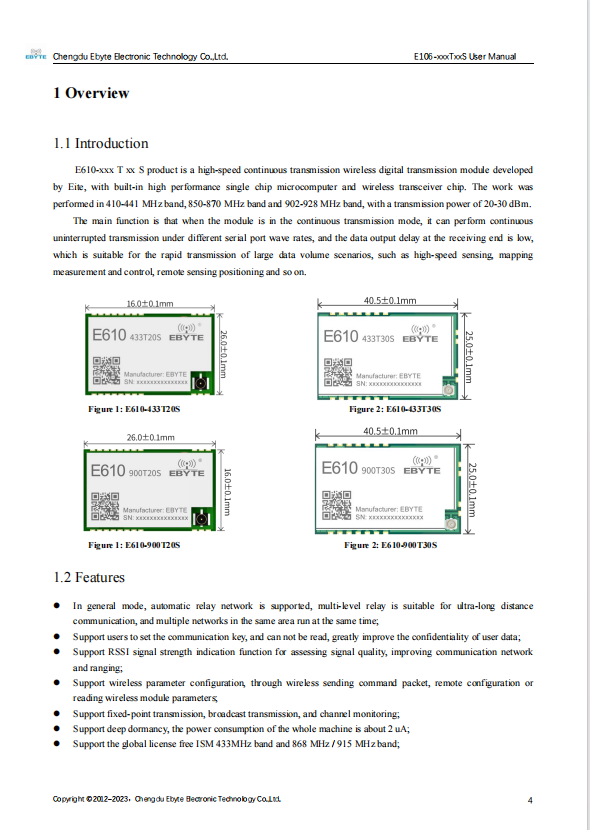

Product Descriptions

E610-xxx T xx S product is a high-speed continuous transmission wireless digital transmission module developed by Eite, with built-in high performance single chip microcomputer and wireless transceiver chip. The work was performed in 410-441 MHz

band, 850-870 MHz band and 902-928 MHz band, with a transmission power of 20-30 dBm.

The main function is that when the module is in the continuous transmission mode, it can perform continuous uninterrupted transmission under different serial port wave rates, and the data output delay at the receiving end is low, which is suitable for

the rapid transmission of large data volume scenarios, such as high-speed sensing, mapping measurement and control, remote sensing positioning and so on.

Product Features

? In general mode, automatic relay network is supported, multi-level relay is suitable for ultra-long distance communication, and multiple networks in the same area run at the same time;

? Support users to set the communication key, and can not be read, greatly improve the confidentiality of user data;

? Support RSSI signal strength indication function for assessing signal quality, improving communication network and ranging;

? Support wireless parameter configuration, through wireless sending command packet, remote configuration or reading wireless module parameters;

? Support fixed-point transmission, broadcast transmission, and channel monitoring;

? Support deep dormancy, the power consumption of the whole machine is about 2 uA;

? Support the global license free ISM 433MHz band and 868 MHz / 915 MHz band;

? E610-433T30S and E610-900T30S modules have built-in PA + LNA + SAW, under ideal conditions, the communication distance can reach 10km;

? E610-433T 20S, E610-900T 20S modules have built-in LNA + SAW, under ideal conditions, the communication distance can reach 6km;

? The parameters are saved, and the module will work according to the set parameters;

? Efficient watchdog design, in case of abnormal, the module will automatically restart, and can continue to work according to the previous parameter Settings;

? Support the data transmission rate of 0.5 k ~ 470 kbps;

? Support 3.3V power supply has the best performance;

? Industrial standard design, support-40~ + 85℃ long time use;

Product Applications

? Home security alarm and remote keyless entry;

? High-speed industrial sensors;

? Wireless alarm security system;

? Building automation solutions;

? Wireless industrial-grade remote control;

? Health care products;

? Advanced meter reading architecture (AMI);

? Automotive industry applications.

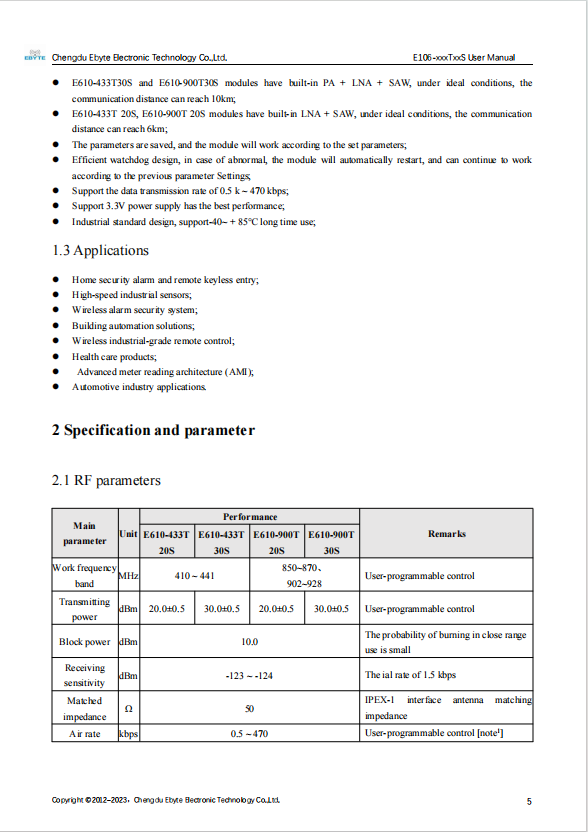

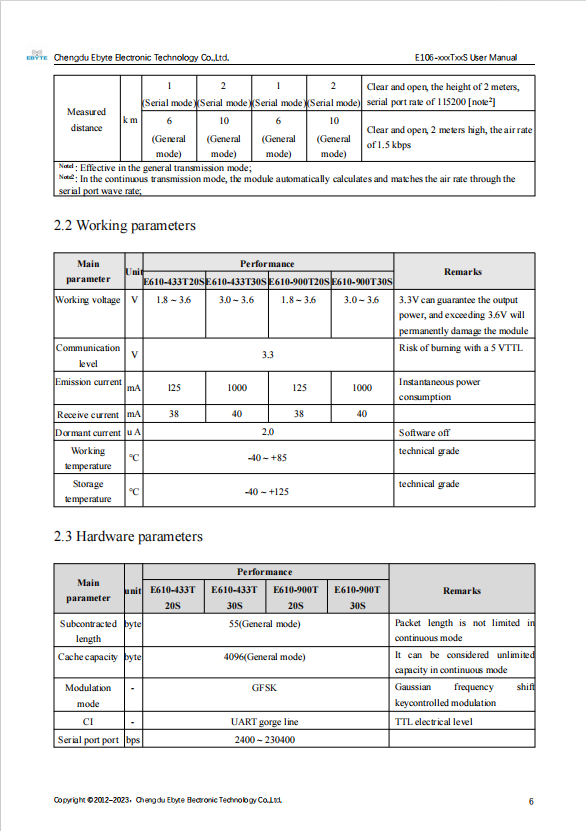

Specifications

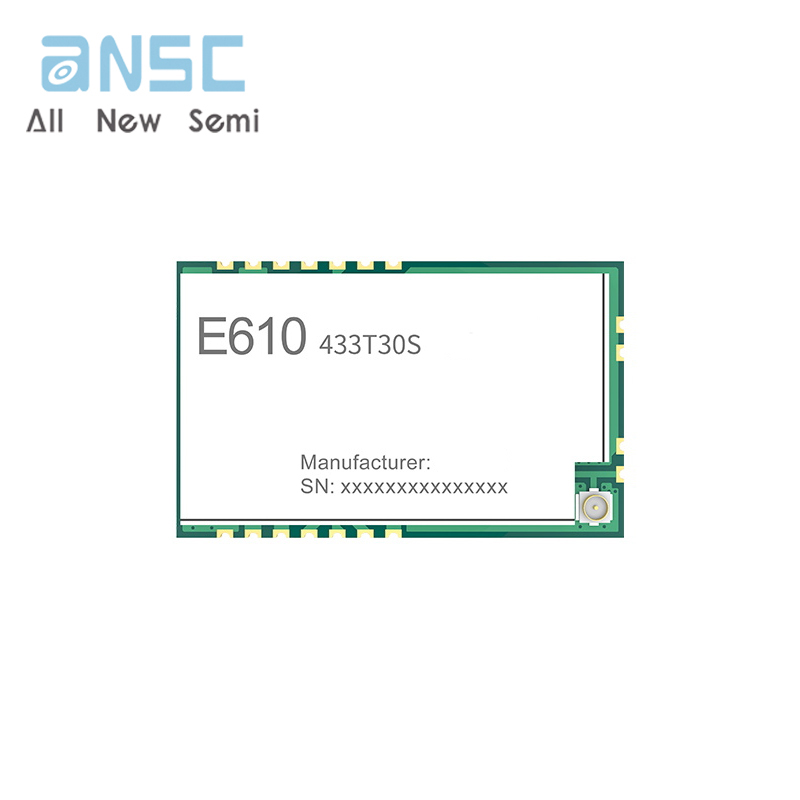

Actual product photos

Product Data Manual：

For more product information, please download the PDF
