Product Descriptions

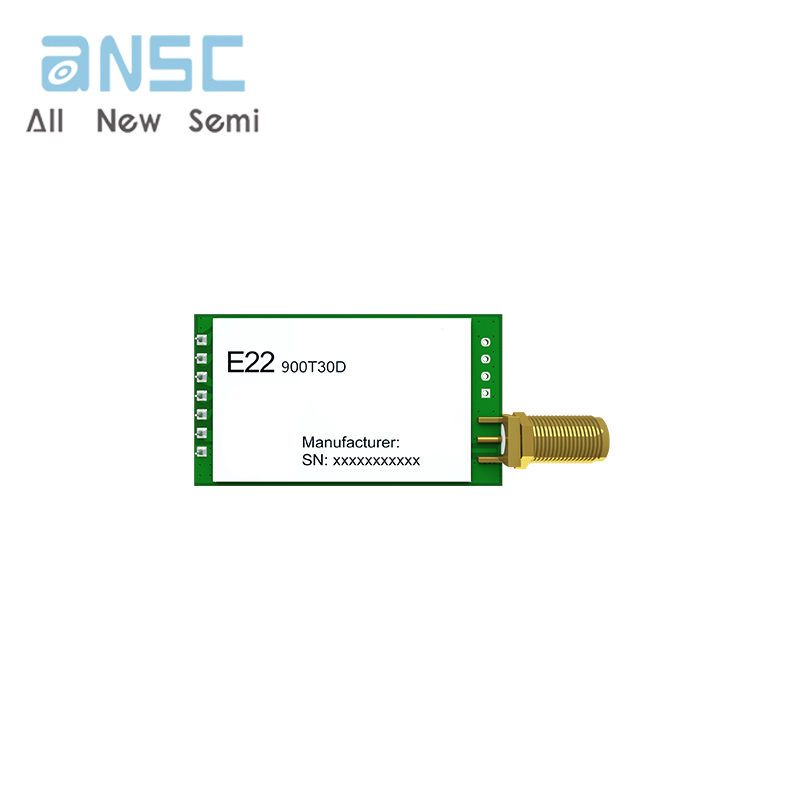

E22-900T30D is a wireless module (UART) based on SX1262 with multiple transmission modes, working in the 850.125MHz~930.125MHz,

(default 868.125MHz). It features LoRa spread spectrum technology, TTL level output.compatible with 3.3V and 5V lO port voltage.

E22-900T30D adopts a new generation of LoRa spread spectrum technology Compared with the traditional SX1278 solution, it has a longer

transmission distance, faster speed, lower power consumption, and smaller size, it supports functions such as air wake-up, wireless

configuration, carrier monitoring, automatic relay.communication keys and sub-package length setting.Ebyte provides customized development

services on it.

Product Applications

? Home security alarm and remote keyless entry;

? Smart home and industrial sensors;

? Wireless alarm security system;

? Building automation solutions;

? Wireless industrial-grade remote control;

? Health care products;

? Advanced Meter Reading Architecture(AMI),

? Automotive industry applications.

Product Features

? SX1262 LoRa chip brings further communication distance and stronger anti-interference ability;

? Supports automatic relay network, multilevel relay used in long distance communication, the same area to run multiple network running at the same time;

? The communication allows users to set key that cannot be read, greatly improving the user data privacy;

? Supports LB'T finction, before sending channel environmental noise monitoring, can greatly increase the successrate of communication module in harsh environment.

? RSSl signal strength indicator function, can be used to assess the sienal quality, improve the communication network and distance;

? Wireless parameters configuration, sent via wireless instruction packet, or read a wireless remote configurationmodule parameters;

? Air wake up, that is, ultra-low power consumption function, suitable for a battery-powered application solutions.

? Supports fixed transmission, radio transmission, channel to monitor.

? Deep sleep mode enables 2 uA power consumption;

? Global free license ISM 868/915 MHZ band;

? Under ideal conditions, the communication distance can be up to 10 km,

? Supports parameter electricity saving, electricity again after the module will work according to set good parameters;

? Effective watchdog design, once an exception occurs, the module will be in automatic restart, and can continue to work on previous parameter;

? 0.3 k~ 62.5 kbps air data rate;

? 3.3 V to 5.5 V power supply, over 5V power supply can ensure the best performance;

? Industry-standard design, support -40~+ 85 ℃ under long time use;

?Size and shape are consistent with E32 series module, which can be directly replaced to improve performance and distance.
