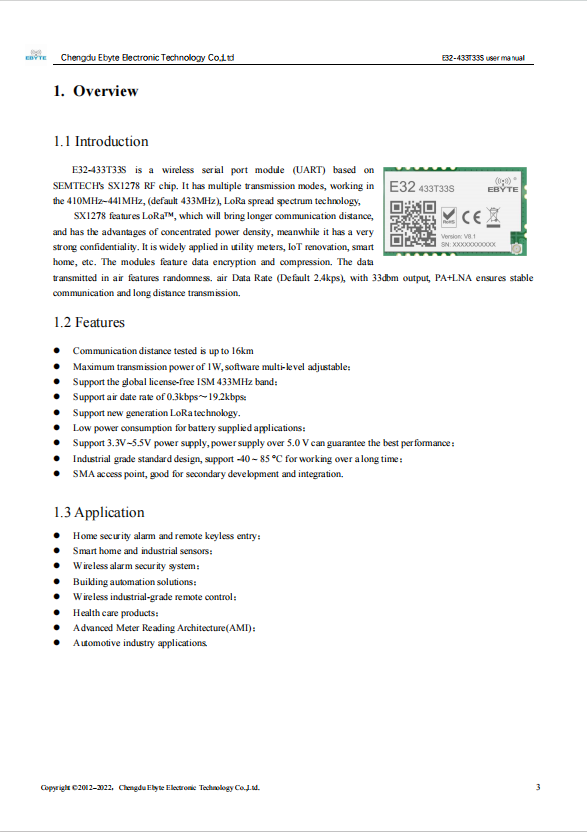

Product Descriptions

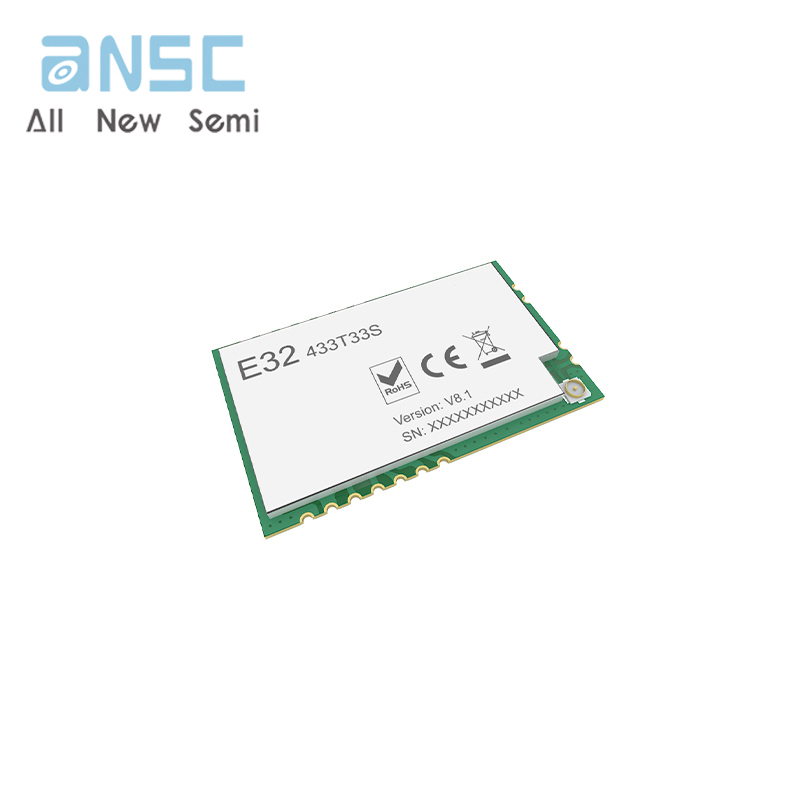

E32-433T33S is a wireless serial port module (UART) based on SEMTECH's SX1278 RF chip. It has multiple transmission modes, working in the 410MHz~441MHz.(default 433MHz), LoRa spread spectrum technology.
SX1278 features LoRarm, which will bring longer communication distance.and has the advantages of concentrated power density, meanwhile it has a very strong confidentiality. It is widely applied in utility meters, loT renovation, smart home, etc. The modules feature data encryption and compression. The data transmitted in air features randomness. air Data Rate (Default 2.4kps), with 33dbm output, PA+LNA ensures stable
communication and long distance transmission.
Product Features
? Communication distance tested is up to 16km
? Maximum transmission power of 1W, software multi-level adjustable;
? Support the global license-free ISM 433MHz band;
? Support air date rate of 0.3kbps~ 19.2kbps;
? Support new generation LoRa technology.
? Low power consumption for battery supplied applications;
? Support 3.3V~5.5V power supply, power supply over 5.0 V can guarantee the best performance;
? Industrial grade standard design, support -40 ~ 85 C for working over a long time;
? SMA access point, good for secondary development and integration.
Product Applications
? Home security alarm and remote keyless entry;
? Smart home and industrial sensors;
? Wireless alarm security system;
? Building automation solutions;
? Wireless industrial-grade remote control;
? Health care products;
? Advanced Meter Reading Architecture(AMI);
? Automotive industry applications.

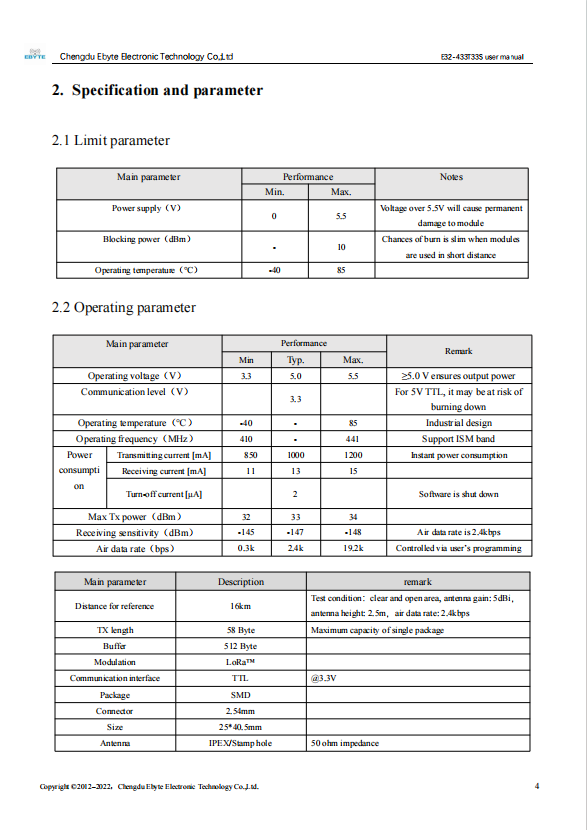

Specifications
| Attribute | Attribute value | Notes |
| ANSM-Part# | ANSM-E32-433T33S | |
| Working frequency | 410~441 MHz | Default: 433MHz |
| Transmitting power | 32~34 dBm | - |
| Receiving sensitivity | -147 dBm | Air data rate: 2.4kbps |
| Air data rate | 0.3k~19.2kbps | Default: 2.4kbps |
| Test distance | 16km | In open and clear air, with maximum power, 5dBi antenna gain, height of 2.5m,air data rate: 2.4kbps |
| Size | 25 * 40.3 mm | |
| Antenna type | IPX/Stamp hole | Characteristic impedance of approximately 50 ohms |
| Communication interface | TTL | @3.3V |
| Package | SMD | |
| Emission current (mA) | 1000 | Instantaneous power consumption |
| Received current (mA) | 13 | |
| Power supply voltage (V) | 3.3-5.5 |

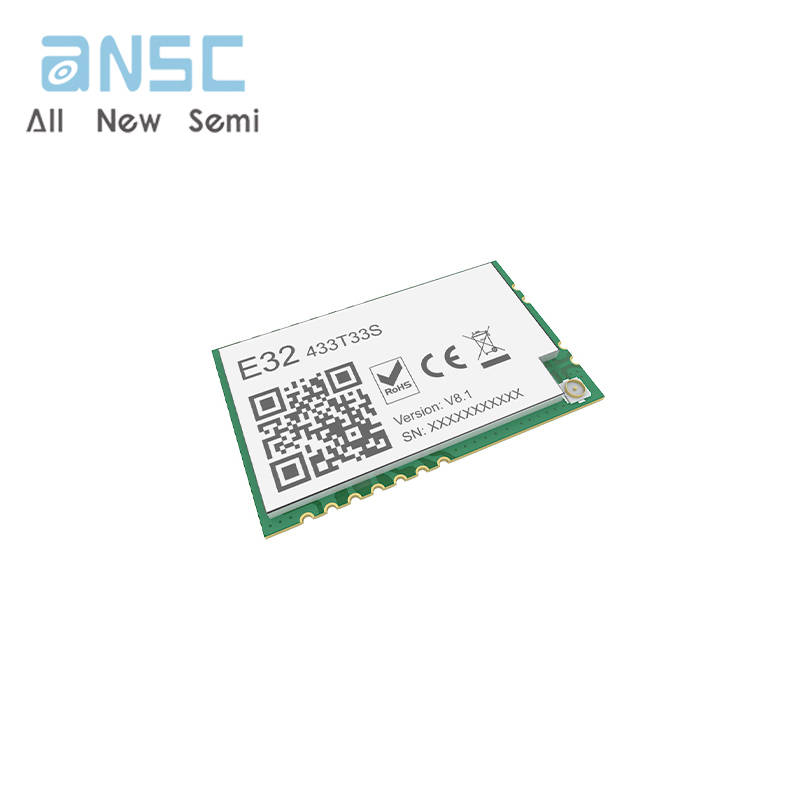

Actual product photos
