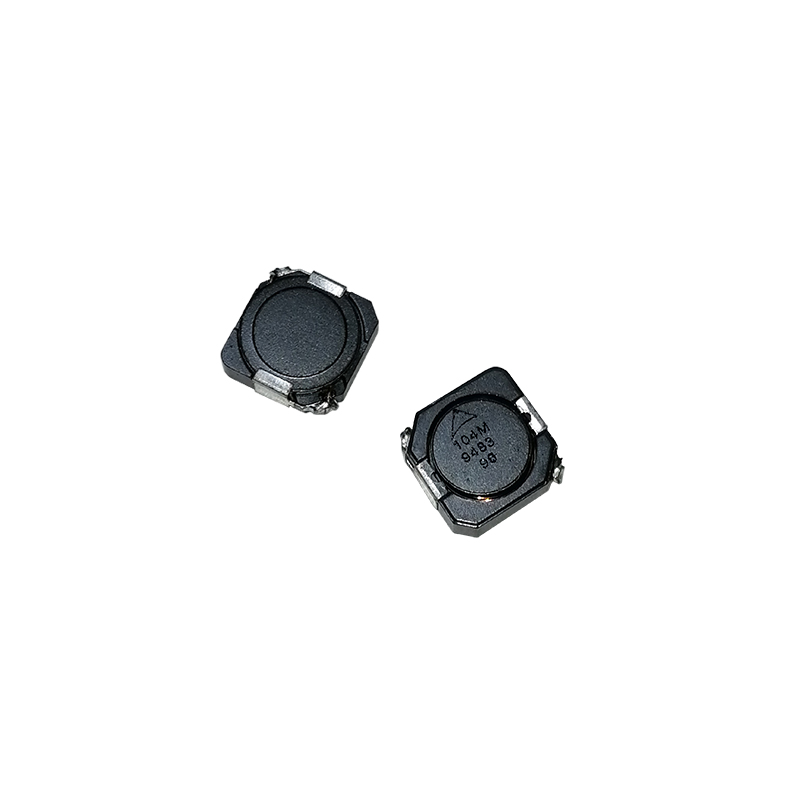

Part# | B82464G4104M000 |
category | Inductors, Coils, Chokes |
Fixed Inductors | |
manufacturer | EPCOS - TDK Electronics |
series | B82464G4 |
Package | Tape and Reel (TR) |
Shear Band (CT) | |
product status | in stock |
type | Drum Core, Wirewound |
Material - Magnetic Core | Ferrite |
inductance | 100 H |
Tolerance | ±20% |
Rated Current (Ampere) | 1.05 A |
Current - Saturation (Isat) | 1.15A |
shield | shield |
DC resistance (DCR) | 220 milliohms max |
Q value at different frequencies | - |
Frequency - Self-resonance | 6.5MHz |
grade | AEC-Q200 |
Operating temperature | -55°C ~ 150°C |
Inductor Frequency - Test | 100 kHz |
installation type | Surface Mount Type |
Package/Enclosure | non-standard |
Supplier Device Packaging | - |
size/dimension | 0.409"L x 0.409"W (10.40mm x 10.40mm) |
Height - Mounted (Maximum) | 0.189"（4.80mm） |
