Product Descriptions
The second generation CoolSET?-F2 provides several special enhancements to satisfy the needs for low power standby and protection features.
In standby mode frequency reduction is used to lower the power consumption and support a stable output
voltage in this mode. The frequency reduction is limited to 20kHz/21.5 kHz to avoid audible noise. In case of failure modes like open loop,
overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled bythe
internal protection unit. By means of the internal precise peak current limitation, the dimension of the transformer and the secondary diode can
be sized lower which leads to more cost effective for the overall system.
Product Features
? 650V/800V avalanche rugged CoolMOS?
? Only few external components required
? Input Vcc Undervoltage Lockout
? 67kHz/100kHz switching frequency
? Max duty cycle 72 percent
? Low Power Standby Mode to meet European Commission Requirements
? Thermal Shut Down with Auto Restart
? Overload and Open Loop Protection
? Overvoltage Protection during Auto Restart
? Adjustable Peak Current Limitation via external resistor
? Overall tolerance of Current Limiting < ±5 percent
? Internal Leading Edge Blanking
? User defined Soft Start
? Soft driving for low EMI
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ICE2A265 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switches | |
| Mfr | Infineon Technologies |
| Series | CoolSET?F2 |
| Package | Tube |
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 13.5 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 21V |
| Duty Cycle | 0.72 |
| Frequency - Switching | 100kHz |
| Power (Watts) | 52 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | PG-DIP-8 |
| Mounting Type | Through Hole |
| Base Product Number | ICE2A265 |

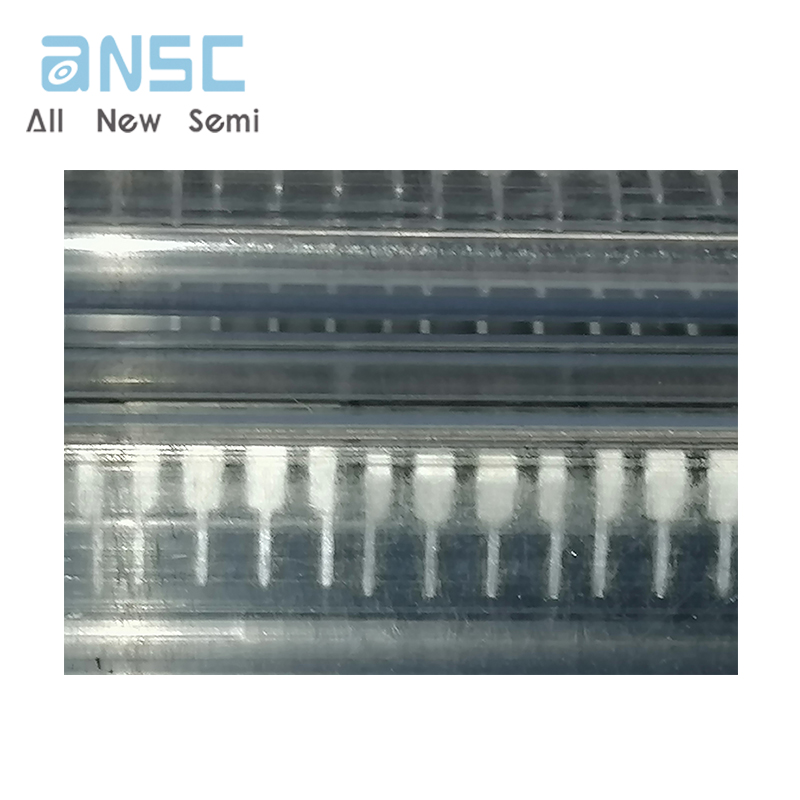

Actual product photos

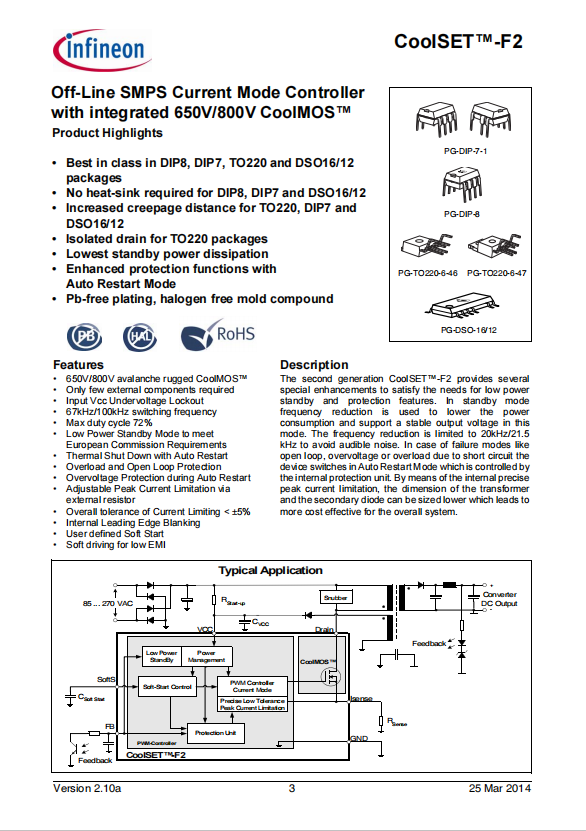

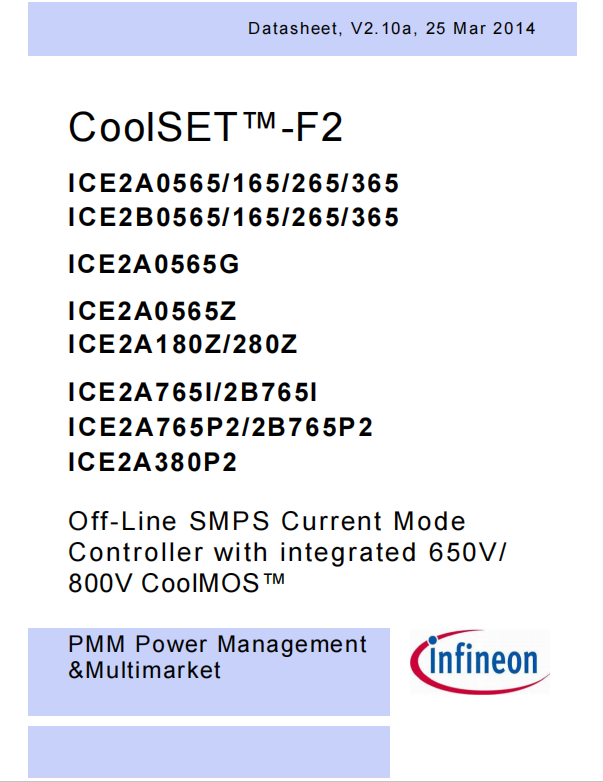

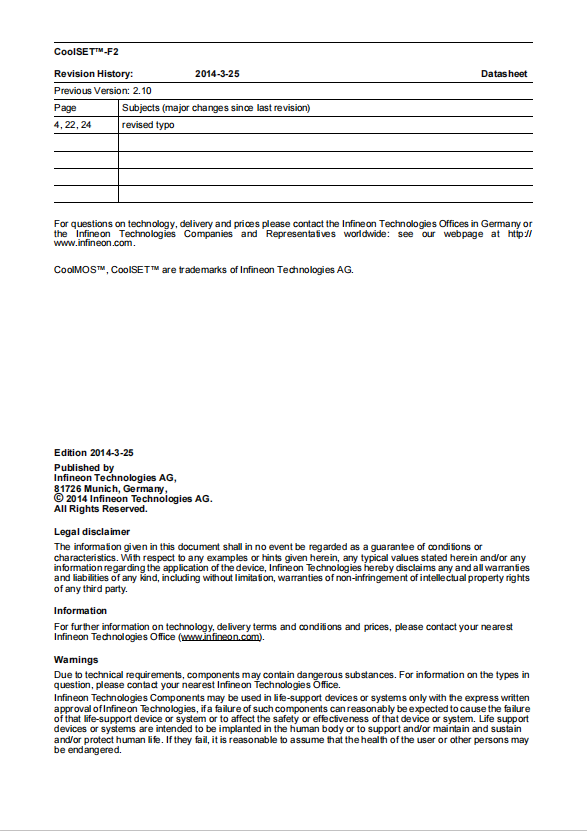

Product Data Book：
For more product information, please download the PDF
