Product Features
? Low Voltage and Standard Voltage Operation
– 5.0 (VCC = 4.5V to 5.5V)
– 2.7 (VCC = 2.7V to 5.5V)
– 2.5 (VCC = 2.5V to 5.5V)
– 1.8 (VCC = 1.8V to 5.5V)
? Internally Organized 2048 x 8 (16K)
? 2-Wire Serial Interface
? Schmitt Trigger, Filtered Inputs for Noise Suppression
? Bidirectional Data Transfer Protocol
? 100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility
? Write Protect Pin for Hardware Data Protection
? Cascadable Feature Allows for Extended Densities
? 16-Byte Page Write Mode
? Partial Page Writes Are Allowed
? Self-Timed Write Cycle (10 ms max)
? High Reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years
– ESD Protection: >3,000V
? Automotive Grade and Extended Temperature Devices Available
? 8-Pin JEDEC SOIC and 8-Pin PDIP Packages
Product Description
The AT24C164 provides 16,384 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 2048 words of 8 bits each. The device’s cascadable feature allows up to eight devices to share a common 2-wire bus. The
device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C164 is available in space saving 8-pin PDIP and 8-pin SOIC packages and is accessed via a 2-wire serial
interface. In addition, this device is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V), 2.5V (2.5V to 5.5V) and 1.8V (1.8V to 5.5V) versions.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AT24C164-10SI-2.7 |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Original |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 16Kbit |
| Memory Organization | 2K x 8 |
| Memory Interface | I2C |
| Clock Frequency | 400 kHz |
| Write Cycle Time - Word, Page | 10ms |
| Access Time | 900 ns |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AT24C164 |

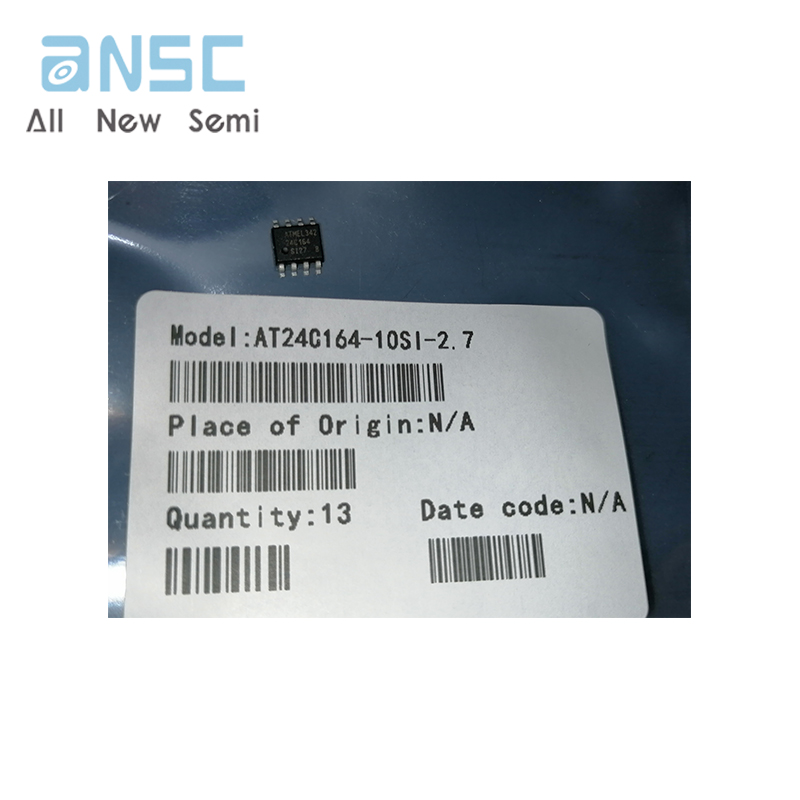

Actual product photos

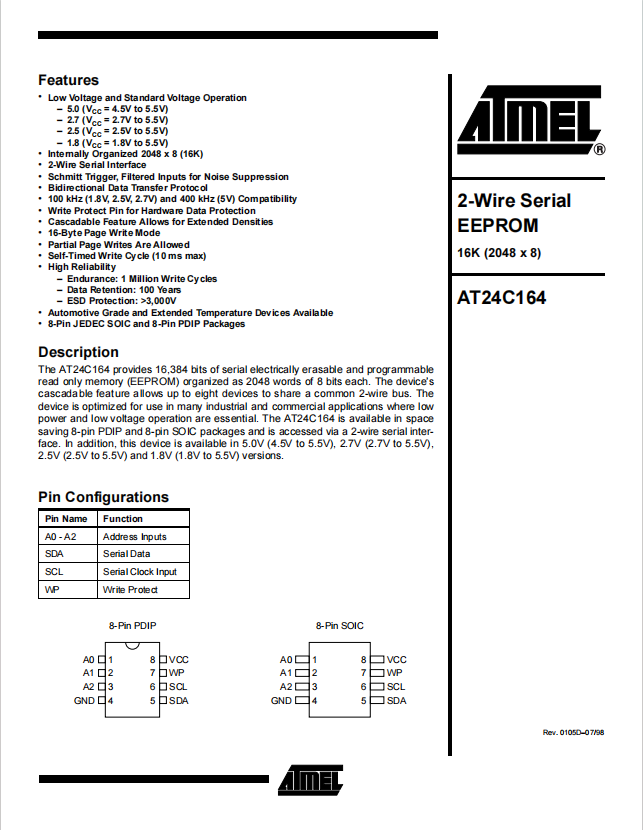

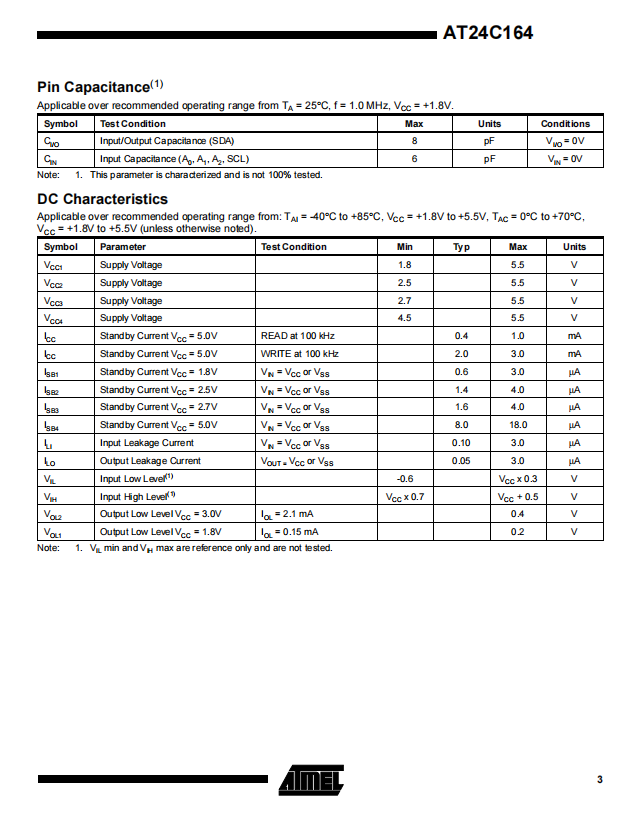

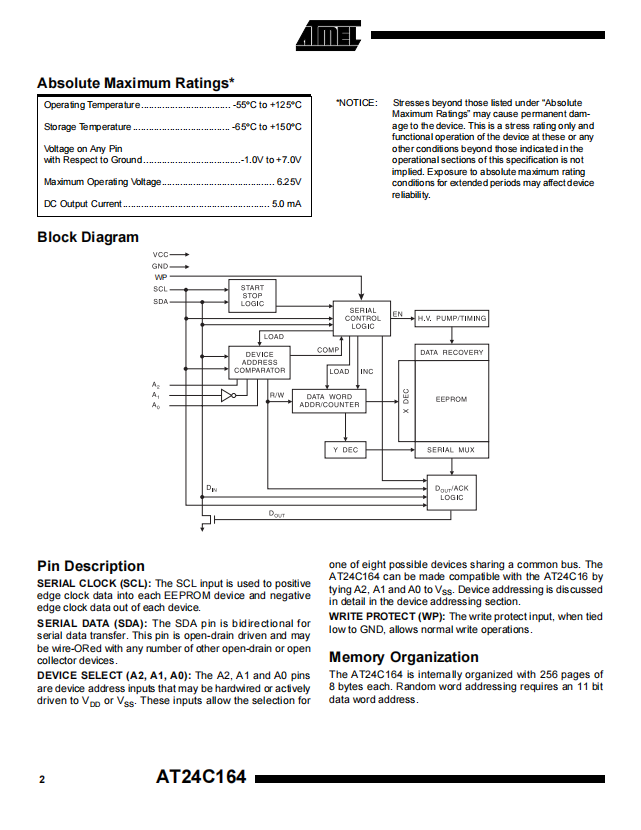

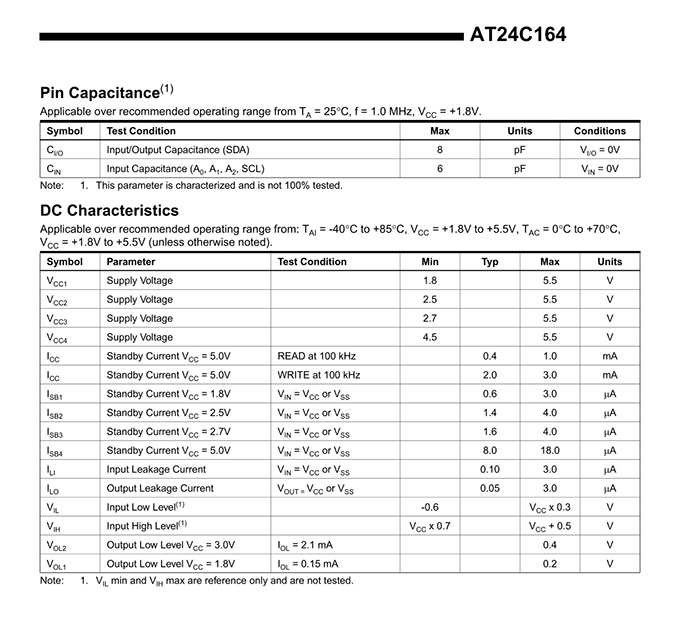

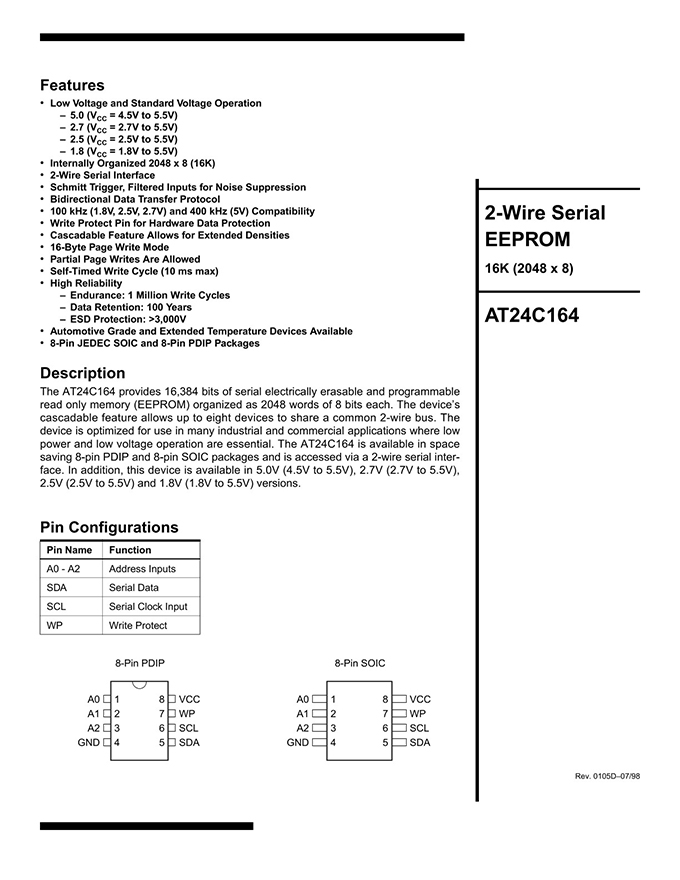

Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
