One stop electronic component supply CY62138FV30LL-45ZXI 2-Mbit (256 K x 8) Static RAM Automatic power down when deselected

CY62138FV30LL-45ZXI

Model:CY62138FV30LL-45ZXI

Manufacturer:Infineon

Package:32-TSOP I

詳情

Product Descriptions


The CY62138FV30 is a high performance CMOS static RAM organized as 256K words by 8 bits. This device features advanced circuit design to provide ultra low active current. This is ideal for providing More Battery Life? (MoBL?) in portable

applications such as cellular telephones. The device also has an automatic power down feature that significantly reduces power consumption. Place the device into standby mode reducing power consumption when deselected (CE1 HIGH or CE2 LOW).


To write to the device, take Chip Enable (CE1 LOW and CE2 HIGH) and Write Enable (WE) inputs LOW. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins (A0 through A17).


To read from the device, take Chip Enable (CE1 LOW and CE2 HIGH) and Output Enable (OE) LOW while forcing Write Enable (WE) HIGH. Under these conditions, the contents of the memory location specified by the address pins appear on the I/O pins.


The eight input and output pins (I/O0 through I/O7) are placed in a high impedance state when the device is deselected (CE1 HIGH or CE2 LOW), the outputs are disabled (OE HIGH), or during a write operation (CE1 LOW and CE2 HIGH and WE LOW).


Product Features


■ Very high-speed: 45 ns

■ Temperature ranges

? Industrial: –40 °C to 85 °C

? Automotive-A: –40 °C to 85 °C

■ Wide voltage range: 2.20 V to 3.60 V

■ Pin compatible with CY62138CV25/30/33

■ Ultra low standby power

? Typical standby current: 1 ?A

? Maximum standby current: 5 ?A

■ Ultra low active power

? Typical active current: 1.6 mA at f = 1 MHz

■ Easy memory expansion with CE1, CE2, and OE Features

■ Automatic power down when deselected

■ Complementary metal oxide semiconductor (CMOS) for Optimum speed and power

■ Offered in Pb-free 36-ball VFBGA, 32-pin TSOP II, 32-pin SOIC, 32-pin TSOP I and 32-pin STSOP packages


Specifications


AttributeAttribute value
ANSM-Part#ANSM-CY62138FV30LL-45ZXI
CategoryIntegrated Circuits (ICs)
Memory
Memory
MfrInfineon Technologies
SeriesMoBL?
PackageTray
Product StatusActive
DigiKey ProgrammableNot Verified
Memory TypeVolatile
Memory FormatSRAM
TechnologySRAM - Asynchronous
Memory Size2Mbit
Memory Organization256K x 8
Memory InterfaceParallel
Write Cycle Time - Word, Page45ns
Access Time45 ns
Voltage - Supply2.2V ~ 3.6V
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case32-TFSOP (0.724", 18.40mm Width)
Supplier Device Package32-TSOP I
Base Product NumberCY62138

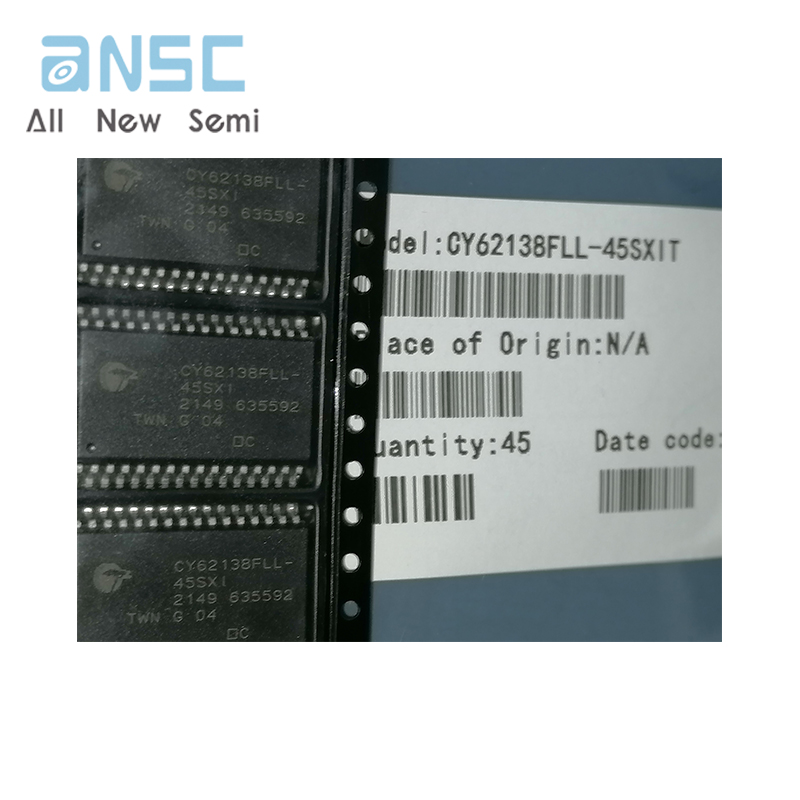

Actual product photos


CY62138FV30LL-45ZXI

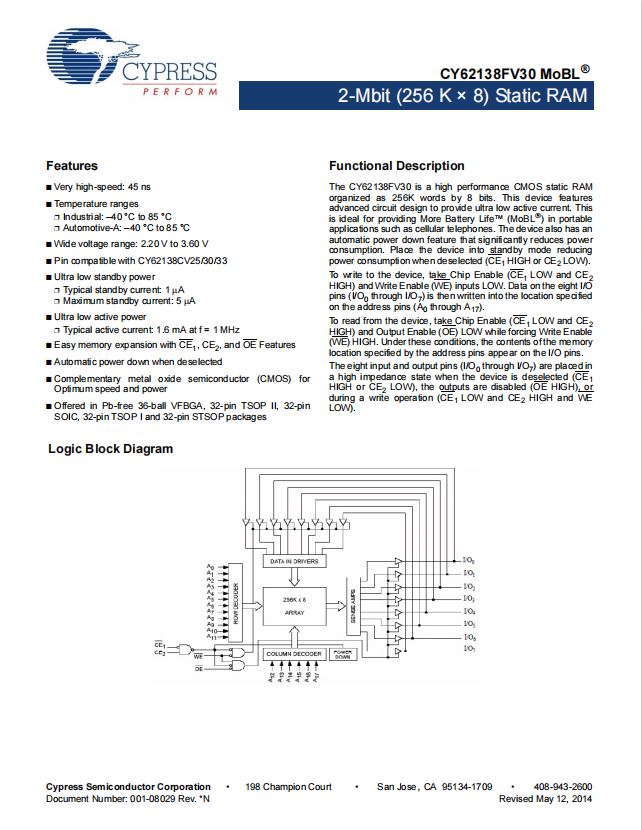

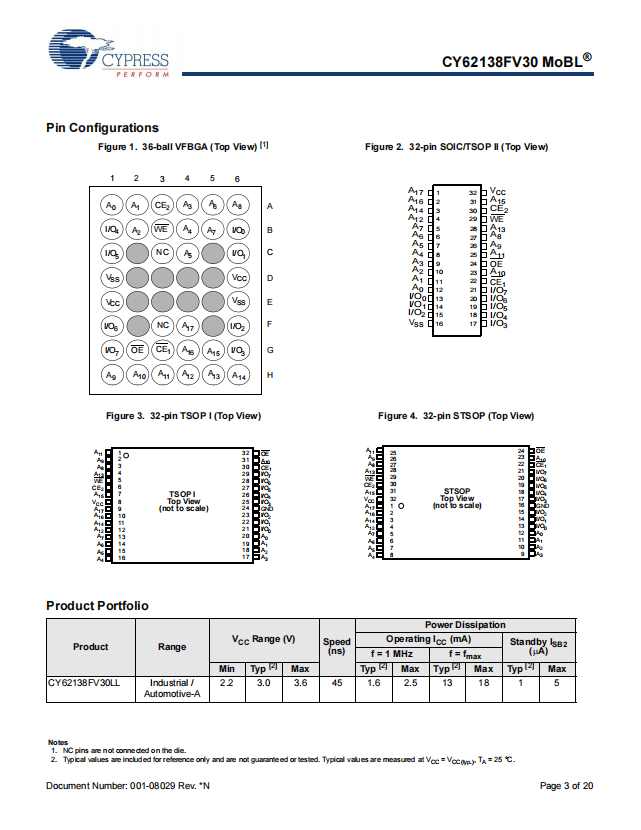

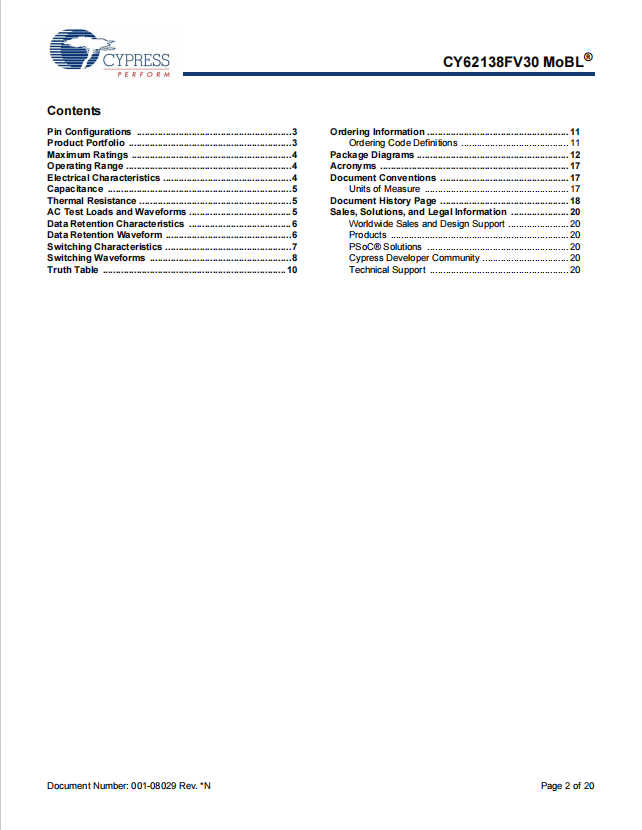

Product Data Book:



For more product information, please download the PDF
