Product Descriptions

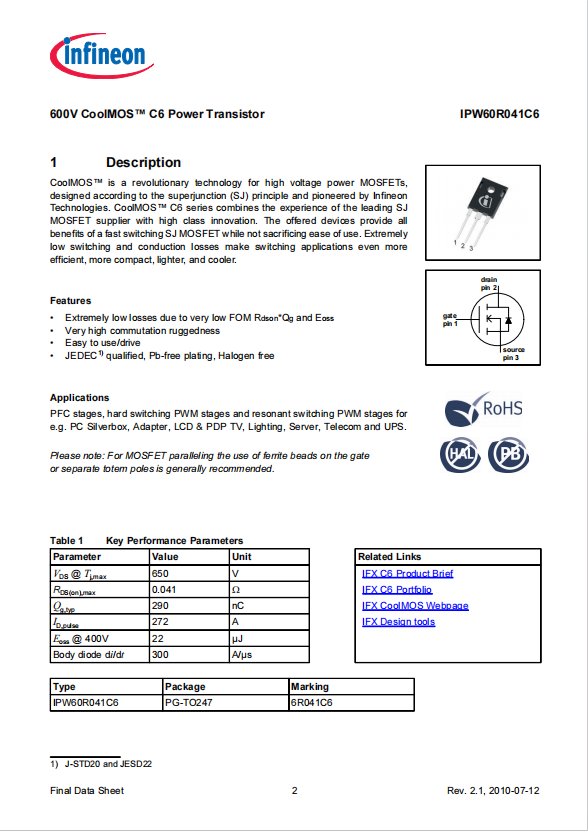

CoolMOSTm is a revolutionary technology for high voltage power MOSFETsdesigned according to the superjunction (SJ) principle and pioneered . CoolMOSTM C6 series combines the experience of the leading SJMOSFET supplier with high class innovation. The offered devices provide albenefits of a fast switching SJ MOSFET while not sacrificing ease of use. Extremelylow switching and conduction losses make switching applications even moreefficient, more compact, lighter, and cooler.
Product Features
Extremely low losses due to very low FOM Rdson*Qg and Eoss
Very high commutation ruggedness
Easy to use/drive
JEDEC 1) qualified, Pb-free plating, Halogen free
Product Applications
PFC stages, hard switching PWM stages and resonant switching PWM stages fore.g. PC Silverbox, Adapter, LCD & PDP TV, Lighting, Server,
Telecom and UPS.
Please note: For MOSFET paralleling the use of ferrite beads on the gateor separate totem poles is generally recommended.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IPW60R041C6 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr |
/ |
| Series | CoolMOS? |
| Package | Tube |
| Product Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 77.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 41mOhm @ 44.4A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 2.96mA |
| Gate Charge (Qg) (Max) @ Vgs | 290 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6530 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 481W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO247-3-1 |
| Package / Case | TO-247-3 |
| Base Product Number | IPW60R041 |
