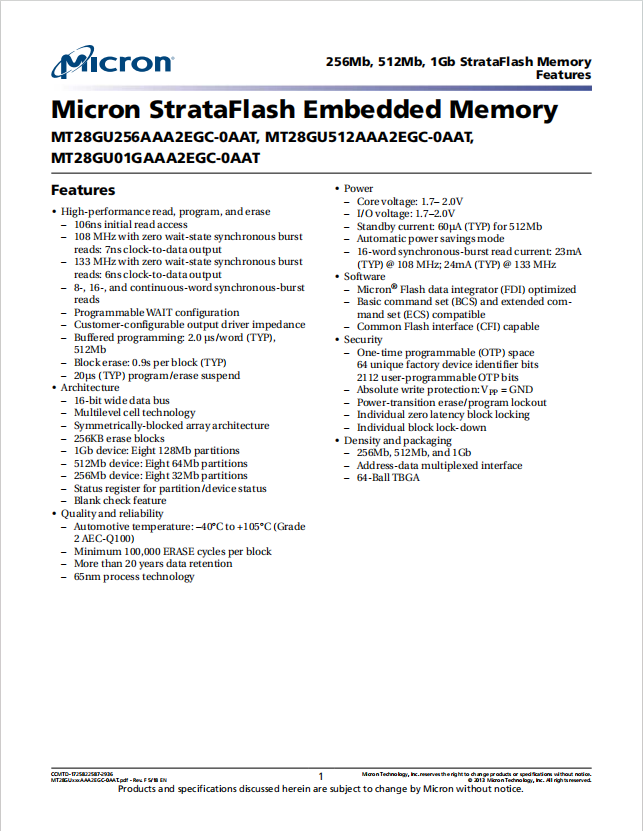

Product Benefits and Features

? High-performance read, program, and erase

– 106ns initial read access

– 108 MHz with zero wait-state synchronous burst reads: 7ns clock-to-data output

– 133 MHz with zero wait-state synchronous burst reads: 6ns clock-to-data output

– 8-, 16-, and continuous-word synchronous-burst reads

– Programmable WAIT configuration

– Customer-configurable output driver impedance

– Buffered programming: 2.0 μs/word (TYP), 512Mb

– Block erase: 0.9s per block (TYP)

– 20μs (TYP) program/erase suspend

? Architecture

– 16-bit wide data bus

– Multilevel cell technology

– Symmetrically-blocked array architecture

– 256KB erase blocks

– 1Gb device: Eight 128Mb partitions

– 512Mb device: Eight 64Mb partitions

– 256Mb device: Eight 32Mb partitions

– Status register for partition/device status

– Blank check feature

? Quality and reliability

– Automotive temperature: –40°C to +105°C (Grade 2 AEC-Q100)

– Minimum 100,000 ERASE cycles per block

– More than 20 years data retention

– 65nm process technology

? Power

– Core voltage: 1.7– 2.0V

– I/O voltage: 1.7–2.0V

– Standby current: 60μA (TYP) for 512Mb

– Automatic power savings mode

– 16-word synchronous-burst read current: 23mA (TYP) @ 108 MHz; 24mA (TYP) @ 133 MHz

? Software

– Micron? Flash data integrator (FDI) optimized

– Basic command set (BCS) and extended command set (ECS) compatible

– Common Flash interface (CFI) capable

? Security

– One-time programmable (OTP) space 64 unique factory device identifier bits 2112 user-programmable OTP bits

– Absolute write protection: VPP = GND

– Power-transition erase/program lockout

– Individual zero latency block locking

– Individual block lock-down

? Density and packaging

– 256Mb, 512Mb, and 1Gb

– Address-data multiplexed interface

– 64-Ball TBGA

Specifications

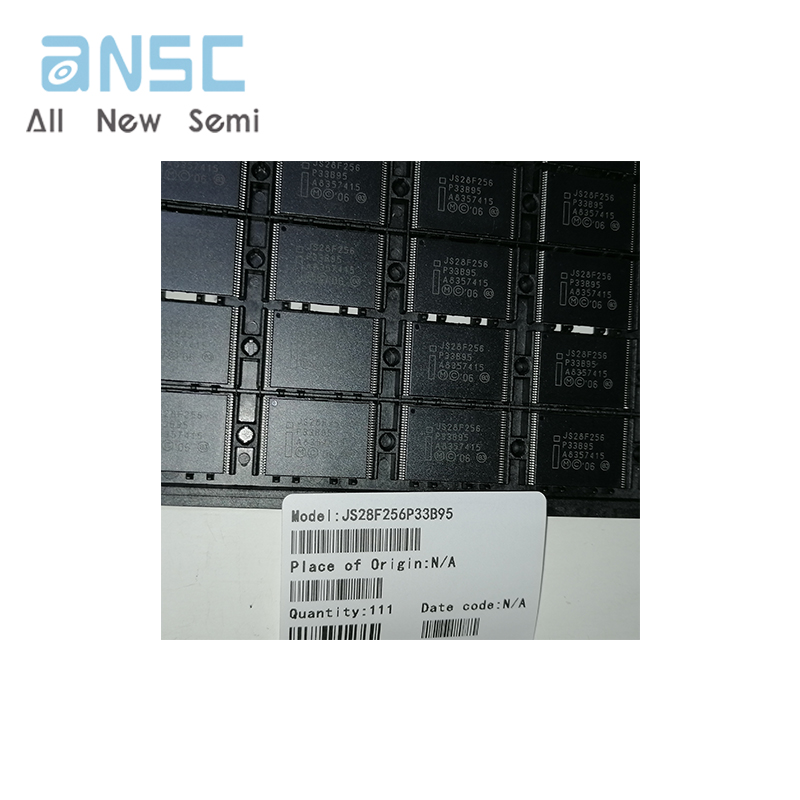

Actual product photos

Product Data Book：

For more product information, please download the PDF

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
