Product Benefits and Features
. OUTPUT CURRENT TO 1 A
. OPERATES AT LOW VOLTAGES
. SINGLE OR SPLIT SUPPLY
. LARGE COMMON-MODE AND DIFFERENTIAL MODE RANGE
. LOW INPUT OFFSET VOLTAGE
. GROUND COMPATIBLE INPUTS
. LOW SATURATION VOLTAGE
. THERMAL SHUTDOWN
. CLAMP DIODE
Product DESCRIPTION
The L2726 is a monolithic integrated circuit in SO-20 package intended for use as power operational amplifiers in a wide range of applications
including servo amplifiers and power supplies.
It is particularly indicated for driving inductive loads, as motor and finds applications in compact-disc VCR automative, etc.
The high gain and high output power capability provide superior performance whatever an operational amplifier/power booster combination
is required.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-L2726 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 2V/μs |
| Gain Bandwidth Product | 1.2 MHz |
| Current - Input Bias | 200 nA |
| Voltage - Input Offset | 10 mV |
| Current - Supply | 10mA |
| Current - Output / Channel | 1.5 A |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 28 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| Base Product Number | L2726 |

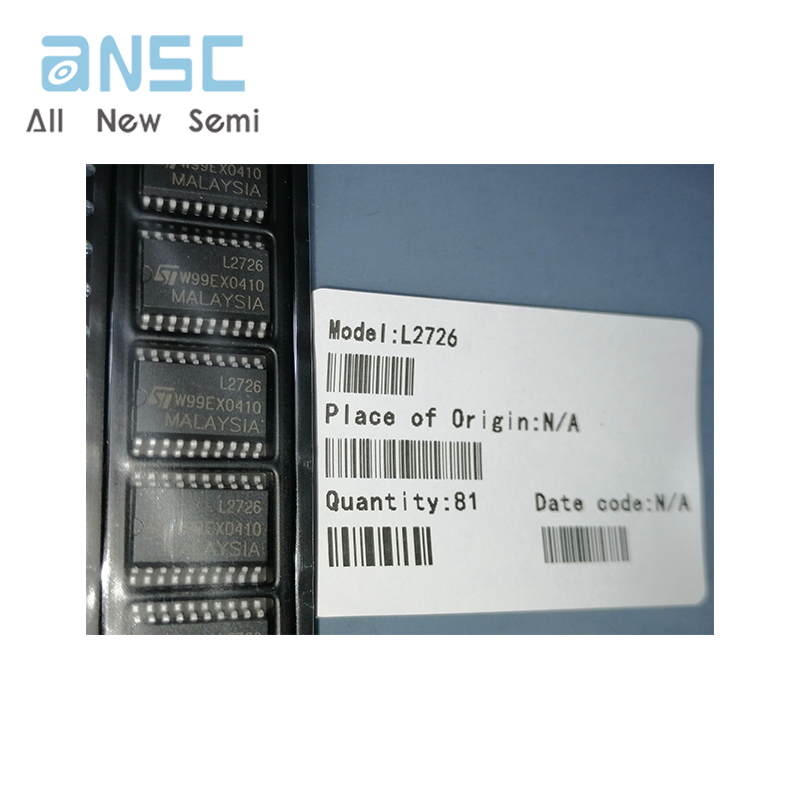

Actual product photos

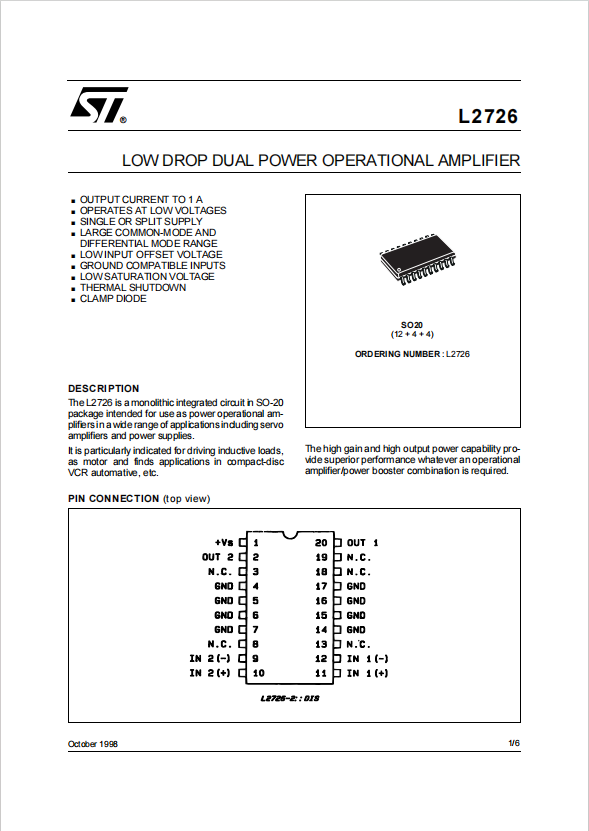

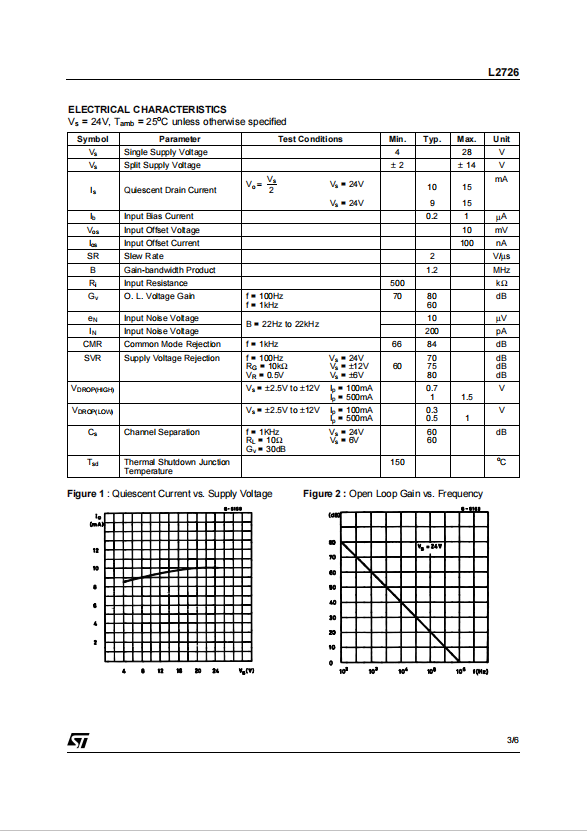

Product Data Book：
For more product information, please download the PDF
