Product Descriptions
Maxim’s MAX312L/MAX313L/MAX314L analog switches feature low on-resistance (10Ω max) and 1.5Ω onresistance matching between channels. These switches are +3V logic compatible when powered from ±15V or +12V supplies. The switches
conduct equally well in either direction, and offer low leakage over temperature (2.5nA at +85°C).
The MAX312L/MAX313L/MAX314L are quad, singlepole/single-throw (SPST) analog switches. The MAX312L is normally closed (NC), and the MAX313L is normally open (NO). The MAX314L has two NC switches and two NO switches. All three devices
operate from a single+4.5V to +36V supply or from dual ±4.5V to ±20V, and are available in 16-pin TSSOP, SO, and DIP packages.
Product Applications
Test Equipment
Communication Systems
PBX, PABX Systems
Audio Signal Routing
Avionics
Sample-and-Hold Circuits
Data-Acquisition Systems
xDSL Modems
Product Benefits and Features
? +3V Logic-Compatible Digital Inputs
VIH = 2.0V
VIL = 0.8V
? Pin Compatible with MAX312/MAX313/MAX314 and DG411/DG412/DG413
? Low On-Resistance (10Ω max)
? Guaranteed RON Match Between Channels (1.5Ω max)
? Guaranteed RON Flatness over Specified Signal Range (2Ω max)
? Crosstalk > 96dB at 20kHz
? Single-Supply Operation: +4.5V to +36V Dual-Supply Operation: ±4.5V to ±20V
? Rail-to-Rail Signal Handling
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX312LCSE |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 0.042361111 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 225ns, 185ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF, 15pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | MAX312 |

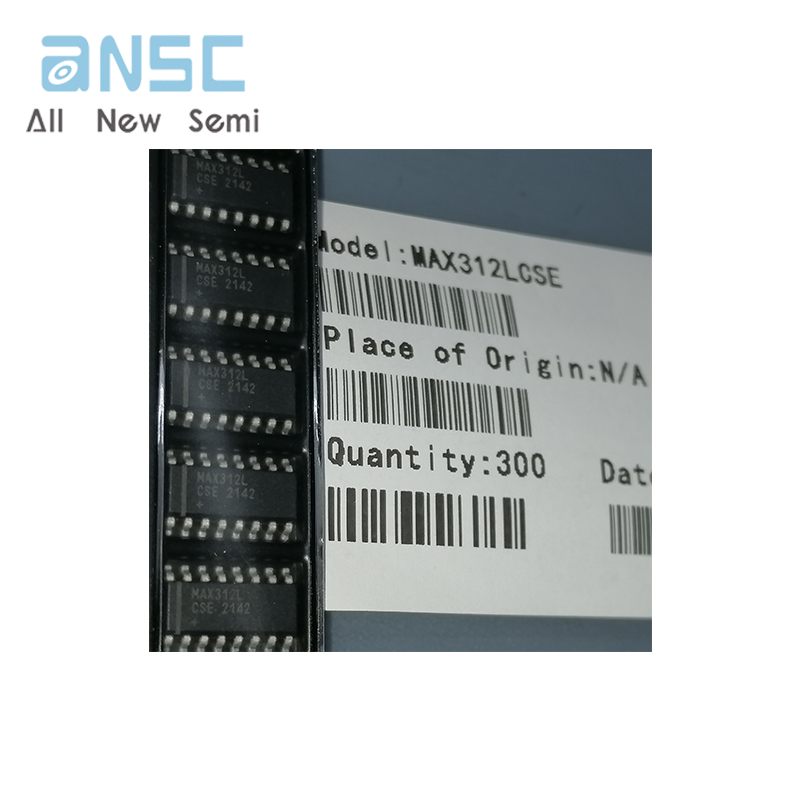

Actual product photos

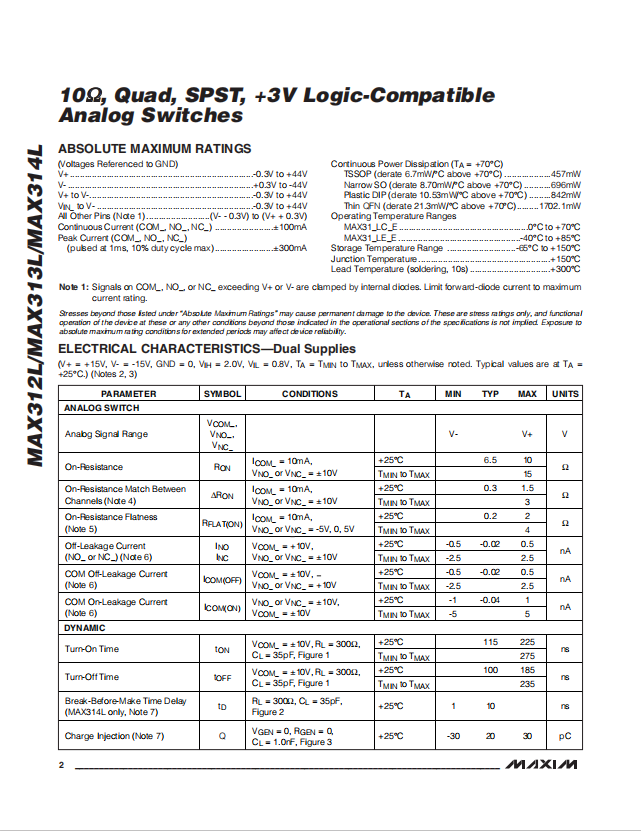

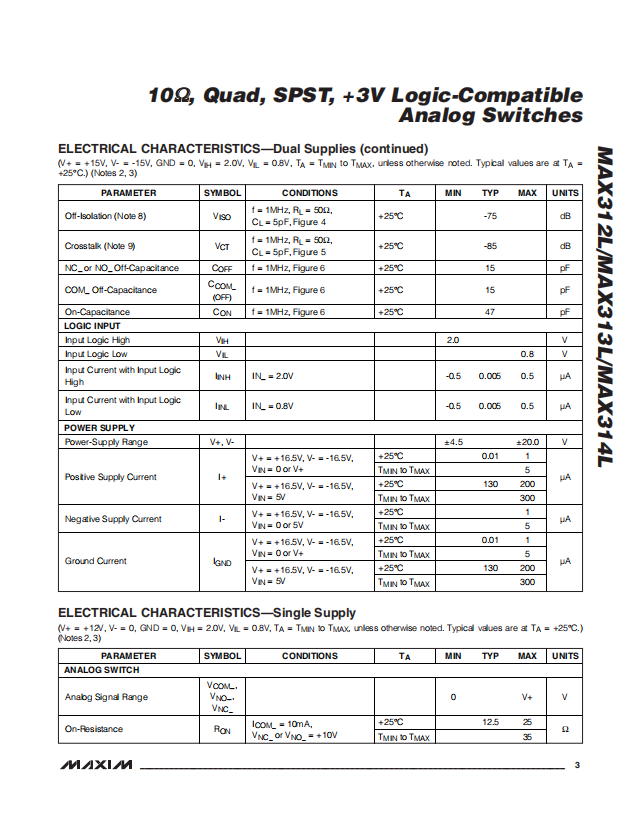

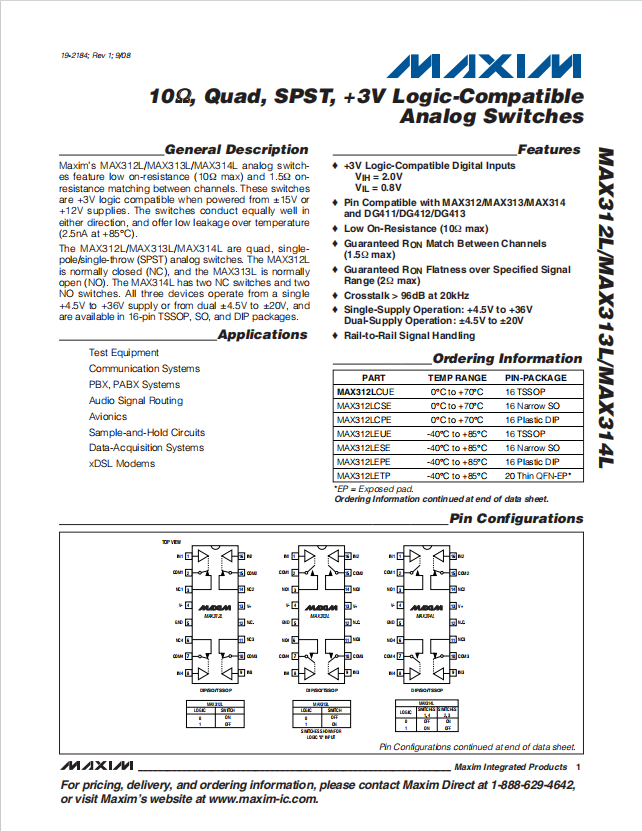

Product Data Book：
For more product information, please download the PDF
