Product Descriptions

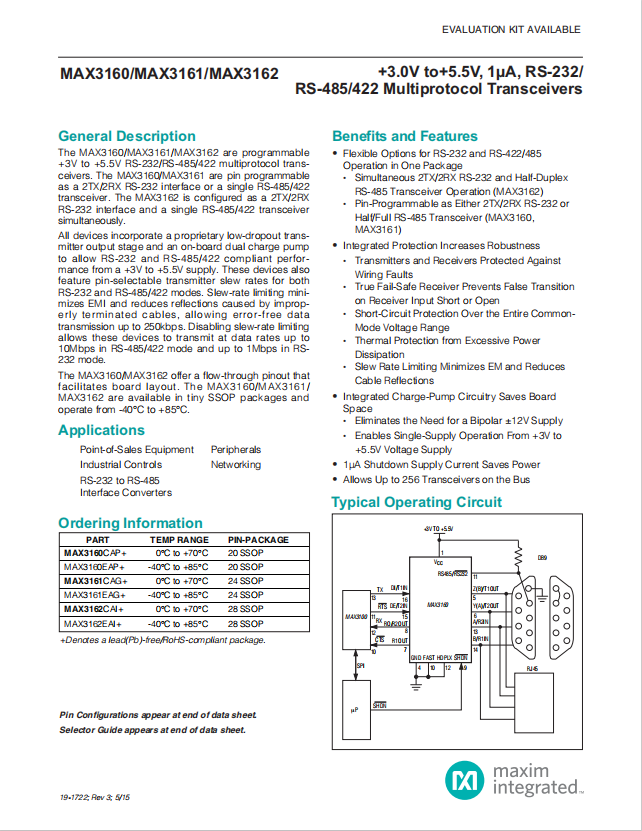

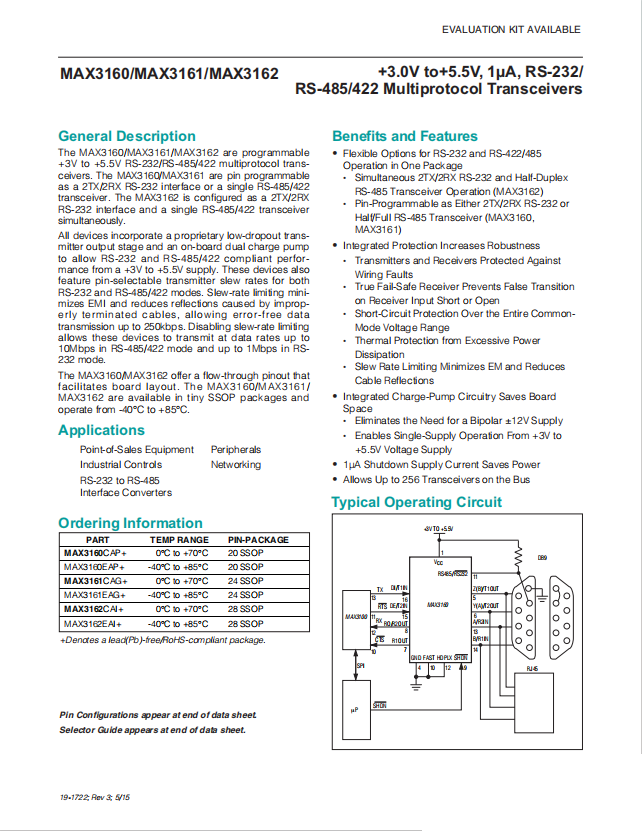

The MAX3160/MAX3161/MAX3162 are programmable +3V to +5.5V RS-232/RS-485/422 multiprotocol transceivers. The MAX3160/MAX3161 are pin programmable as a 2TX/2RX RS-232 interface or a single RS-485/422 transceiver. The MAX3162 is configured as a 2TX/2RX RS-232 interface and a single RS-485/422 transceiver simultaneously.

All devices incorporate a proprietary low-dropout transmitter output stage and an on-board dual charge pump to allow RS-232 and RS-485/422 compliant performance from a +3V to +5.5V supply. These devices also feature pin-selectable transmitter slew rates for both RS-232 and RS-485/422 modes. Slew-rate limiting minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission up to 250kbps. Disabling slew-rate limiting

allows these devices to transmit at data rates up to 10Mbps in RS-485/422 mode and up to 1Mbps in RS-232 mode.

The MAX3160/MAX3162 offer a flow-through pinout that facilitates board layout. The MAX3160/MAX3161/ MAX3162 are available in tiny SSOP packages and operate from -40°C to +85°C.

Product Applications

Point-of-Sales Equipment

Peripherals

Industrial Controls

Networking

RS-232 to RS-485

Interface Converters

Product Benefits and Features

? Flexible Options for RS-232 and RS-422/485 Operation in One Package

? Simultaneous 2TX/2RX RS-232 and Half-Duplex RS-485 Transceiver Operation (MAX3162)

? Pin-Programmable as Either 2TX/2RX RS-232 or Half/Full RS-485 Transceiver (MAX3160, MAX3161)

? Integrated Protection Increases Robustness

? Transmitters and Receivers Protected Against Wiring Faults

? True Fail-Safe Receiver Prevents False Transition on Receiver Input Short or Open

? Short-Circuit Protection Over the Entire CommonMode Voltage Range

? Thermal Protection from Excessive Power Dissipation

? Slew Rate Limiting Minimizes EM and Reduces Cable Reflections

? Integrated Charge-Pump Circuitry Saves Board Space

? Eliminates the Need for a Bipolar ±12V Supply

? Enables Single-Supply Operation From +3V to +5.5V Voltage Supply

? 1μA Shutdown Supply Current Saves Power

? Allows Up to 256 Transceivers on the Bus

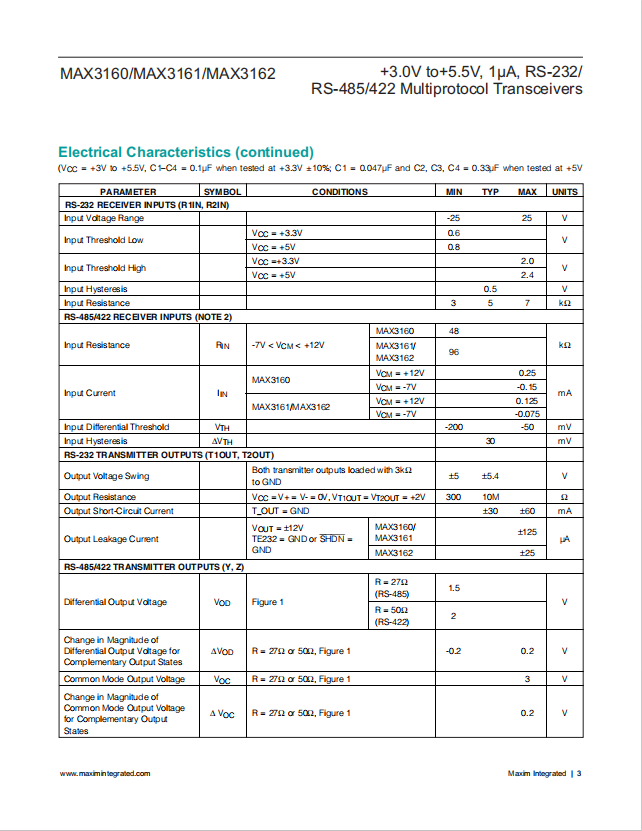

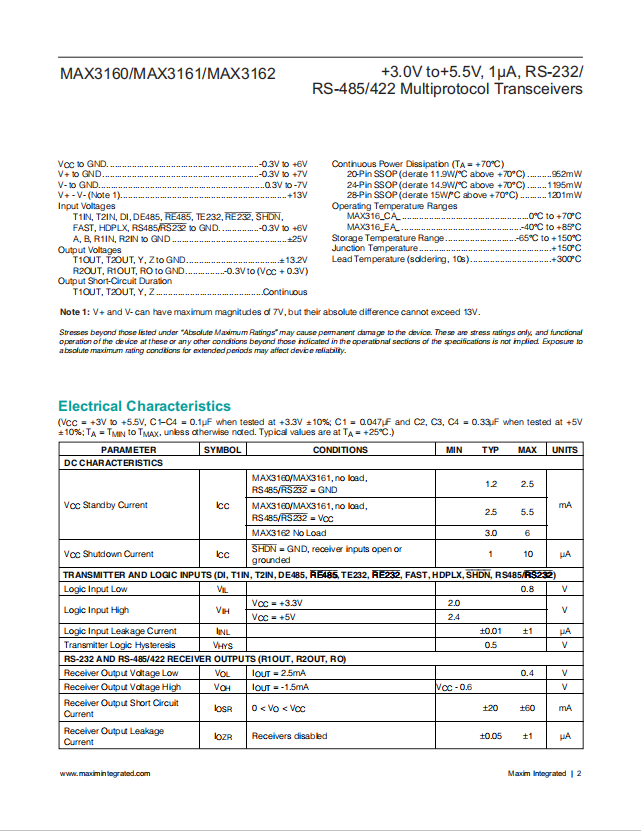

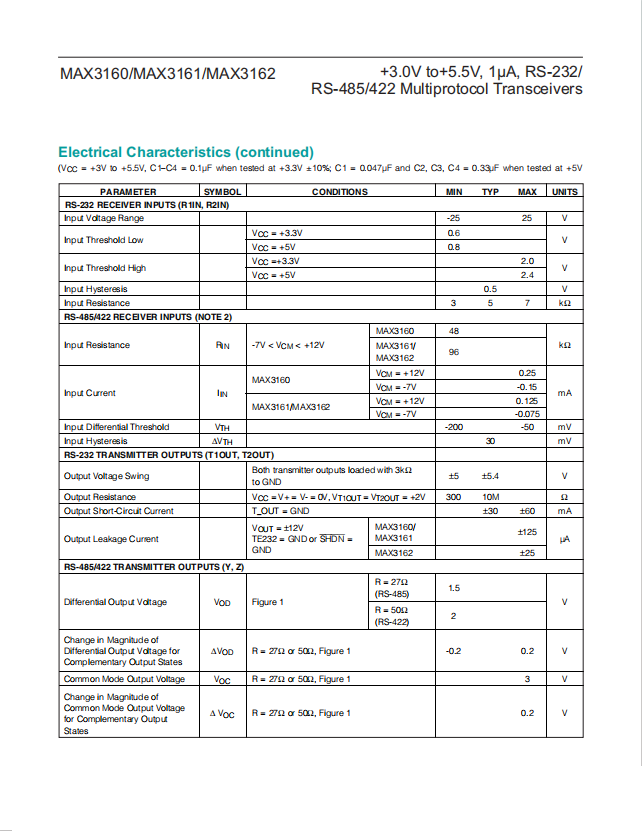

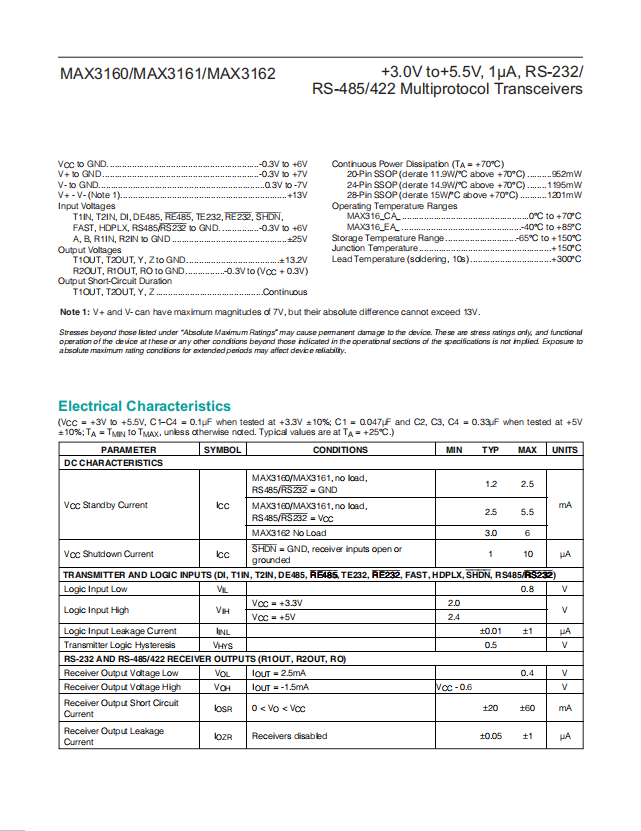

Specifications

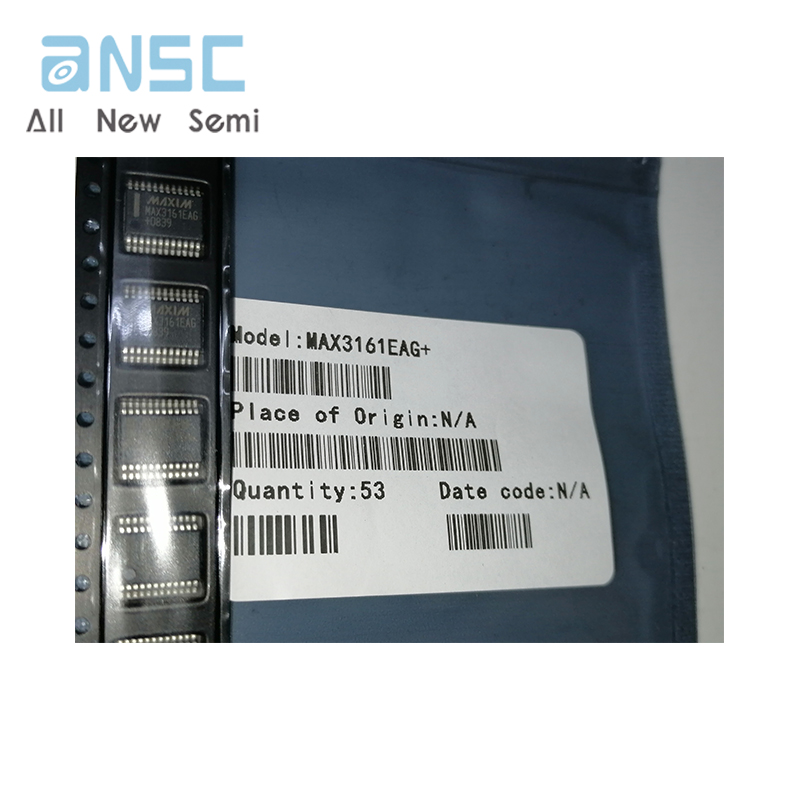

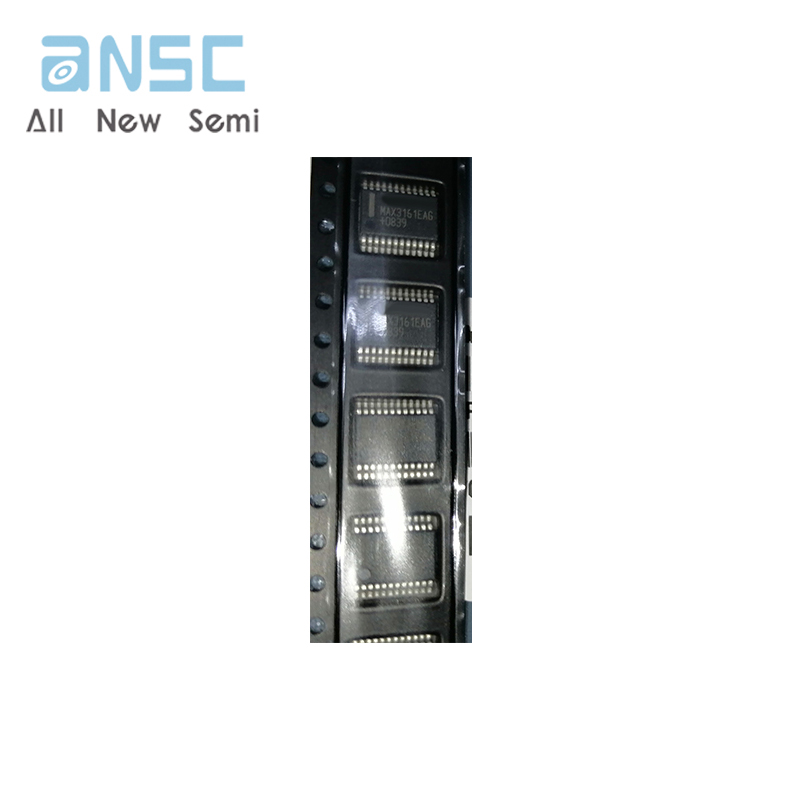

Actual product photos

Product Data Book：

For more product information, please download the PDF
