Product Features

? Core: Arm? 32-bit Cortex?-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from Flash

memory, frequency up to 168 MHz, memory protection unit, 210 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

? Memories

– Up to 1 Mbyte of Flash memory

– Up to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data RAM

– 512 bytes of OTP memory

– Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories

? LCD parallel interface, 8080/6800 modes

? Clock, reset and supply management

– 1.8 V to 3.6 V application supply and I/Os

– POR, PDR, PVD and BOR

– 4-to-26 MHz crystal oscillator

– Internal 16 MHz factory-trimmed RC (1 percent accuracy)

– 32 kHz oscillator for RTC with calibration

– Internal 32 kHz RC with calibration

? Low-power operation

– Sleep, Stop and Standby modes

– VBAT supply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM

? 3×12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode

? 2×12-bit D/A converters

? General-purpose DMA: 16-stream DMA controller with FIFOs and burst support

? Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature

(incremental) encoder input

? Debug mode

– Serial wire debug (SWD) & JTAG interfaces

– Cortex-M4 Embedded Trace Macrocell?

? Up to 140 I/O ports with interrupt capability

– Up to 136 fast I/Os up to 84 MHz

– Up to 138 5 V-tolerant I/Os

? Up to 15 communication interfaces

– Up to 3 × I2C interfaces (SMBus/PMBus)

– Up to 4 USARTs/2 UARTs (10.5 Mbit/s, ISO 7816 interface, LIN, IrDA, modem control)

– Up to 3 SPIs (42 Mbits/s), 2 with muxed full-duplex I2S to achieve audio class accuracy via internal audio PLL or external clock

– 2 × CAN interfaces (2.0B Active)

– SDIO interface

? Advanced connectivity

– USB 2.0 full-speed device/host/OTG controller with on-chip PHY

– USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI

– 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII

Specifications

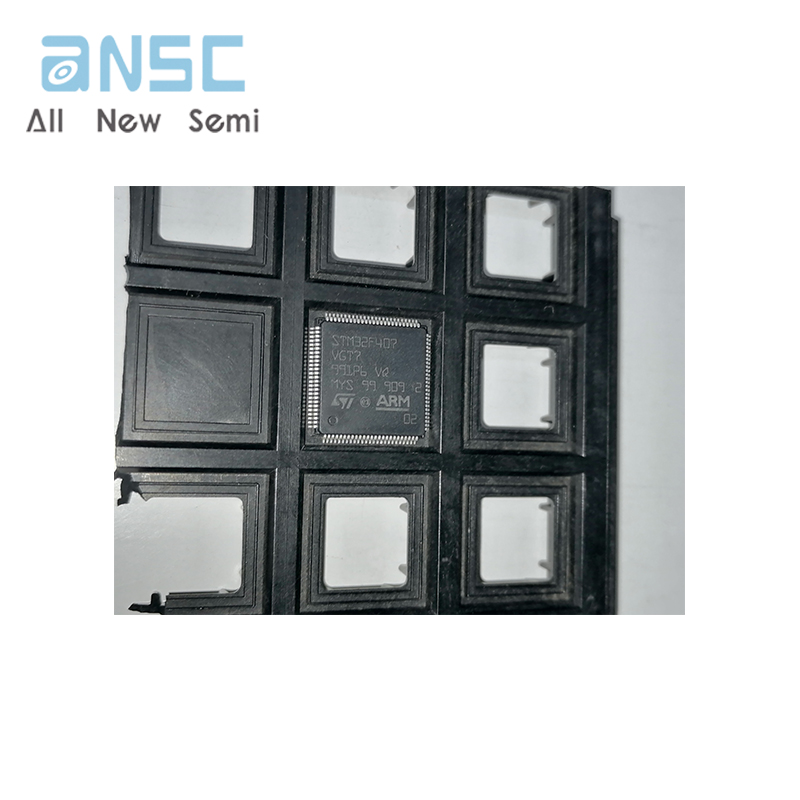

Actual product photos

Product Data Book：

For more product information, please download the PDF
