Product Features

(1) Inverter logic type (Totem pole output)

(2) Package: SDIP6

(3) Operating temperature: -40 to 125

(4) Supply voltage: 2.7 to 5.5 V

(5) Data transfer rate: 20 MBd (typ.) (NRZ)

(6) Threshold input current: 3.5 mA (max)

(7) Supply current: 3 mA (max)

(8) Common-mode transient immunity: ±20 kV/μs (min)

(9) Isolation voltage: 5000 Vrms (min)

(10) Safety standards

? Factory Networking

? High-Speed Digital Interfacing for Instrumentation and Control Devices

? Plasma Display Panels (PDPs)

The Toshiba TLP2766 consists of a high-output GaA?As light-emitting diode coupled with a high-speed photodiode-transistor chip. The

TLP2766 guarantees operation at up to 125 and on supplies from 2.7 V to 5.5 V. It is offered in the SDIP6 package.

The TLP2766 has an internal Faraday shield that provides a guaranteed commonmode transient immunity of ±20 kV/μs.

Attribute	Attribute value
ANSM-Part#	ANSM-TLP2766F
Category	Isolators
	Optoisolators
	Logic Output Optoisolators
Mfr	/
Series	-
Package	Bulk
Product Status	Obsolete
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/μs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	20MBd
Propagation Delay tpLH / tpHL (Max)	55ns, 55ns
Rise / Fall Time (Typ)	15ns, 15ns
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SDIP Gull Wing
Base Product Number	TLP2766

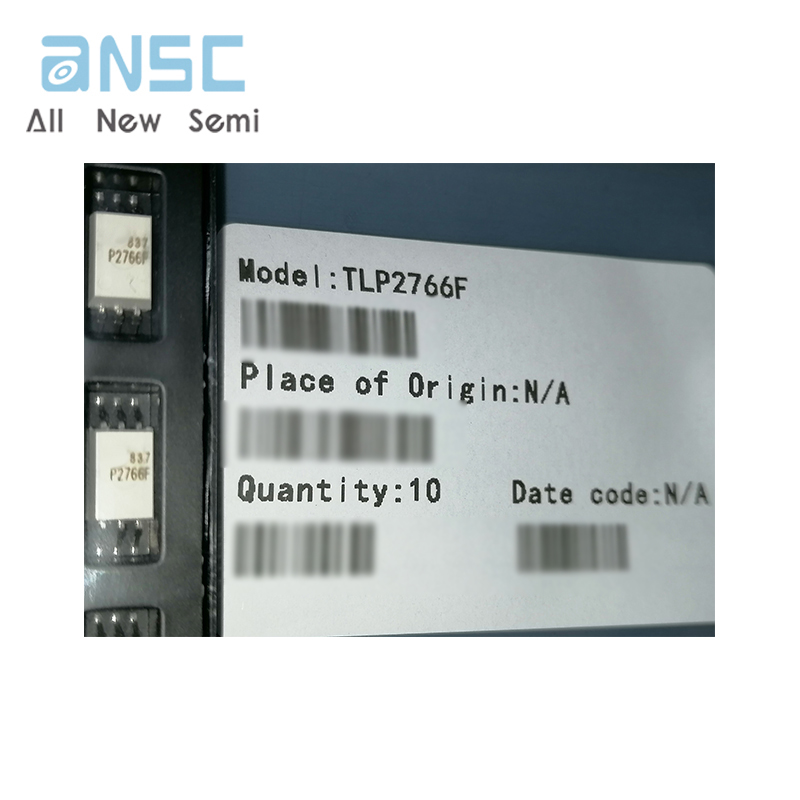

TLP2766F
