Product Description

The ADP2108 is a high efficiency, low quiescent current stepdown dc-to-dc converter manufactured in two different packages. The total

solution requires only three tiny external components. It uses a proprietary, high speed current mode, constant frequency PWM control scheme

for excellent stability and transient response. To ensure the longest battery life in portable applications, the ADP2108 has a power save mode

that reduces the switching frequency under light load conditions.

The ADP2108 runs on input voltages of 2.3 V to 5.5 V, which allows for single lithium or lithium polymer cell, multiple alkaline or NiMH cell,

PCMCIA, USB, and other standard power sources.

The maximum load current of 600 mA is achievable across the  input voltage range.

The ADP2108 is available in fixed output voltages of 3.3 V, 3.0 V, 2.5 V, 2.3 V, 1.82 V, 1.8 V, 1.5 V, 1.3 V, 1.2 V, 1.1 V, and 1.0 V. All  versions include

an internal power switch and synchronous rectifier for minimal external part count and high efficiency. The  ADP2108 has an internal soft start

and is internally compensated.

During logic controlled shutdown, the input is disconnected  from the output and the ADP2108 draws less than 1 μA from the input source.

Other key features include undervoltage lockout to prevent deep battery discharge and soft start to prevent input current overshoot at

startup.

The ADP2108 is available in 5-ball WLCSP and 5-lead TSOT packages. The ADP2109 provides the same features and operations as the ADP2108

and has the additional function of a discharge switch in the WLCSP package.

Product Features

Peak efficiency: 95 PERCENT

3 MHz fixed frequency operation

Typical quiescent current: 18 μA

Maximum load current: 600 mA

Input voltage: 2.3 V to 5.5 V

Uses tiny multilayer inductors and capacitors

Current mode architecture for fast load and line

transient response

100% duty cycle low dropout mode

Internal synchronous rectifier

Internal compensation

Internal soft start

Current overload protection

Thermal shutdown protection

Shutdown supply current: 0.2 μA

Available in

5-ball WLCSP

5-lead TSOT

Supported by ADIsimPower? design tool

Product APPLICATIONS

PDAs and palmtop computers

Wireless handsets

Digital audio, portable media players

Digital cameras, GPS navigation units

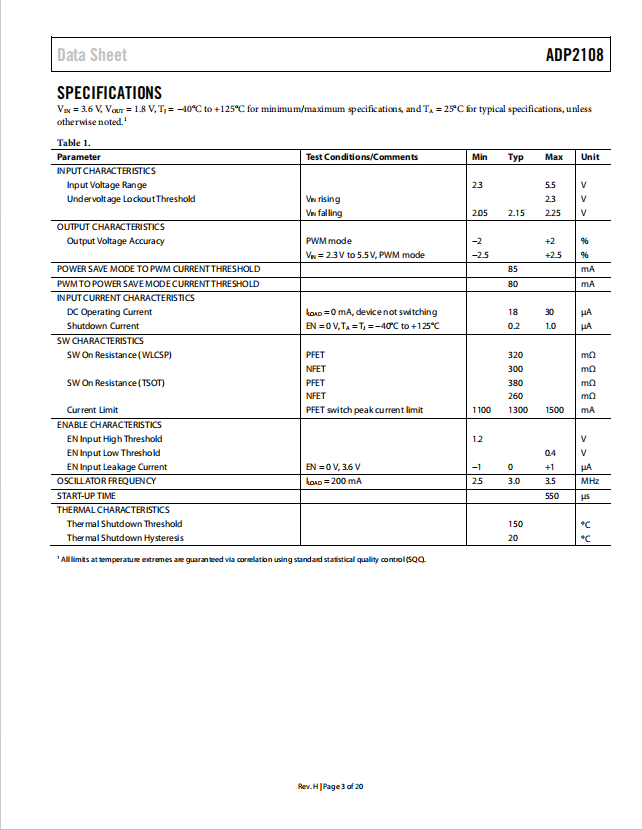

Specifications

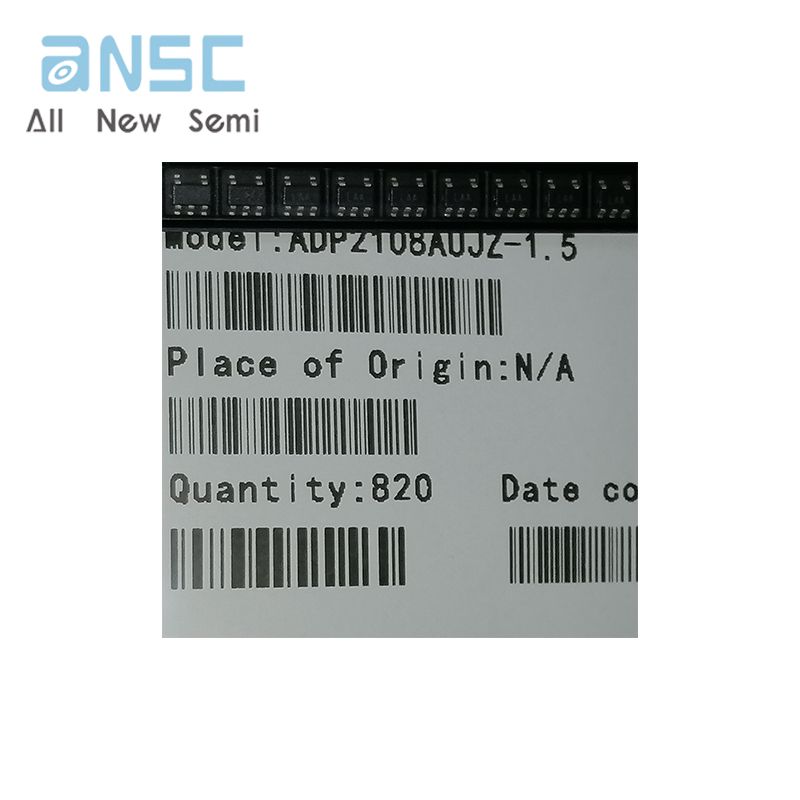

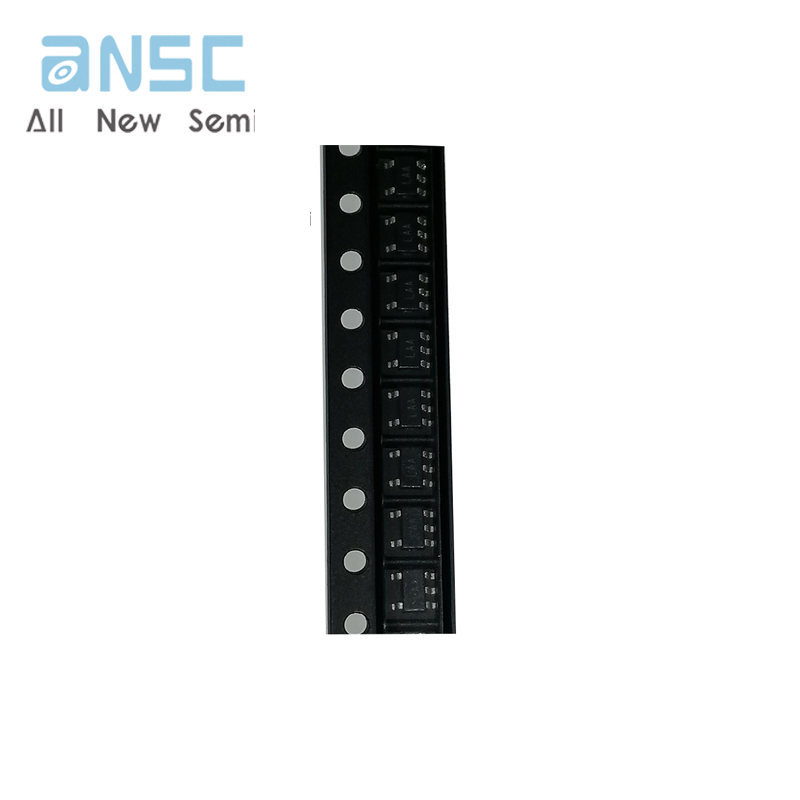

Actual product photos

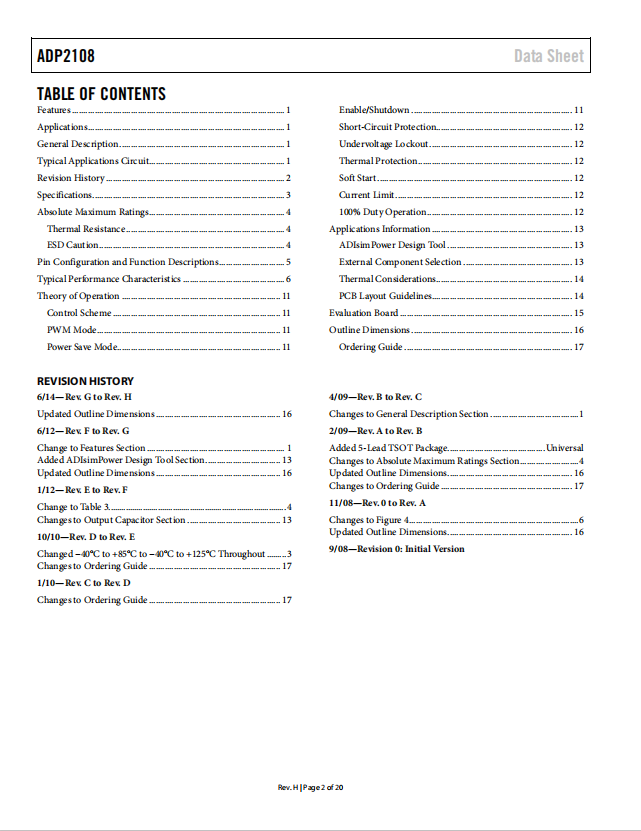

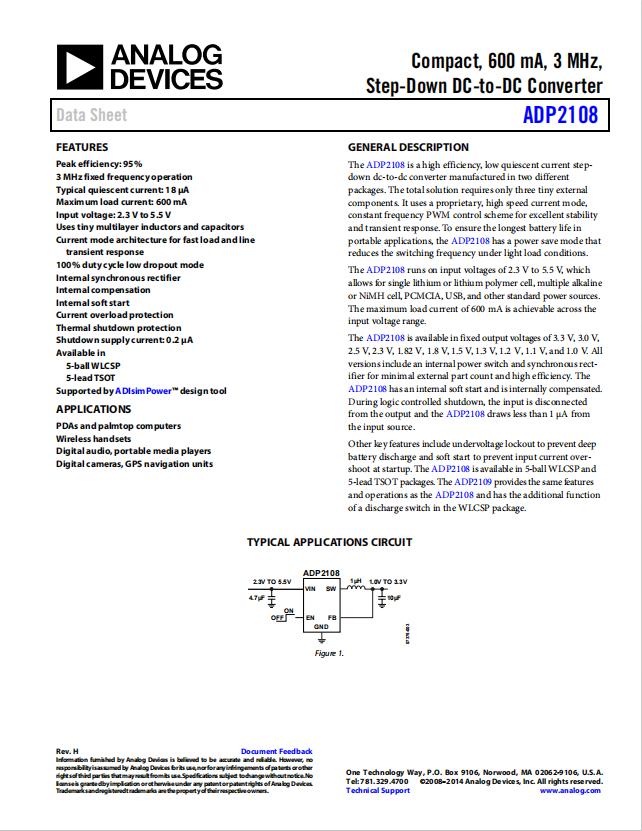

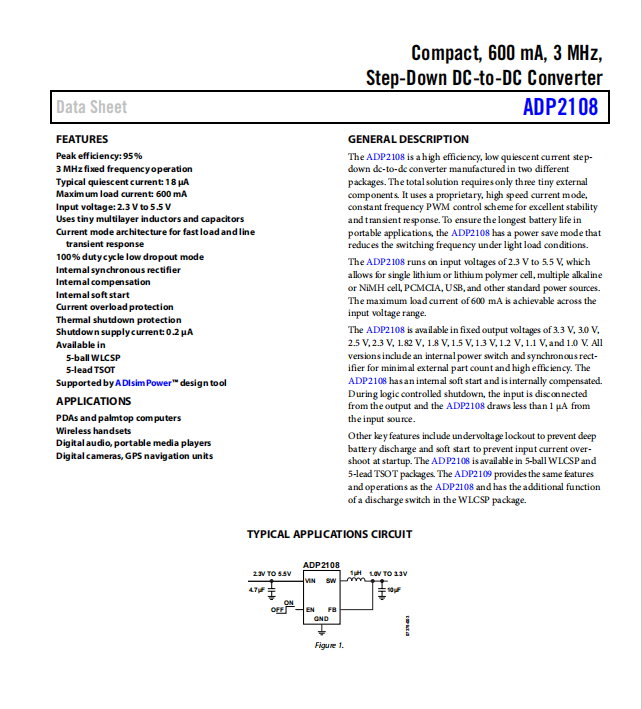

Product Data Book：

For more product information, please download the PDF
