Product Descriptions
The LTM?4607 is a high efficiency switching mode buckboost power supply. Included in the package are the switchingcontroller, powerFETs, andsupportcomponents.
Operating over an input voltage range of 4.5V to 36V, the LTM4607 supports an output voltage range of 0.8V to 24V, set by a resistor. This high efficiency design delivers up to 5A continuous current in boost mode (10A in buck mode). Only the inductor, sense resistor, bulk input and output capacitors are needed to finish the design.
The lowprofilepackage enablesutilizationofunusedspace on the bottom of PC boards for high density point of load regulation. The high switching frequency and current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The LTM4607 can be frequency synchronized with an external clock to reduce undesirable frequency harmonics.
Fault protection features include overvoltage and foldback current protection. The DC/DC μModule? regulator is offered in a small thermally enhanced 15mm × 15mm ×2.8mm LGA package. The LTM4607 is Pb-free and RoHS compliant.
Product Features
? Single Inductor Architecture Allows VIN Above, Below or Equal to VOUT
? Wide VIN Range: 4.5V to 36V
? Wide VOUT Range: 0.8V to 24V
? 5A DC (10A DC in Buck Mode)
? High Efficiency Up to 98%
? Current Mode Control
? Power Good Output Signal
? Phase-Lockable Fixed Frequency: 200kHz to 400kHz
? Ultrafast Transient Response
? Current Foldback Protection
? Output Overvoltage Protection
? Small, Low Profile Surface Mount LGA Package (15mm × 15mm × 2.8mm)
Product Applications
? Telecom, Servers and Networking Equipment
? Industrial and Automotive Equipment
? High Power Battery-Operated Devices
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LTM4607IV |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Original |
| Series | μModule? |
| Package | Tray |
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 0.8 ~ 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 5A |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 0.98 |
| Mounting Type | Surface Mount |
| Package / Case | 141-BLGA Module |
| Size / Dimension | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) |
| Supplier Device Package | 141-LGA (15x15) |
| Base Product Number | LTM4607 |

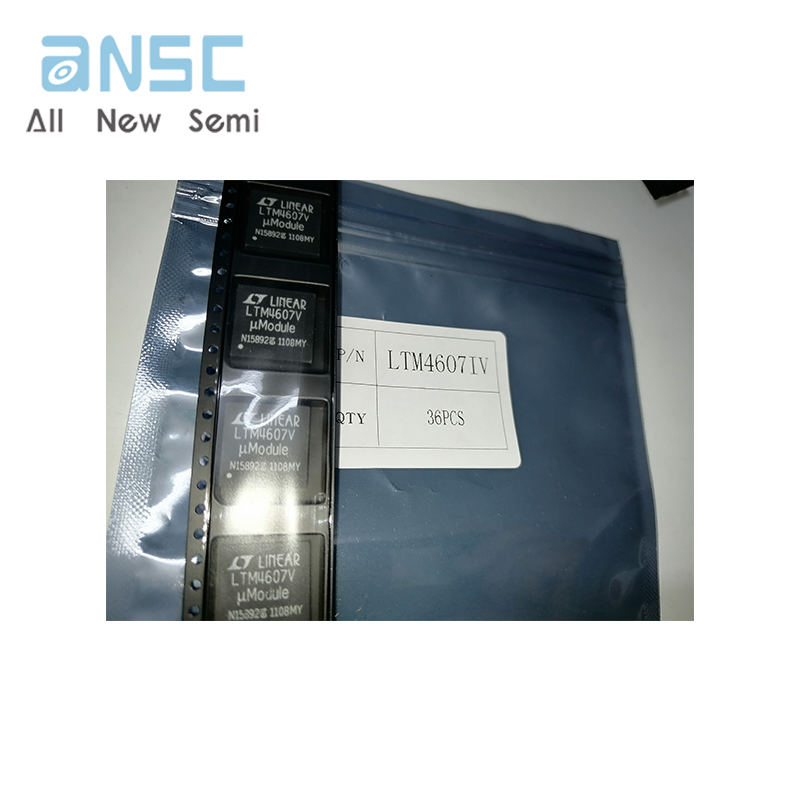

Actual product photos

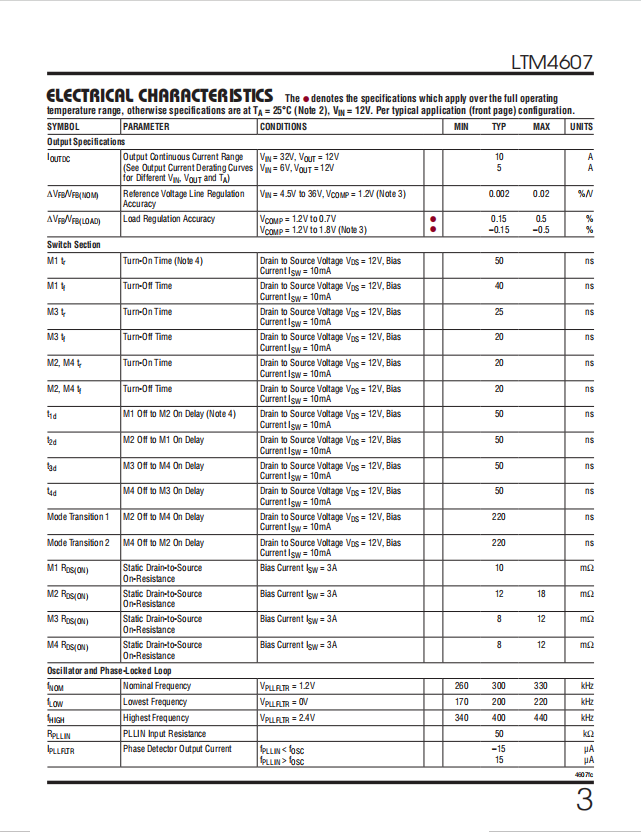

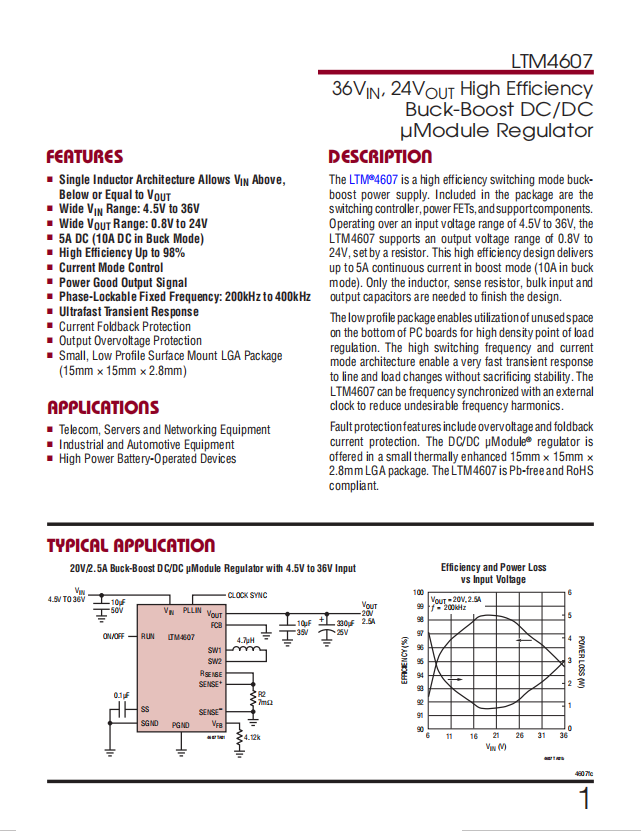

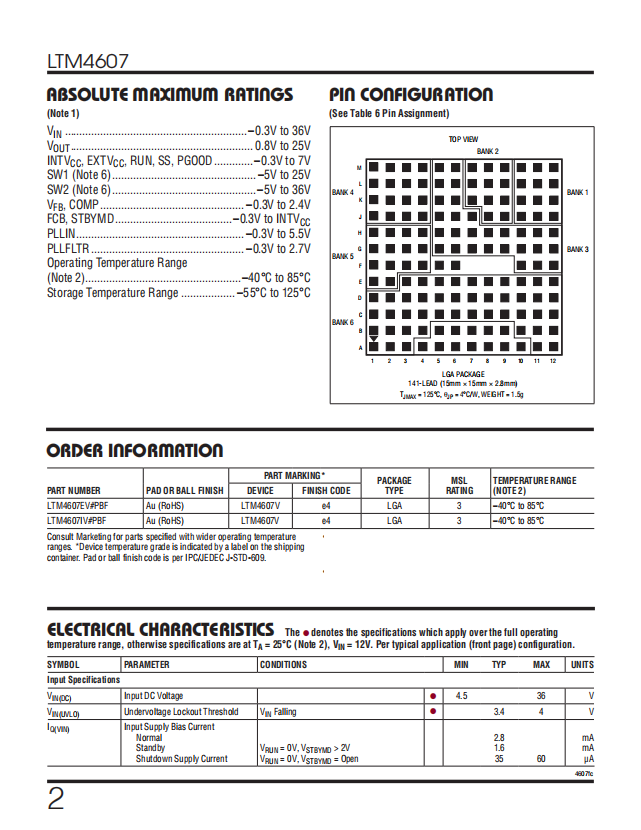

Product Data Book：
For more product information, please download the PDF
