Product Descriptions
The AT24C04B/08B provides 4096/8192 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 512/1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24C04B/08B is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra-Thin Mini-MAP (MLP 2x3), 5-lead SOT23, 8-lead TSSOP, and 8-ball dBGA2 packages and is accessed via a Two-wire serial interface. In addition, the AT24C04B/08B is available in 1.8V (1.8V to 5.5V) version.
Product Features
? Low-voltage and Standard-voltage Operation
─ 1.8 (VCC = 1.8V to 5.5V)
? Internally Organized 512 x 8 (4K), or 1024 x 8 (8K)
? Two-wire Serial Interface
? Schmitt Trigger, Filtered Inputs for Noise Suppression
? Bidirectional Data Transfer Protocol
? 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility
? Write Protect Pin for Hardware Data Protection
? 16-byte Page (4K, 8K) Write Modes
? Partial Page Writes Allowed
? Self-timed Write Cycle (5 ms max)
? High-reliability
─ Endurance: 1 Million Write Cycles
─ Data Retention: 100 Years
? 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra-Thin Mini-MAP (MLP 2x3), 5-lead SOT23, 8-lead TSSOP and 8-ball dBGA2 Packages
? Lead-free/Halogen-free
? Die Sales: Wafer Form and Tape and Reel
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AT24C08BN-SH-T |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Original |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| DigiKey Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 8Kbit |
| Memory Organization | 1K x 8 |
| Memory Interface | I2C |
| Clock Frequency | 1 MHz |
| Write Cycle Time - Word, Page | 5ms |
| Access Time | 550 ns |
| Voltage - Supply | 1.8V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AT24C08 |

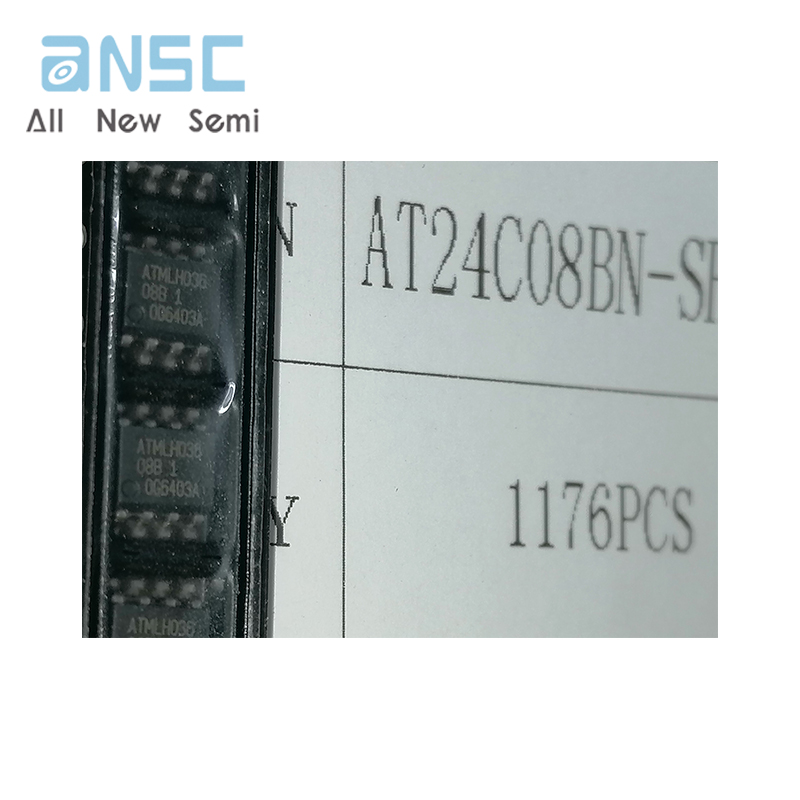

Actual product photos

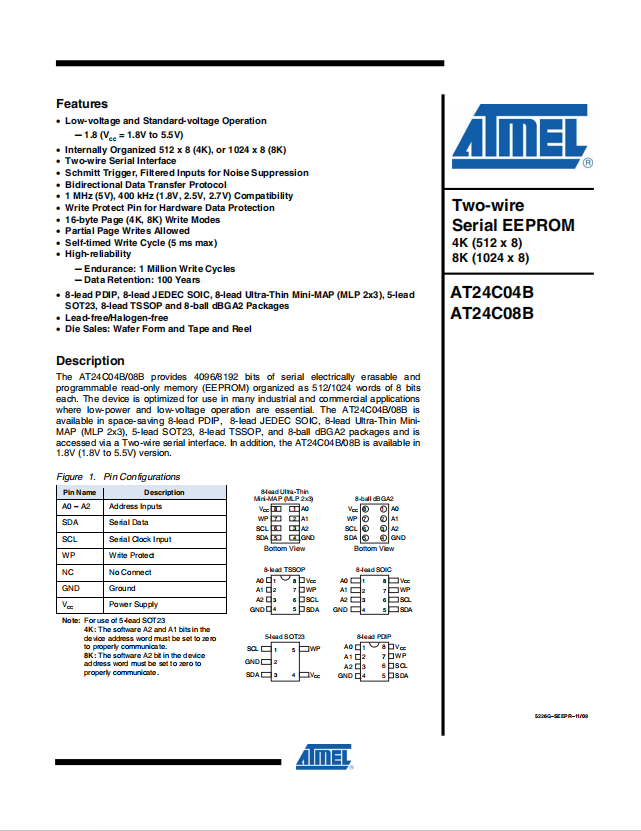

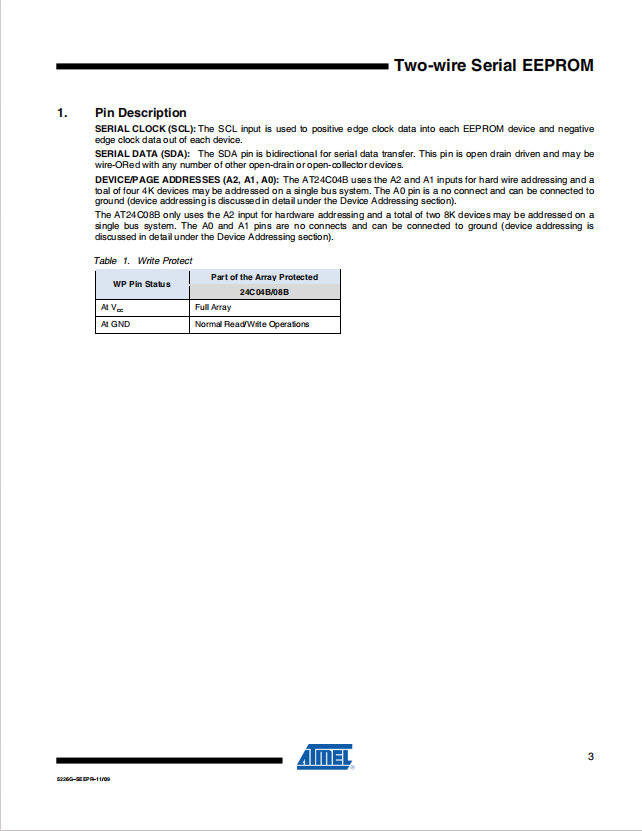

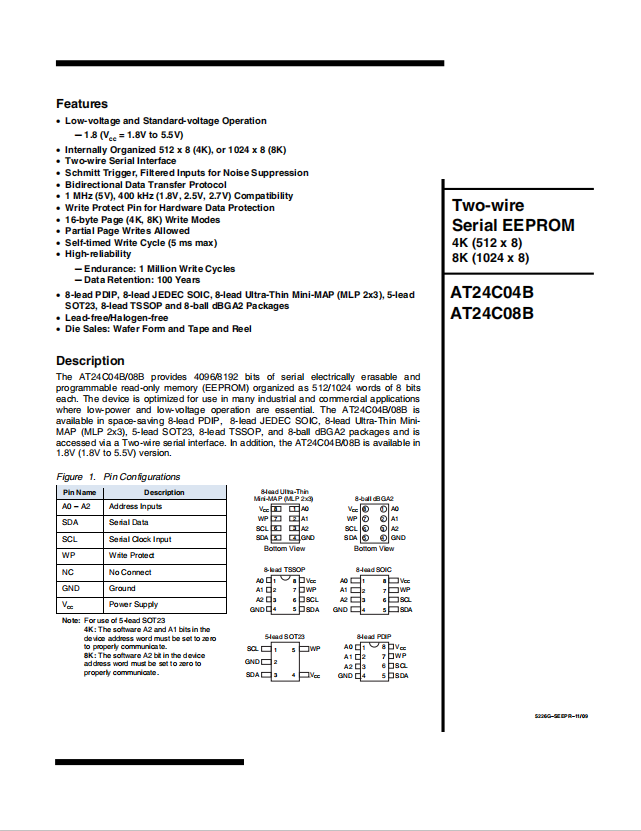

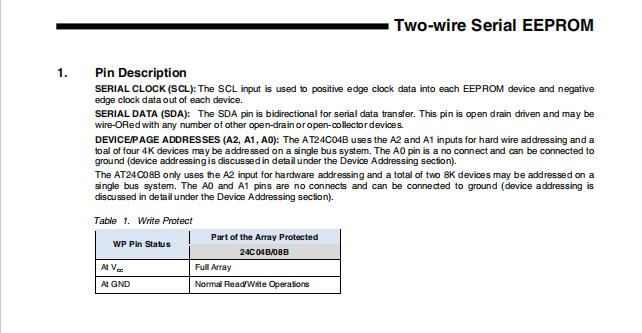

Product Data Book：
For more product information, please download the PDF
