Product Features
? Guard Ring Die Construction for Transient Protection
? Ideally Suited for Automated Assembly
? Low Power-Loss, High Efficiency
? Surge Overload Rating to 50A Peak
? For Use in Low-Voltage, High-Frequency Inverters, Free-Wheeling, and Polarity Protection Application
? High-Temperature Soldering: +260°C/10 Second at Terminal
? Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? Qualified to AEC-Q101 Standards for High Reliability
Product Mechanical Data
? Case: SMA/SMB
? Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208
? Polarity: Cathode Band or Cathode Notch
? Weight: SMA 0.064 grams (Approximate) SMB 0.093 grams (Approximate)
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-B220A-13-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 500 μA @ 20 V |
| Capacitance @ Vr, F | 200pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | B220 |

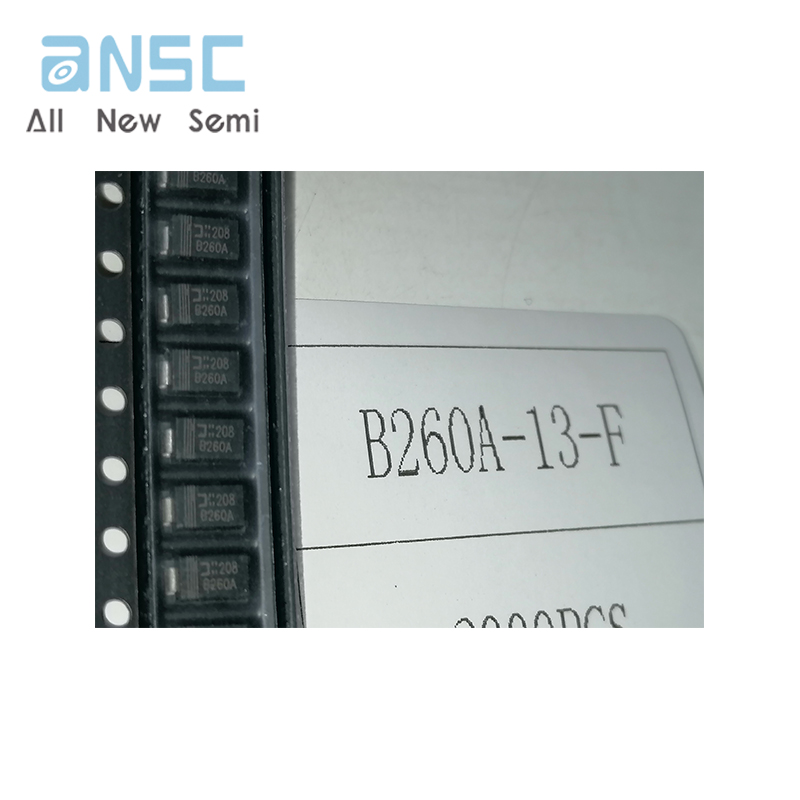

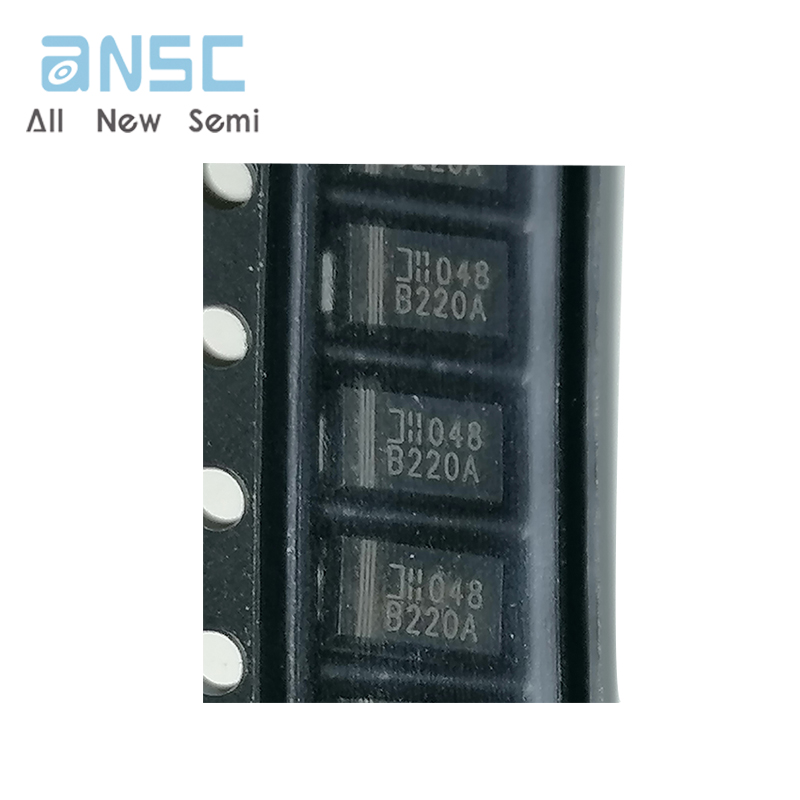

Actual product photos

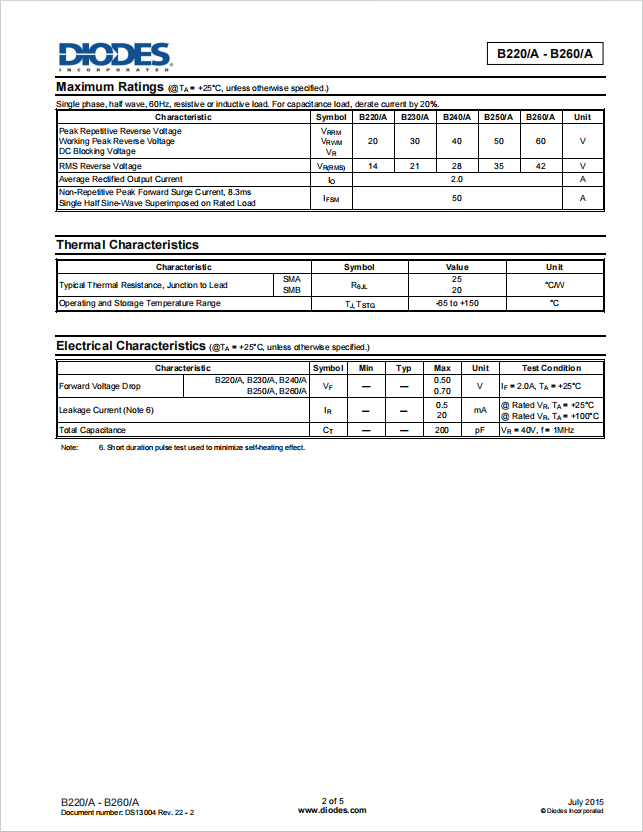

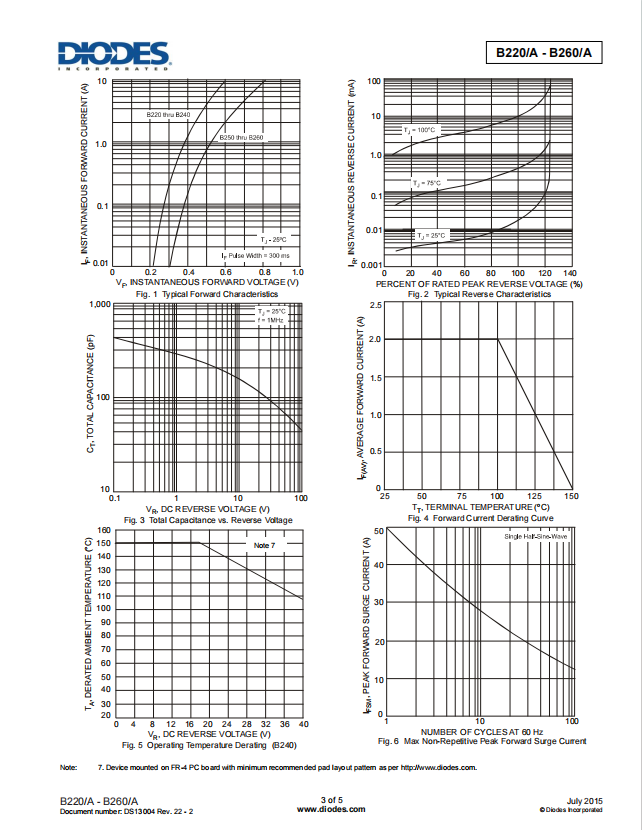

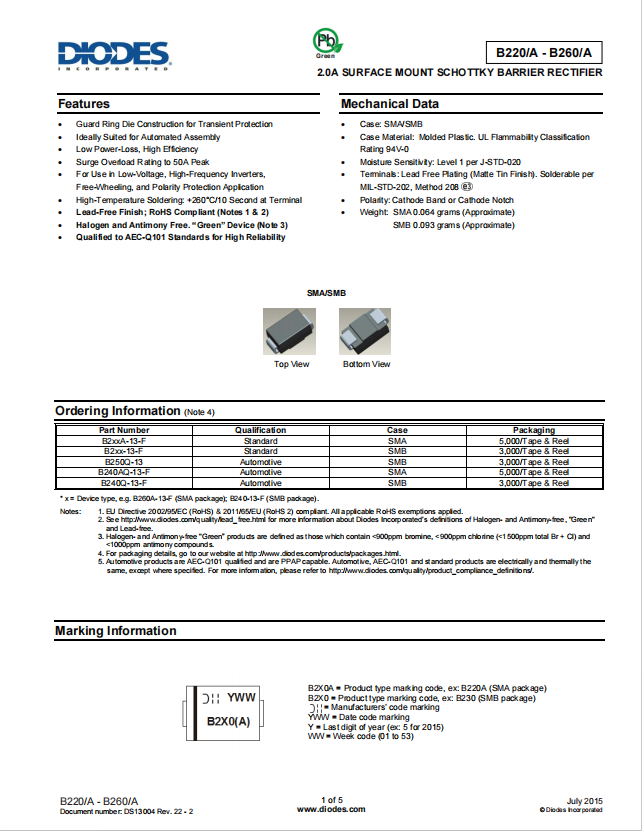

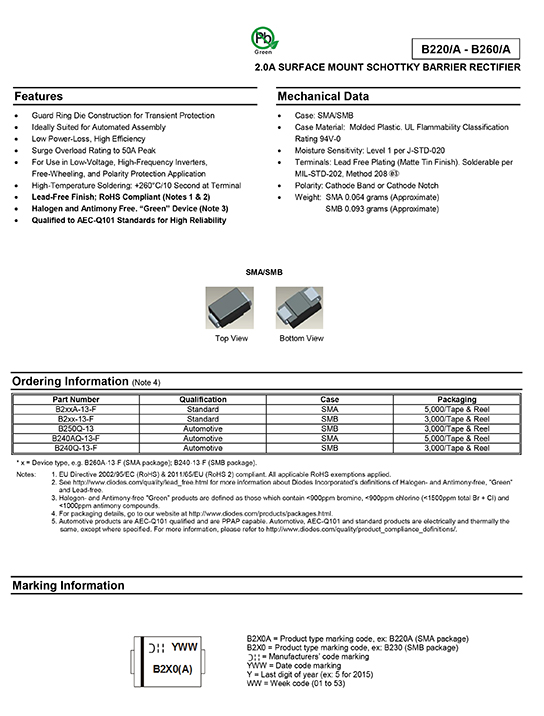

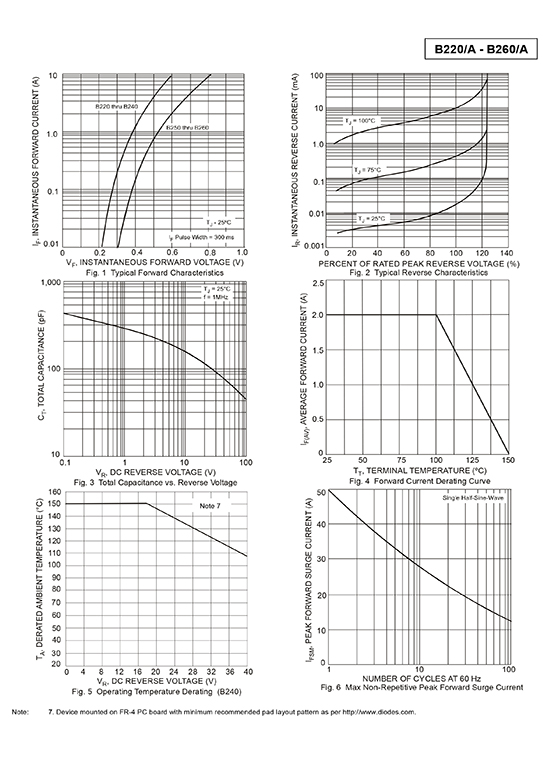

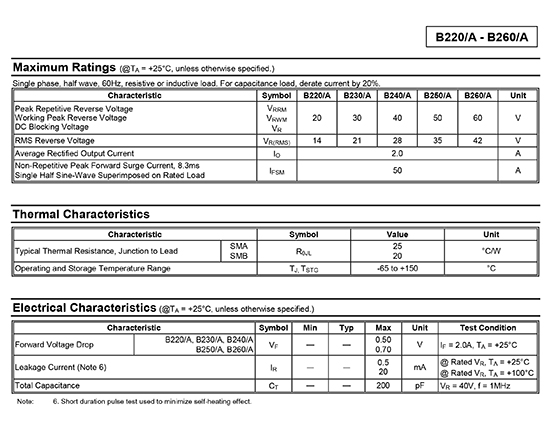

Product Data Book：
For more product information, please download the PDF
