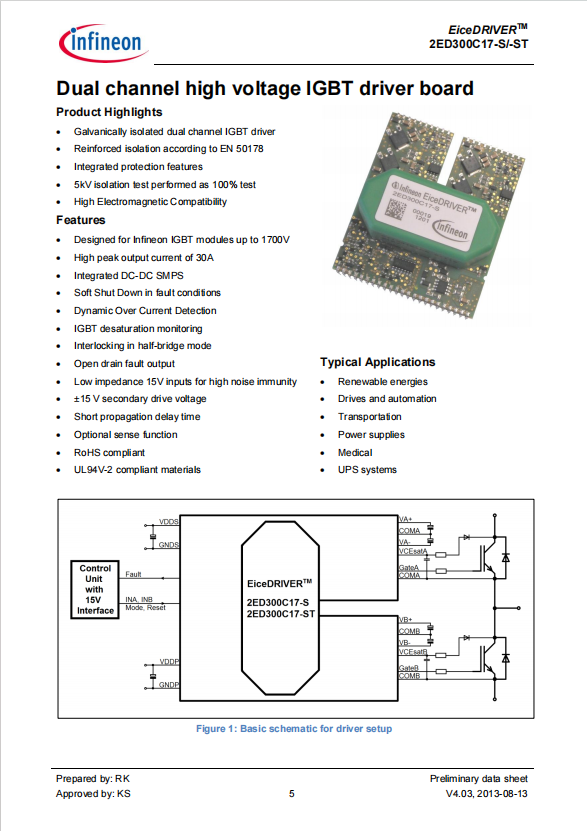

Product Highlights
? Galvanically isolated dual channel IGBT driver
? Reinforced isolation according to EN 50178
? Integrated protection features
? 5kV isolation test performed as 100% test
? High Electromagnetic Compatibility
Product Features
? Designed for Infineon IGBT modules up to 1700V
? High peak output current of 30A
? Integrated DC-DC SMPS
? Soft Shut Down in fault conditions
? Dynamic Over Current Detection
? IGBT desaturation monitoring
? Interlocking in half-bridge mode
? Open drain fault output
? Low impedance 15V inputs for high noise immunity
? ±15 V secondary drive voltage
? Short propagation delay time
? Optional sense function
? RoHS compliant
? UL94V-2 compliant materials
Product Applications
? Renewable energies
? Drives and automation
? Transportation
? Power supplies
? Medical
? UPS systems
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-2ED300C17-S |
| Category | Discrete Semiconductor Products |
| Transistors | |
| IGBTs | |
| IGBT Modules | |
| Mfr | Infineon Technologies |
| Series | EiceDriver? |
| Package | Tray |
| Product Status | Active |
| IGBT Type | - |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Vce(on) (Max) @ Vge, Ic | - |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | Module |
| Base Product Number | 2ED300 |

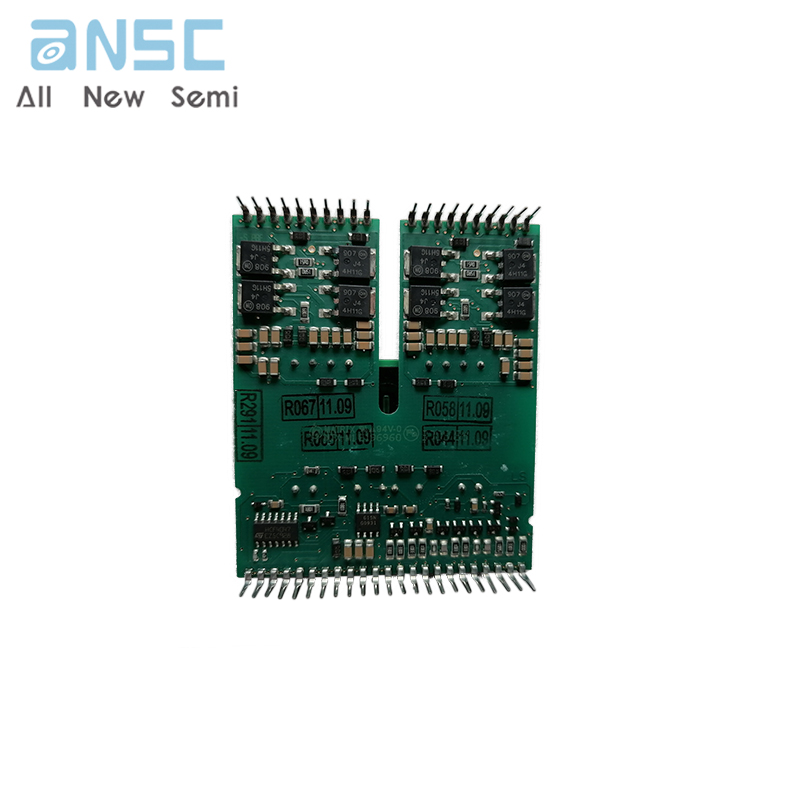

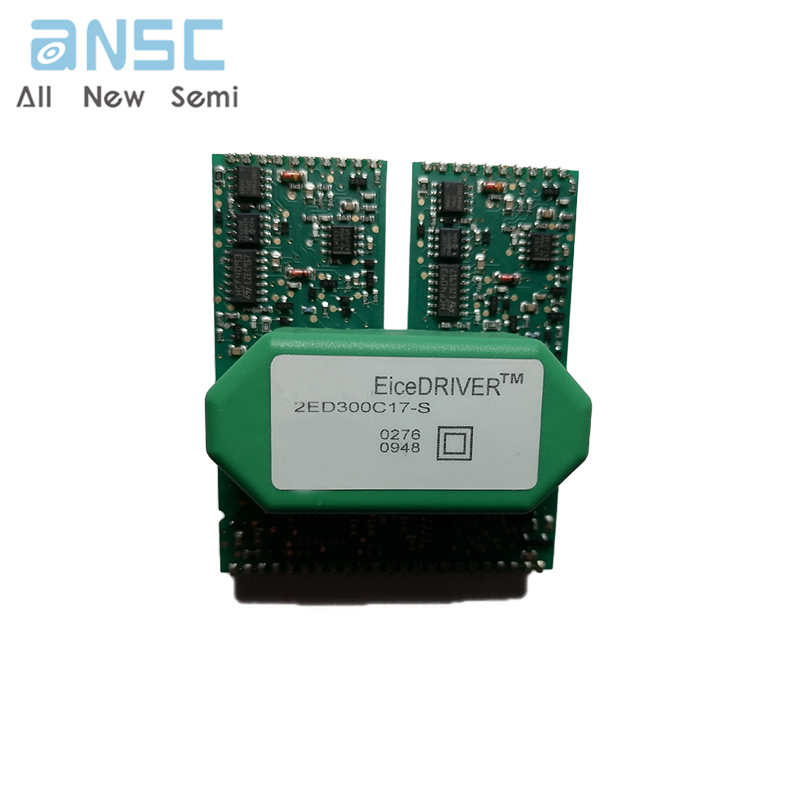

Actual product photos
