Product Details
| MAX-M8C-0 Description The u-blox 8 positioning engine, which receives GPS, GLONASS, QZSS, and SBAS signals, provides dependable performance in the MAX-8 line of conventional precision GNSS modules. High sensitivity and quick acquisition times are provided by the MAX-8 series in the incredibly small MAX form factor. The cost-effective MAX-8 series offers great sensitivity while consuming little power and supports sophisticated Power Save Modes. Additionally, it has functionalities for the odometer, geofencing, spoofing detection, and message integrity protection. While the MAX-8Q offers the best performance, the MAX-8C is designed for applications that must use the least amount of power. The backward compatibility of the industry-proven MAX form factor makes it simple to switch from MAX-7 and MAX-6 modules. MAX-M8C-0 Features Modulation or Protocol: BeiDou, Galileo, GLONASS, GNSS, GPS Frequency: 1.575GHz Voltage - Supply: 2.7V~3.6V JESD-30 Code: R-XDMA-N18 Frequency: 1.575GHz MAX-M8C-0 Applications Wearable applications Low-power wireless applications Portable products Battery powered systems |
Product Description
| Type | Description |
| Part# | MAX-M8C-0 |
| Category | RF and Wireless |
| RF Receivers | |
| Manufacturer | u-blox |
| Series | MAX-M8 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Frequency | 1.575GHz |
| Sensitivity | -164dBm |
| Data Rate (Max) | - |
| Modulation or Protocol | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Applications | General Purpose |
| Current - Receiving | 23mA |
| Data Interface | I2C, UART |
| Memory Size | - |
| Antenna Connector | Not Included |
| Features | - |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 18-SMD Module |
| Supplier Device Package | - |
| Base Product Number | MAX-M8 |

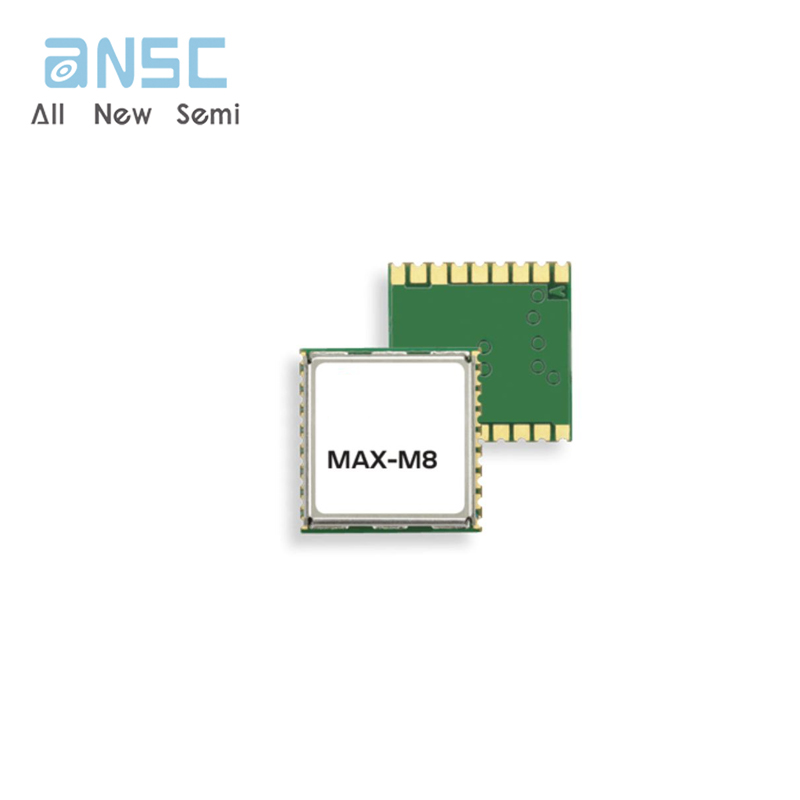

Product Photos
