Product Ddescriptions
The MM74HC132 utilizes advanced silicon?gate CMOS technology to achieve the low power dissipation and high noise immunity of standard CMOS, as well as the capability to drive 10 LS?TTL loads.
The 74HC logic family is functionally and pinout compatible withthe standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Product Features
? Typical Propagation Delay: 12 ns
? Wide Power Supply Range: 2 V – 6 V
? Low Quiescent Current: 40 A maximum (74HC Series)
? Low Input Current: 1 A Maximum
? Fanout of 10 LS?TTL Loads
? Typical Hysteresis Voltage: 0.9 V at VCC = 4.5 V
? These Devices are Pb?Free, Halide Free and are RoHS Compliant
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MM74HC132M |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | onsemi |
| Series | 74HC |
| Package | Reel |
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 μA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.3V ~ 1.2V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74HC132 |

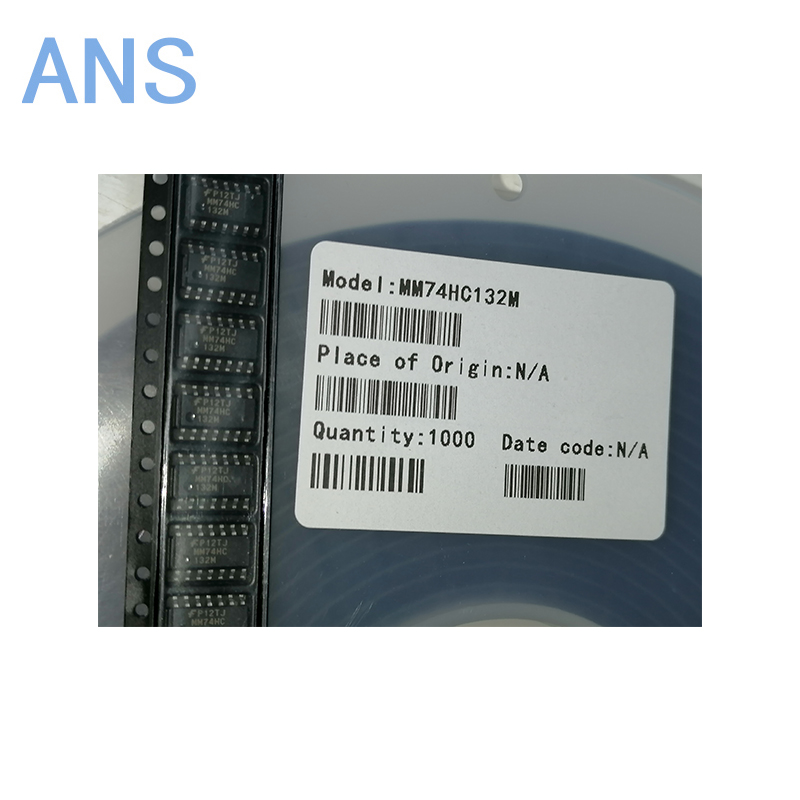

Actual product photos

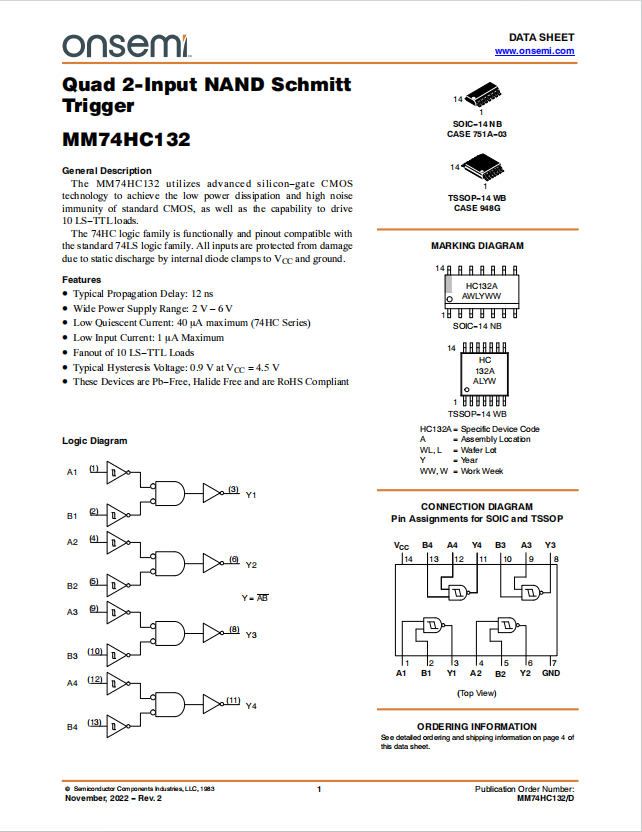

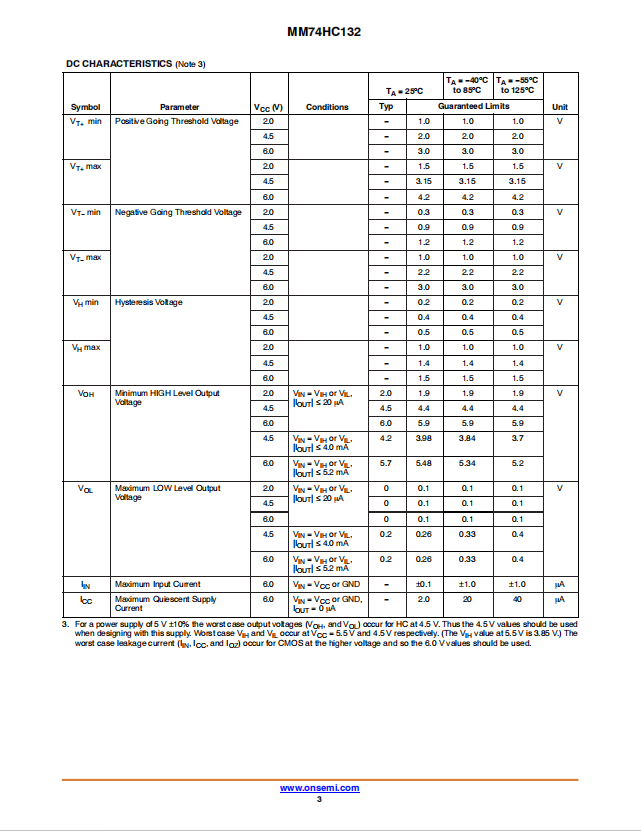

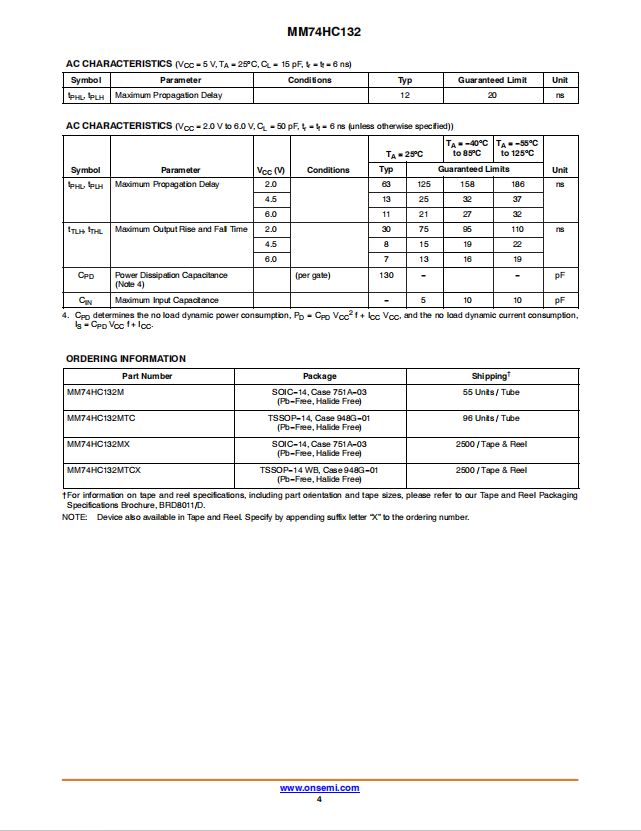

Product Data Book：
For more product information, please download the PDF
