Product Descriptions
This triple Schmitt-trigger inverter is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC3G14 contains three inverters and performs the Boolean function Y = A. The device functions as three independent inverters but, because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT–) signals.
NanoFree? package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Product Features
? Available in the Texas Instruments NanoFree? Package
? Supports 5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Max tpd of 5.4 ns at 3.3 V
? Low Power Consumption, 10-μA Max ICC
? ±24-mA Output Drive at 3.3 V
? Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25°C
? Ioff Feature Supports Live Insertion, Partial-Power-Down Mode and Back Drive Protection
? Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
? ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74LVC3G14DCTR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 μA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.7V ~ 2.5V |
| Input Logic Level - High | 1.4V ~ 3.7V |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SM8 |
| Package / Case | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Base Product Number | 74LVC3G14 |

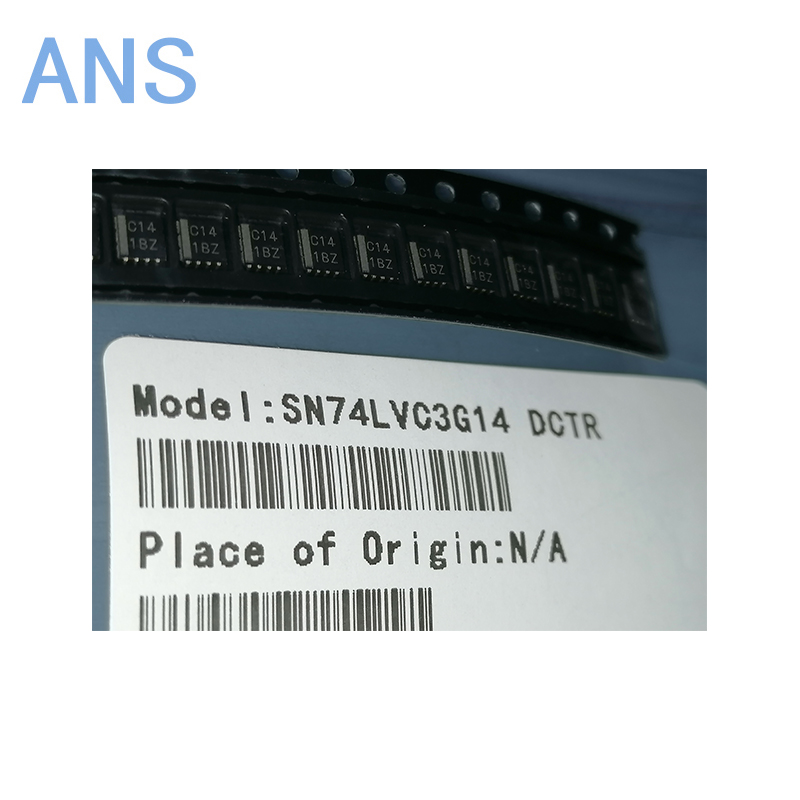

Actual product photos

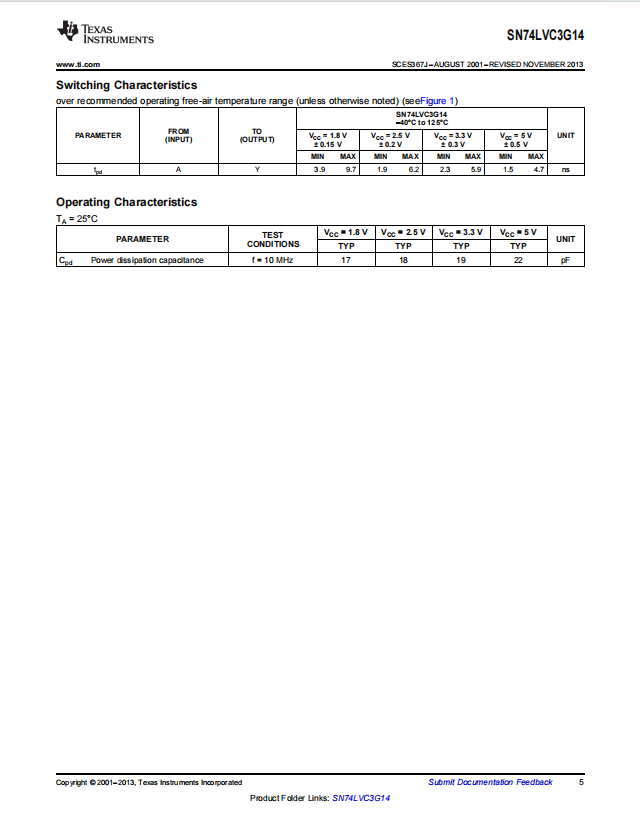

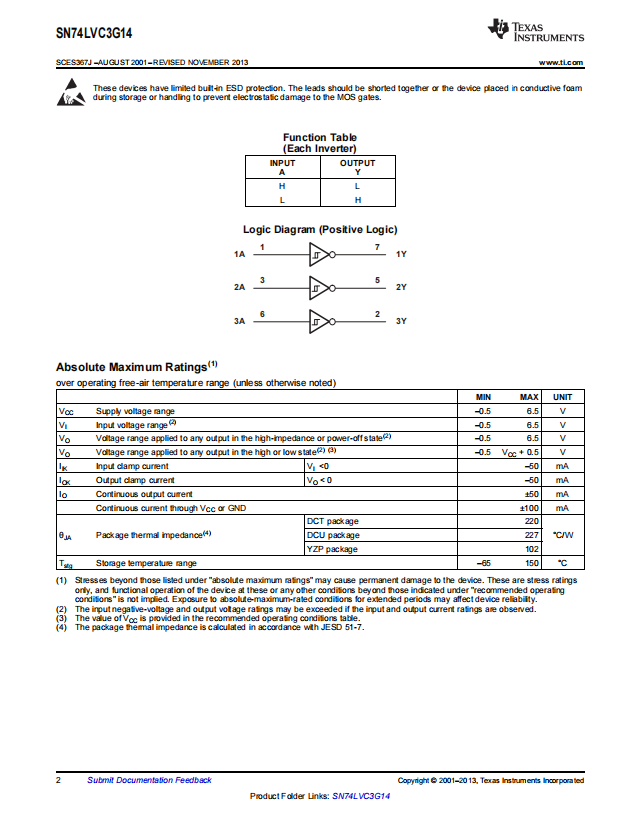

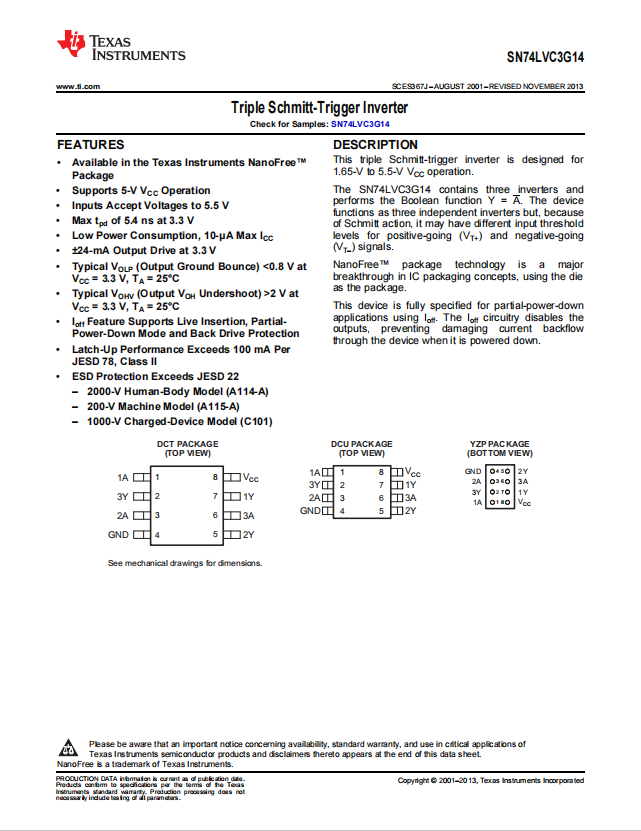

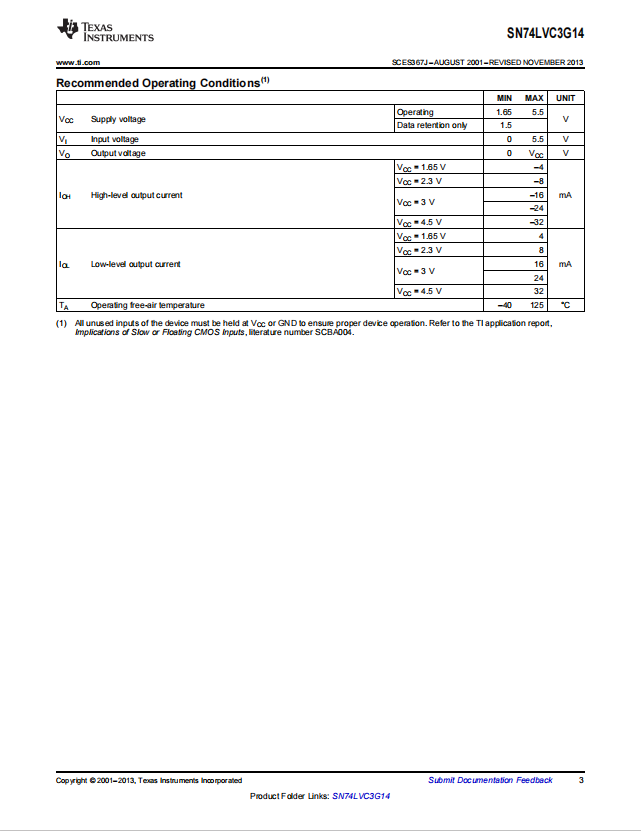

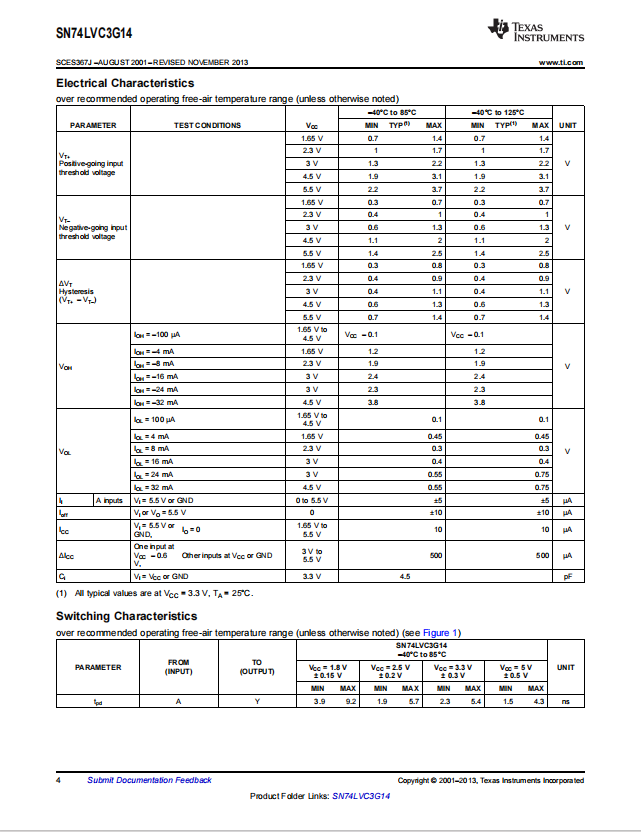

Product Data Book：
For more product information, please download the PDF
