Product Descriptions

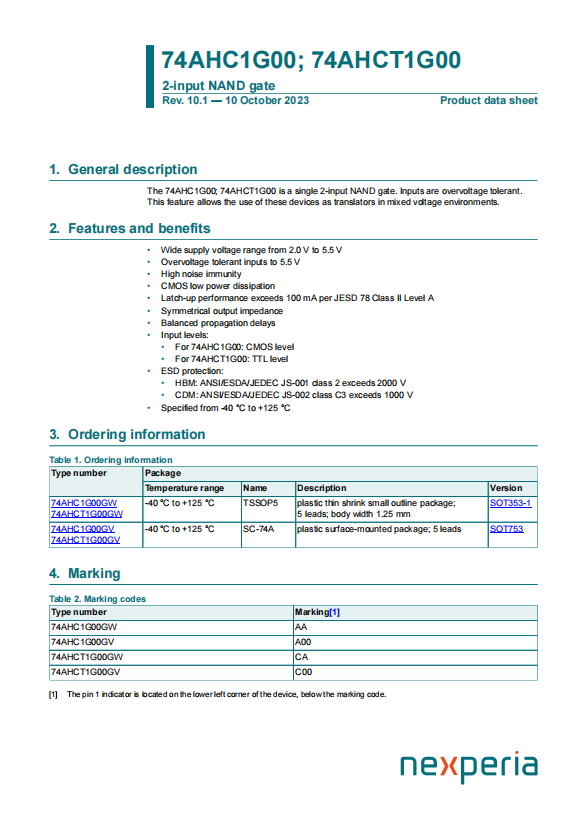

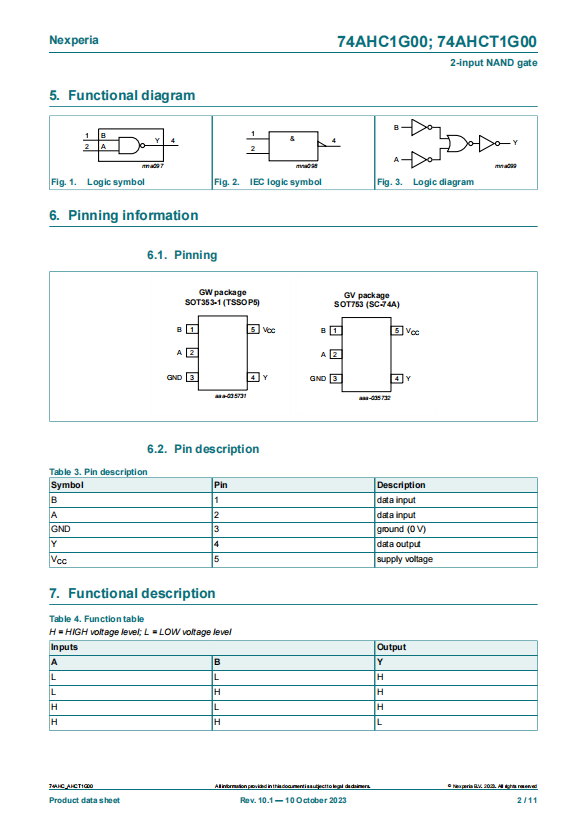

The 74AHC1G00; 74AHCT1G00 is a single 2-input NAND gate. Inputs are overvoltage tolerant.
This feature allows the use of these devices as translators in mixed voltage environments.
Product Features
? Wide supply voltage range from 2.0 V to 5.5 V
? Overvoltage tolerant inputs to 5.5 V
? High noise immunity
? CMOS low power dissipation
? Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
? Symmetrical output impedance
? Balanced propagation delays
? Input levels:
? For 74AHC1G00: CMOS level
? For 74AHCT1G00: TTL level
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
? Specified from -40 °C to +125 °C
Specifications

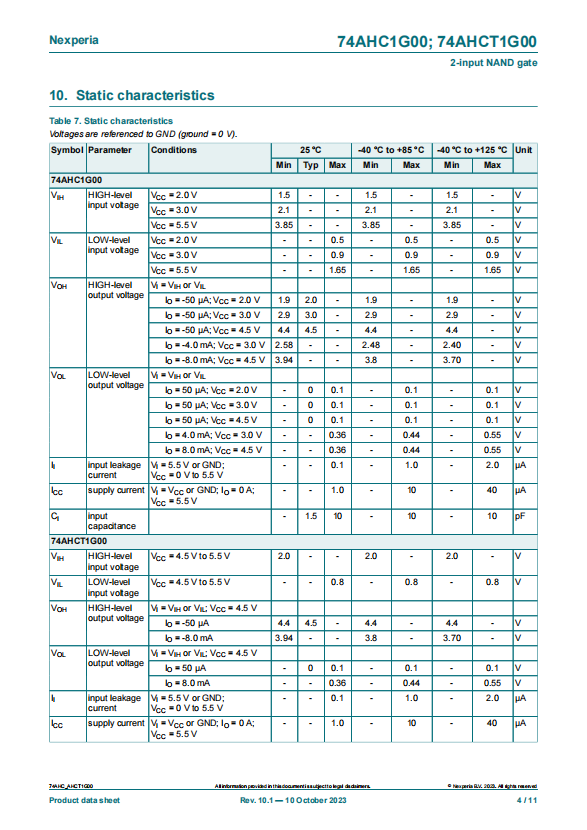

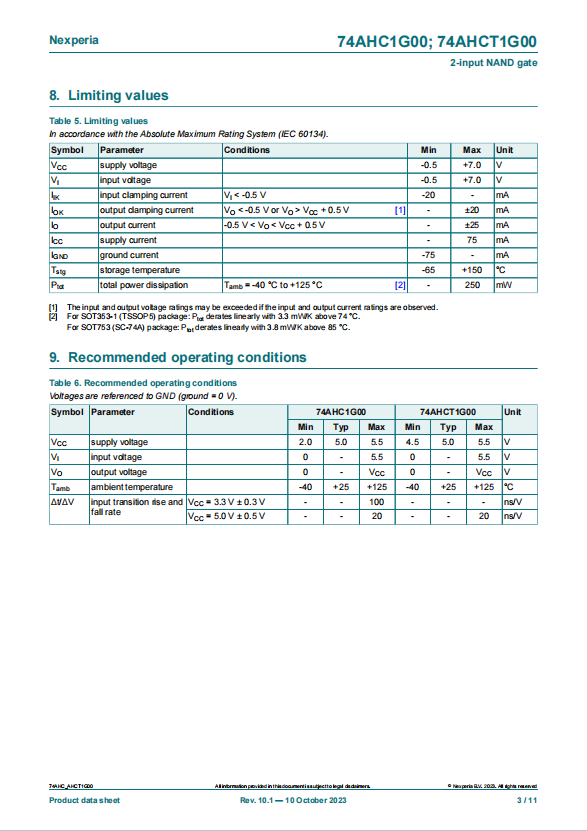

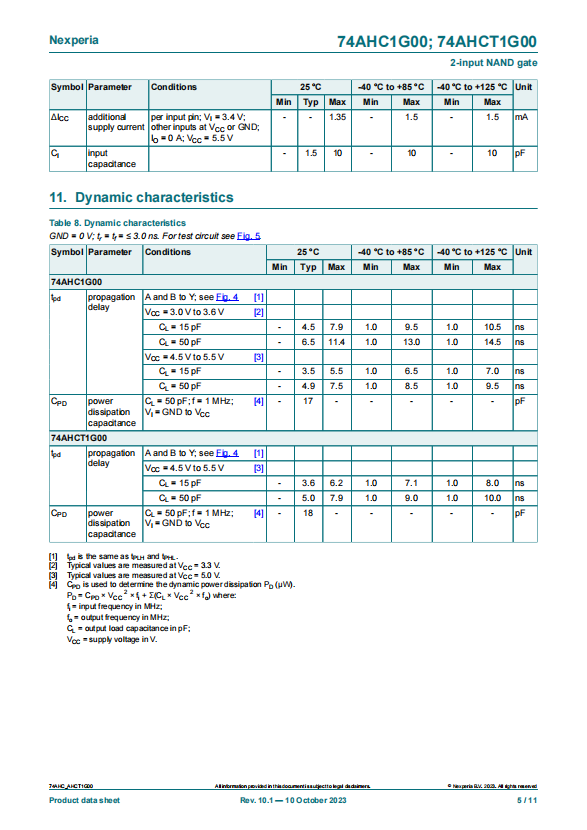

| Attribute | Attribute value |
| ANSM-Part# | ANSM-74AHCT1G00GV,125 |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74AHCT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 μA |
| Current - Output High, Low | 8mA, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 7.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-74A |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 74AHCT1G00 |
