Product Descriptions

NPN transistor in a SOT23 plastic package.

PNP complement: BC807.

? High current (max. 500 mA)

? Low voltage (max. 45 V).

? General purpose switching and amplification.

Attribute	Attribute value
ANSM-Part#	ANSM-BC817
Part Status	Active
HTS	8541.21.00.75
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Material	Si
Configuration	Single
Number of Elements per Chip	1
Maximum Collector Base Voltage (V)	45
Maximum Collector-Emitter Voltage (V)	45
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.2@50mA@500mA
Maximum Collector-Emitter Saturation Voltage (V)	0.7(Typ)@50mA@500mA
Maximum DC Collector Current (A)	0.5
Minimum DC Current Gain	40@500mA@1V\|100@100mA@1V
Maximum Power Dissipation (mW)	250
Maximum Transition Frequency (MHz)	100(Typ)
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150
Mounting	Surface Mount
Package Height	1.15(Max)
Package Width	1.4(Max)
Package Length	3(Max)
PCB changed	3
Standard Package Name	SOT
Supplier Package	SOT-23
Pin Count	3
Lead Shape	Gull-wing

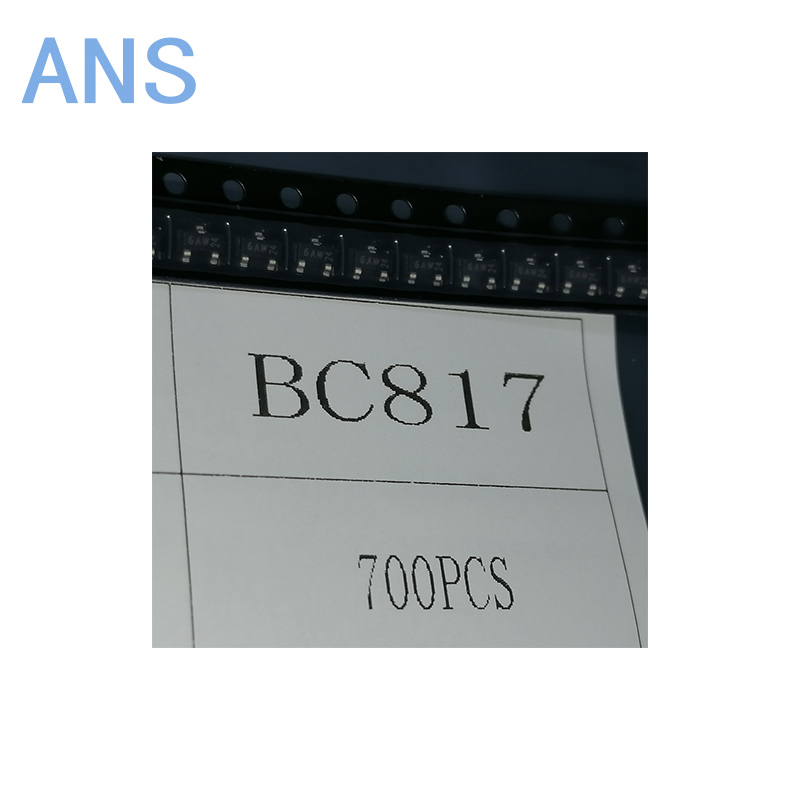

BC817

Product Data Book：

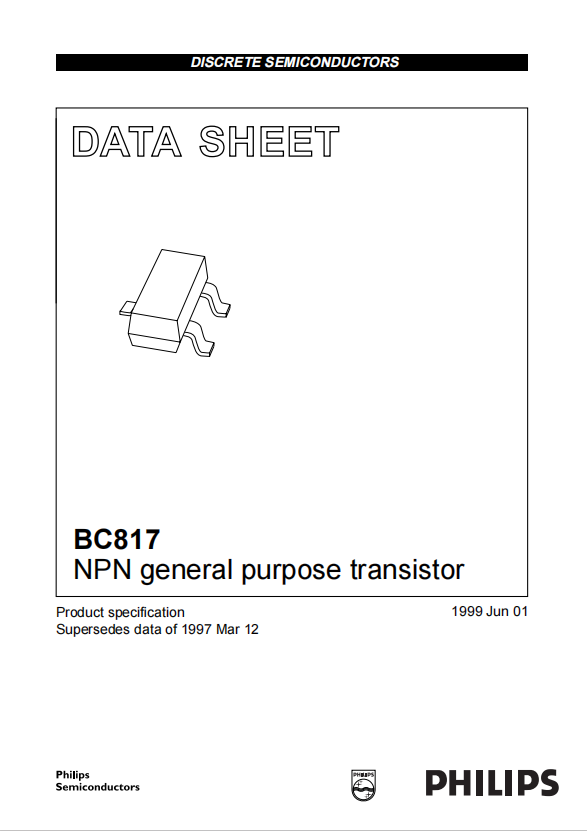

搜狗高速瀏覽器截圖20231207145459

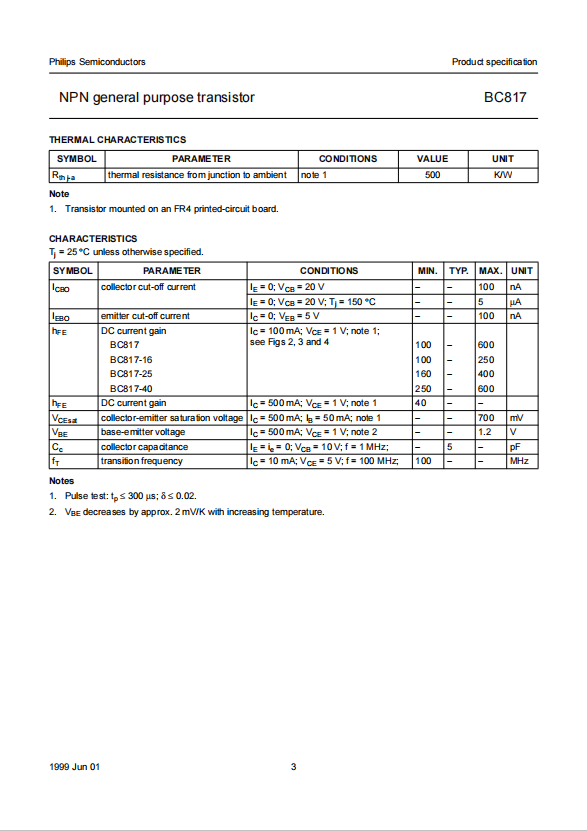

搜狗高速瀏覽器截圖20231207145510

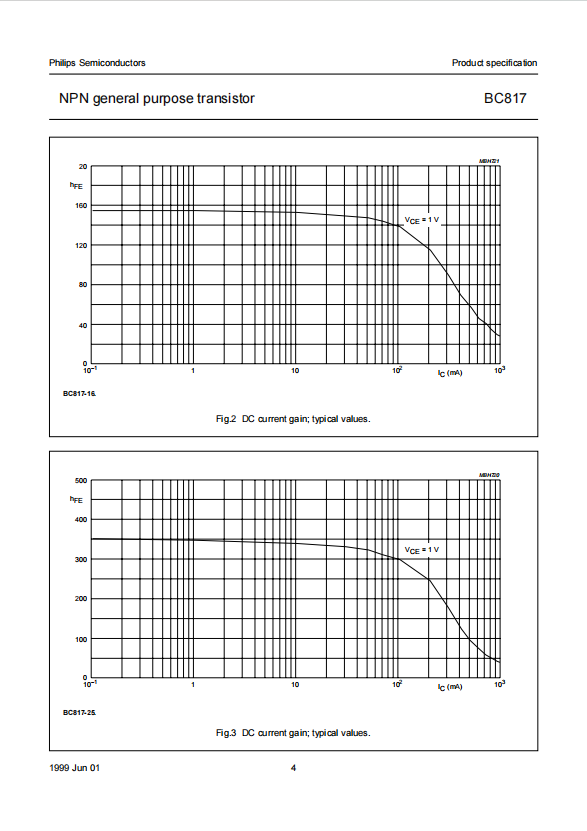

搜狗高速瀏覽器截圖20231207145519

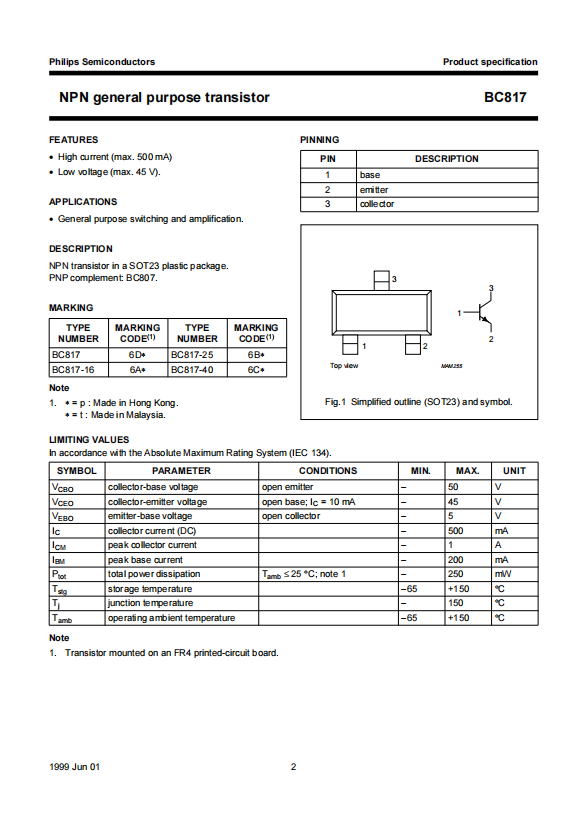

搜狗高速瀏覽器截圖20231207145530

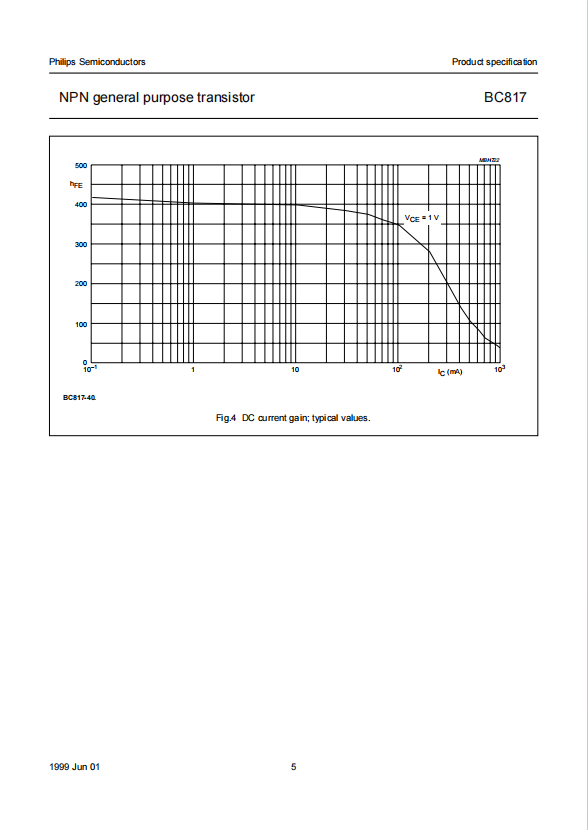

搜狗高速瀏覽器截圖20231207145536

For more product information, please download the PDF
