Product Descriptions

The NCV4264?2 is functionally and pin for pin compatible with NCV4264 with a lower quiescent current consumption. Its output stage supplies 100 mA with ±2.0% output voltage accuracy.

Maximum dropout voltage is 500 mV at 100 mA load current.

It is internally protected against 45 V input transients, input supply reversal, output overcurrent faults, and excess die temperature. No external components are required to enable these features.

Product Features

? 3.3 V and 5.0 V Fixed Output

? ±2.0% Output Accuracy, Over Full Temperature Range

? 60 A Maximum Quiescent Current at IOUT = 100 A

? 500 mV Maximum Dropout Voltage at 100 mA Load Current

? Wide Input Voltage Operating Range of 4.5 V to 45 V

? Internal Fault Protection

    ? ?42 V Reverse Voltage

    ? Short Circuit/Overcurrent

    ? Thermal Overload

? NCV Prefix for Automotive and Other Applications Requiring

    Unique Site and Control Change Requirements; AEC?Q100

    Qualified and PPAP Capable

? This is a Pb?Free Device

Specifications

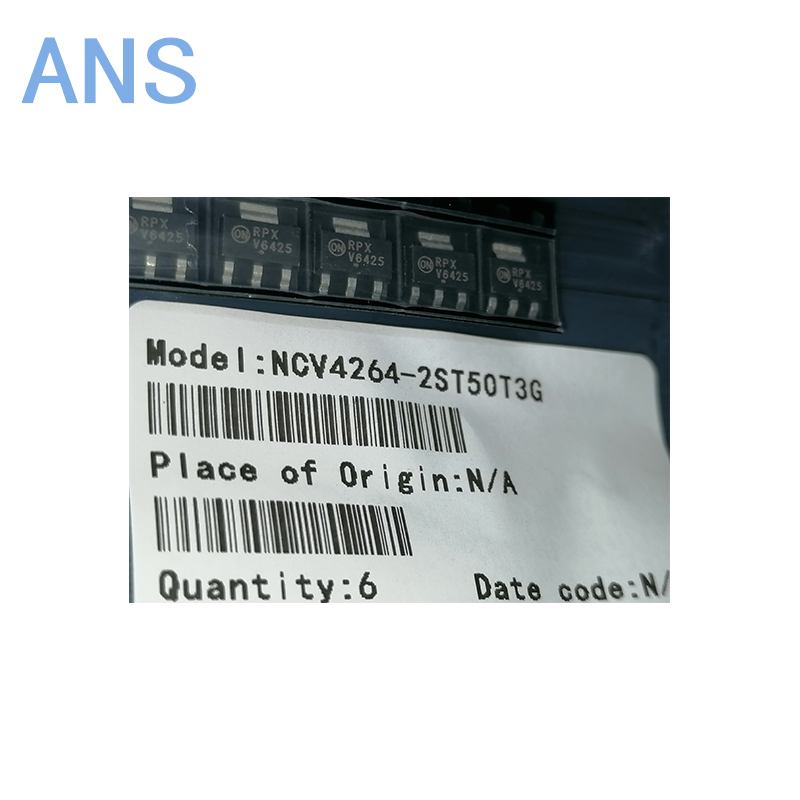

Actual product photos

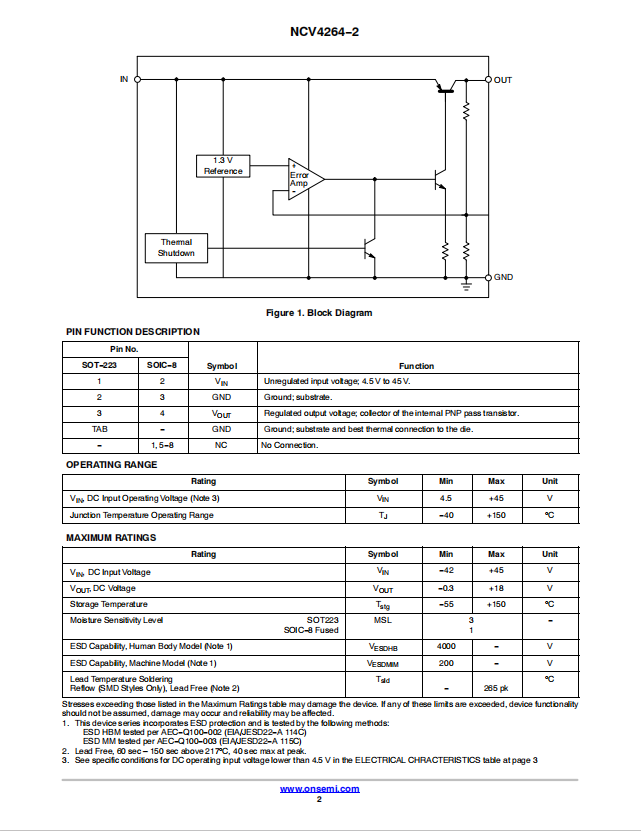

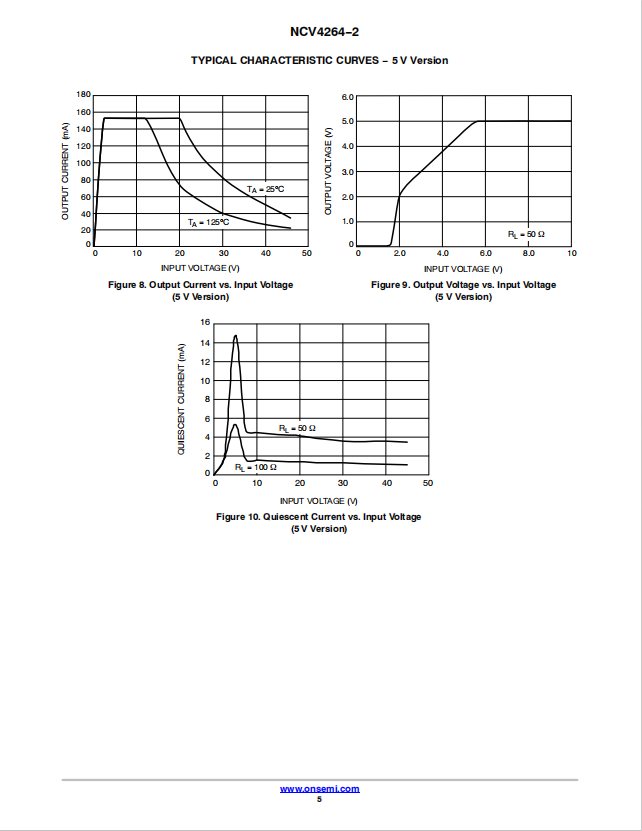

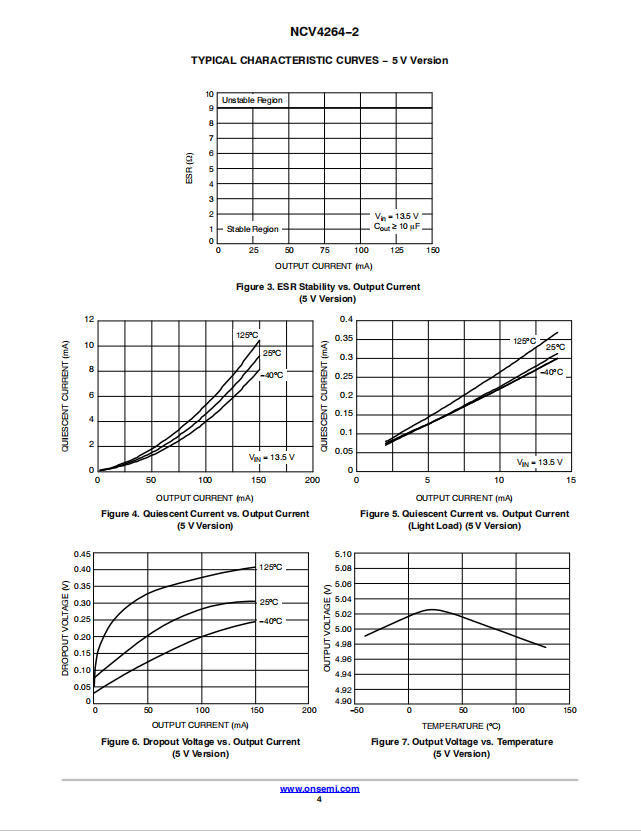

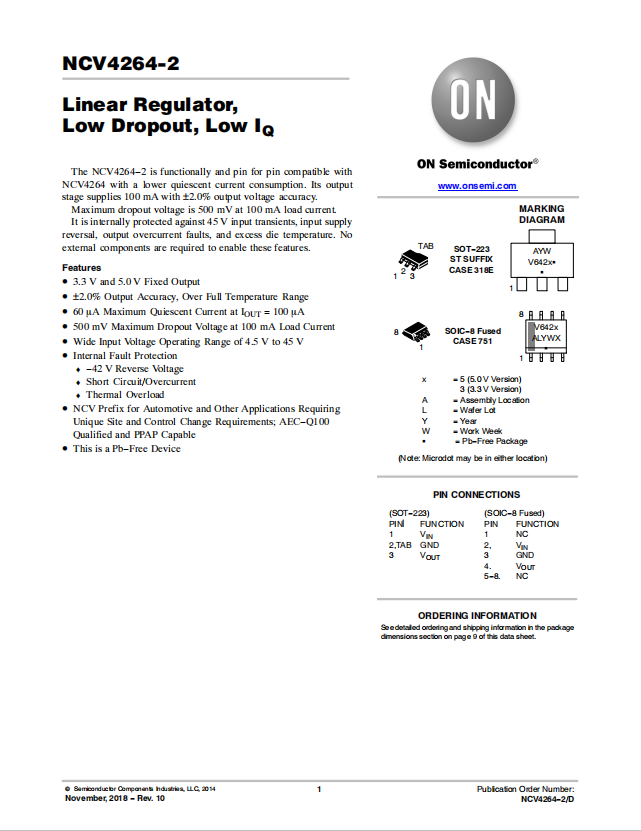

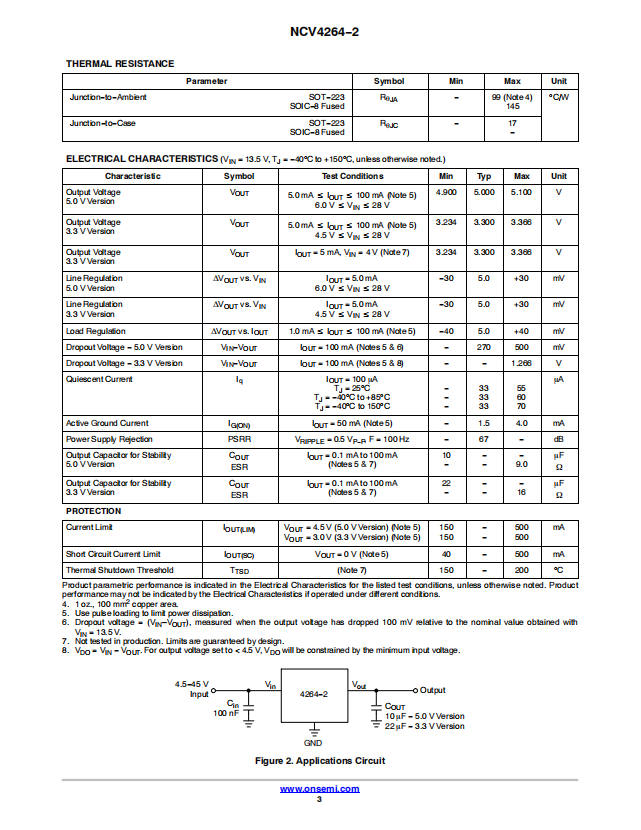

Product Data Book：

For more product information, please download the PDF
