Product Details
Low-power, high-performance 8/16-bit AVR? microcontroller featuring 32 KB self-programming Flash program memory, 4 KB boot code section, 4 KB SRAM, 1 KB EEPROM, external bus interface, 4-channel DMA controller, 8-channel event system, and up to 32 MIPS throughput at 32 MHz. The AVR? XMEGA? A4U series features 44-pin packages.
The device can be used in a wide range of applications, such as building, industrial, motor, board, and climate control; hand-held battery applications; factory automation; power tools; HVAC; networking, metering, large home appliances, and optical and medical devices.
Products Features
?32KB of in-system self-programmable flash
?4KB boot section
?1KB EEPROM
?4KB internal SRAM
?USB 2.0 full speed (12Mbps) and low speed (1.5Mbps) device compliant
?32 Endpoints with full configuration flexibility
Specifications
|
Attribute |
Attribute value |
|
ANSM-Part# |
ANSM-ATXMEGA32A4U-AU |
|
Category |
Integrated Circuits (ICs) |
|
Embedded |
|
|
Microcontrollers |
|
|
Mfr |
Original |
|
Series |
AVR? XMEGA? A4U |
|
Package |
Tray |
|
Product Status |
Active |
|
DigiKey Programmable |
Not Verified |
|
Core Processor |
AVR |
|
Core Size |
8/16-Bit |
|
Speed |
32MHz |
|
Connectivity |
I2C, IrDA, SPI, UART/USART, USB |
|
Peripherals |
Brown-out Detect/Reset, DMA, POR, PWM, WDT |
|
Number of I/O |
34 |
|
Program Memory Size |
32KB (16K x 16) |
|
Program Memory Type |
FLASH |
|
EEPROM Size |
1K x 8 |
|
RAM Size |
4K x 8 |
|
Voltage - Supply (Vcc/Vdd) |
1.6V ~ 3.6V |
|
Data Converters |
A/D 12x12b; D/A 2x12b |
|
Oscillator Type |
Internal |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
44-TQFP |
|
Supplier Device Package |
44-TQFP (10x10) |
|
Base Product Number |
ATXMEGA32 |

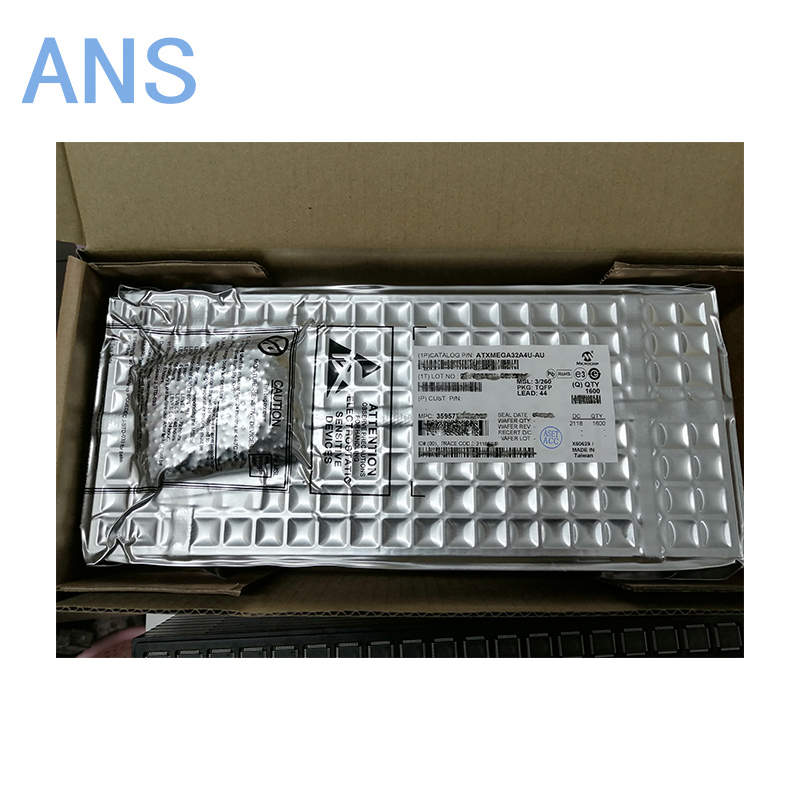

Actual product photos

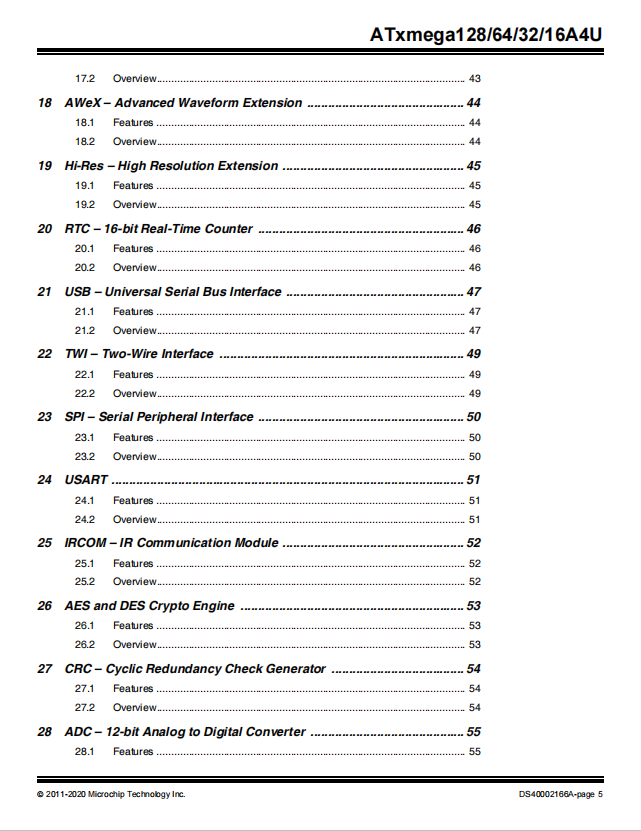

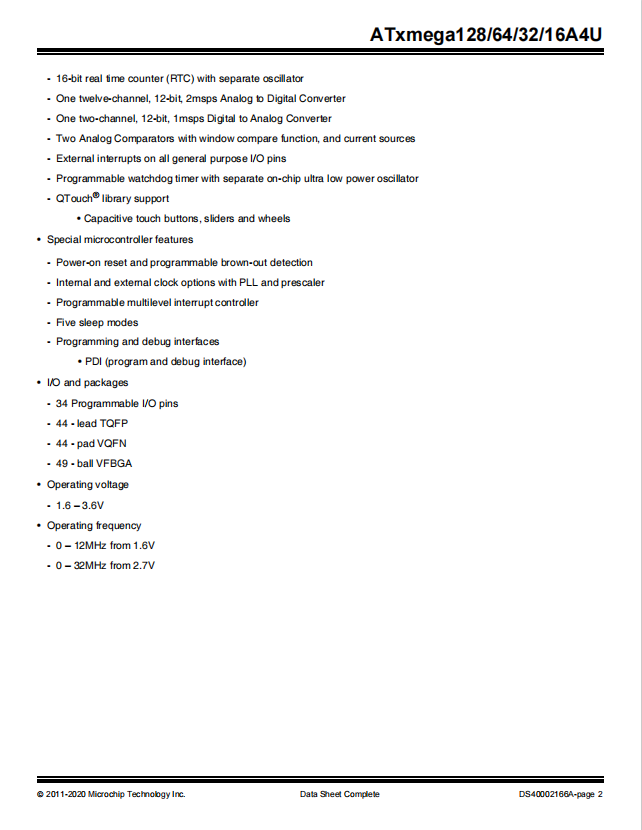

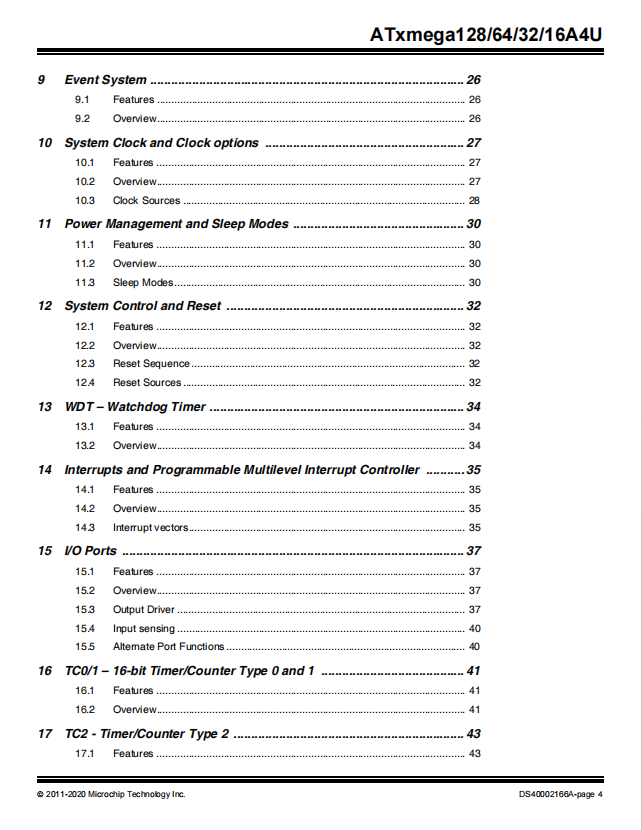

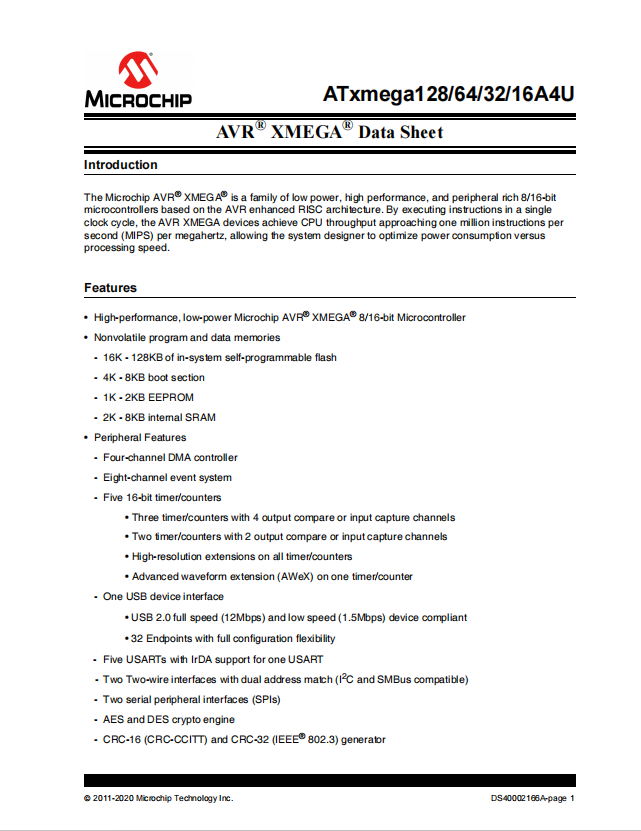

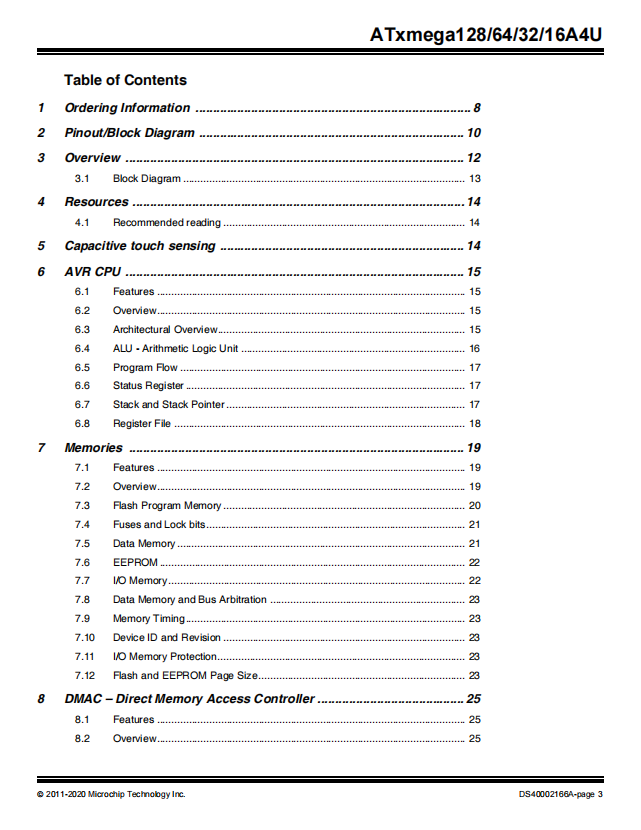

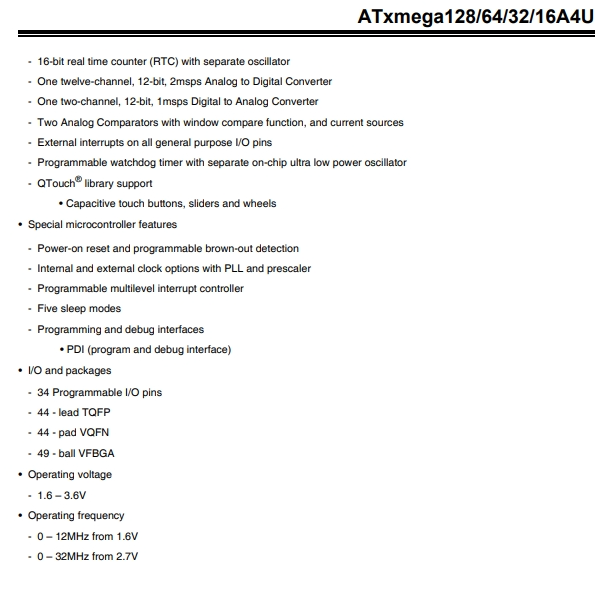

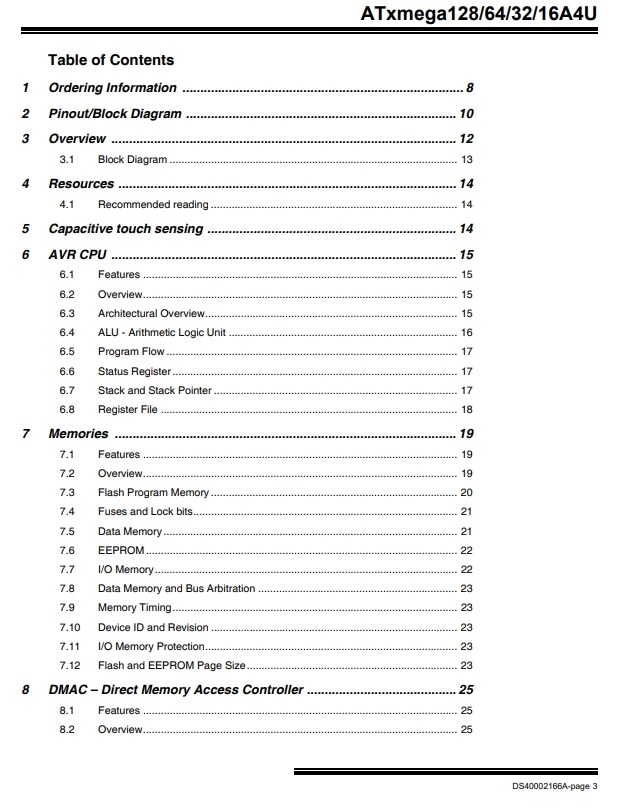

Product Data Book：
For more product information, please download the PDF
