Product Description
FDS5672 is a type of N-channel PowerTrench? MOSFET that is manufactured based on the high-performance trench technology for extremely low RDS (on). It features a low gate charge and fast switching speed. MOSFET FDS5672 is primarily designed to enhance the overall efficiency of DC/DC converters through either synchronous or conventional switching PWM controllers.
Product Features
Low RDS (on)
Low gate charge
Fast switching speed
Available in the SO-8 package
High power and current handling capability
Product Applications
DC/DC converters
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - FDS5672 |
Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
Mfr | / |
Series | PowerTrench? |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
FET Type | N-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 60 V |
Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
Rds On (Max) @ Id, Vgs | 10mOhm @ 12A, 10V |
Vgs(th) (Max) @ Id | 4V @ 250μA |
Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 10 V |
Vgs (Max) | ±20V |
Input Capacitance (Ciss) (Max) @ Vds | 2200 pF @ 25 V |
FET Feature | - |
Power Dissipation (Max) | 2.5W (Ta) |
Operating Temperature | -55°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |
Supplier Device Package | 8-SOIC |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Base Product Number | FDS56 |

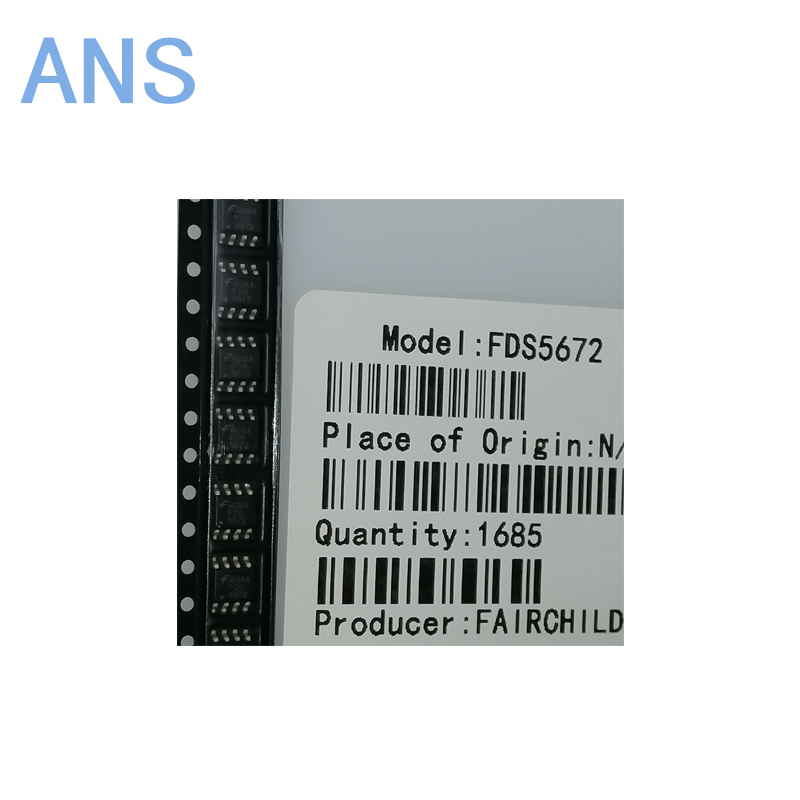

Actual image of the product

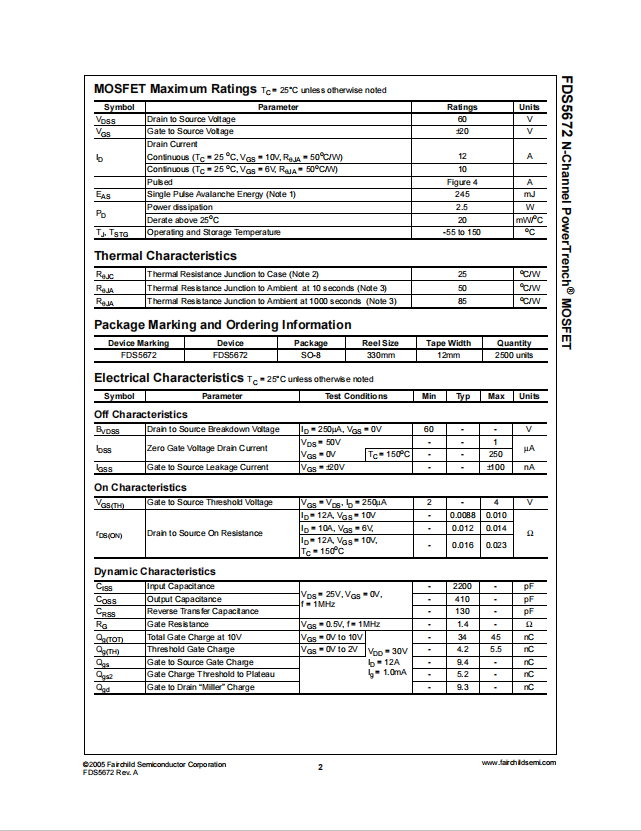

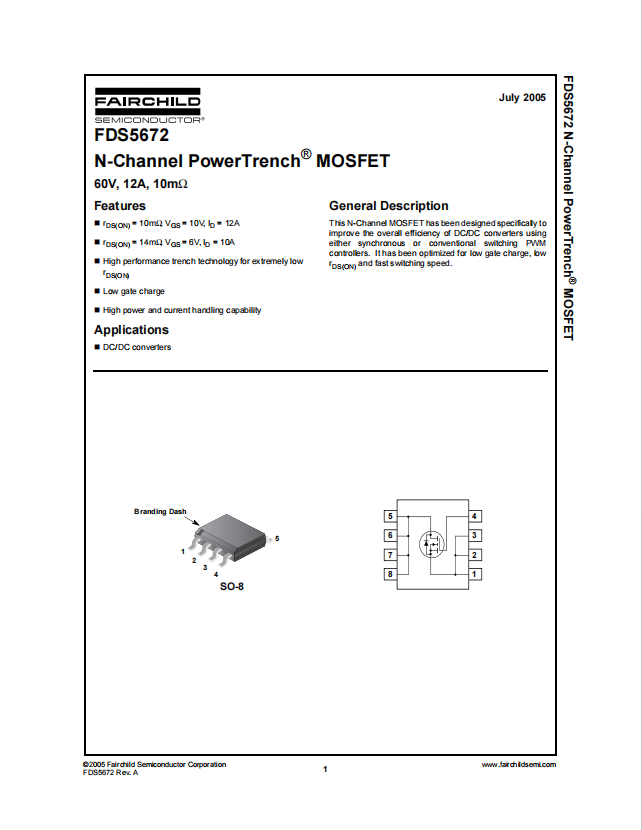

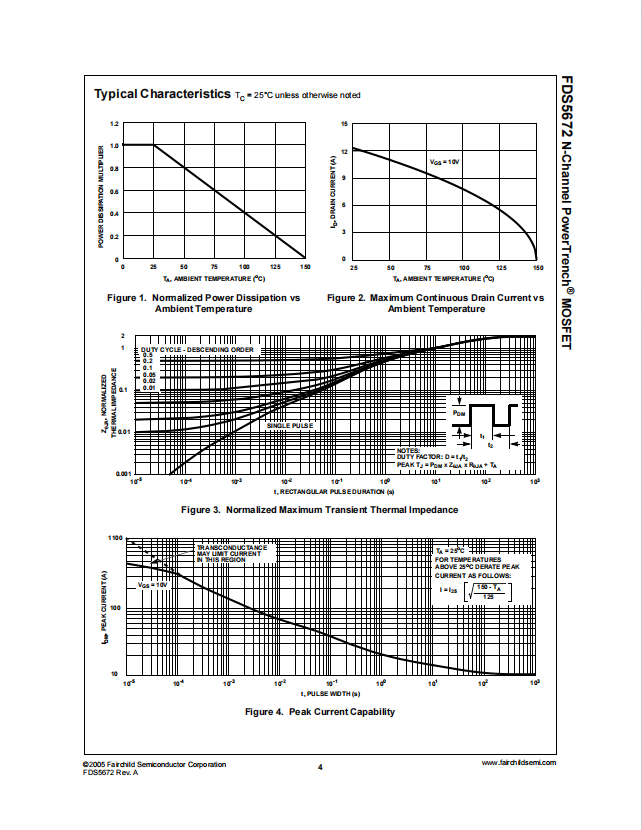

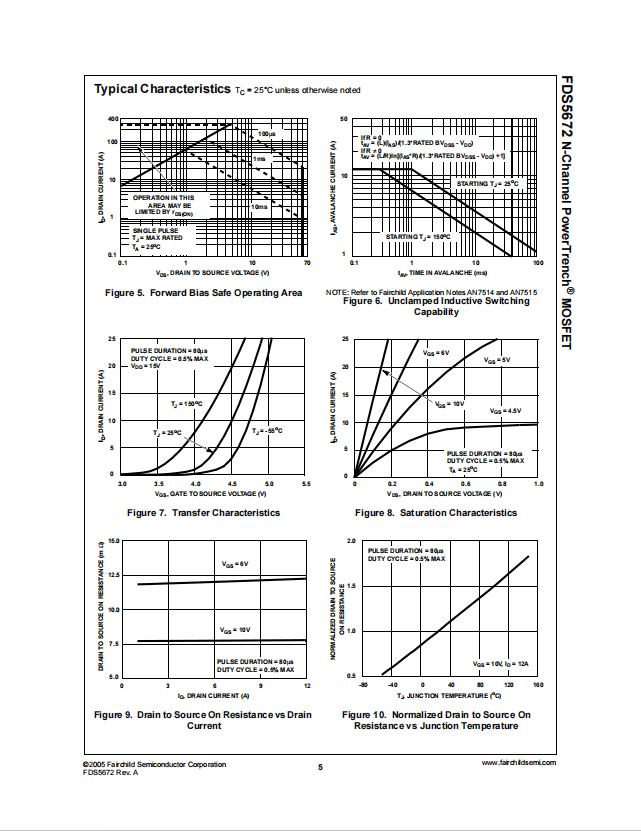

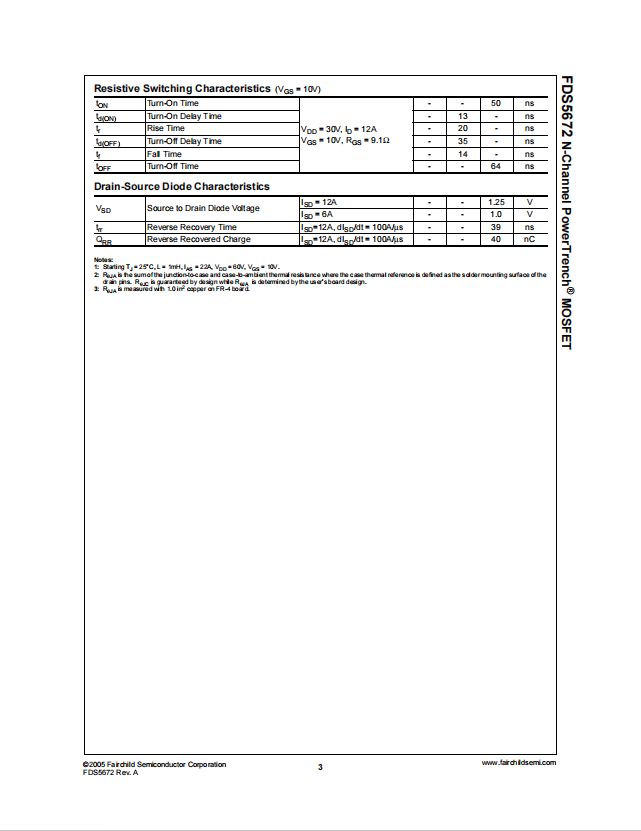

Product datasheet
