Product Descriptions

The M74HC4049 is an high speed CMOS HEX BUFFER fabricated with silicon gate C2MOS technology.

The internal circuit is composed of 3 stages, which enables high noise immunity and a stable output

Input protection circuits are different from those of the high speed CMOS IC’s.

The Vcc side diodes are designed to allow logic-level conversion from high-level voltages (up to 13V) to low level voltages.

■ HIGH SPEED: tPD = 8ns (TYP.) at VCC =6V

■ LOW POWER DISSIPATION: ICC = 1μA(MAX.) at TA=25°C

■ HIGH NOISE IMMUNITY: VNIH = VNIL = 28 % VCC (MIN.)

■ SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 6mA (MIN)

■ BALANCED PROPAGATION DELAYS: tPLH ? tPHL

■ WIDE OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 6V

■ PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 4050

Part#	M74HC4050RM13TR
Category	Integrated Circuits (ICs)
	Logic
	Buffers, Drivers, Receivers, Transceivers
Mfr	STMicroelectronics
Series	74HC
Package	Tape & Reel (TR)
Package	Cut Tape (CT)
Product Status	Obsolete
Logic Type	Buffer, Non-Inverting
Number of Elements	6
Number of Bits per Element	1
Input Type	-
Output Type	Push-Pull
Current - Output High, Low	5.2mA, 5.2mA
Voltage - Supply	2V ~ 6V
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SO
Base Product Number	74HC4050

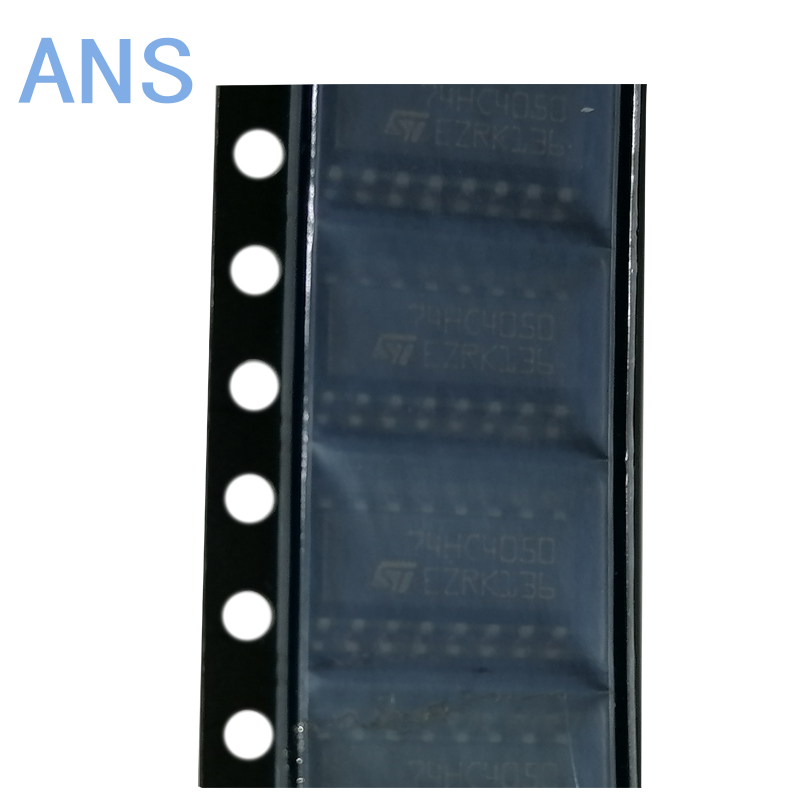

M74HC4050RM13TR
