Product Descriptions
The TSC2046E is the next-generation version of the ADS7846 4-wire touch screen controller, supporting a low-voltage I/O interface from 1.5V to 5.25V. The TSC2046E is 100% pin-compatible with the existing ADS7846, and drops into the same socket. This design allows for an easy upgrade of current applications to the new version. The TSC2046E also has an on-chip 2.5V reference that can be used for the auxiliary input, battery monitor, and temperature measurement modes. The reference can also be powered down when not used to conserve power. The internal reference operates down to a supply voltage of 2.7V, while monitoring the battery voltage from 0V to 6V.
The low-power consumption of < 0.75mW typ at 2.7V (reference off), high-speed (up to 125kHz sample rate), and on-chip drivers make the TSC2046E an ideal choice for battery-operated systems such as personal digital assistants (PDAs) with resistive touch screens, pagers, cellular phones, and other portable equipment. The TSC2046E is available in TSSOP-16, QFN-16, and VFBGA-48 packages and is specified over the –40°C to +85°C temperature range.
Product Features
Same Pinout as ADS7846
2.2V to 5.25V Operation
1.5V to 5.25V Digital I/O
Internal 2.5V Reference
Direct Battery Measurement (0V to 6V)
On-Chip Temperature Measurement
Touch-Pressure Measurement
QSPI? and SPI? 3-Wire Interface
Auto Power-Down
Exceeds IEC 61000-4-2 ESD Requirements
? 15kV Contact Discharge
? No External Components Needed
Available In TSSOP-16, QFN-16, and VFBGA-48 Packages
Product Applications
Personal Digital Assistants
Portable Instruments
Point-of-Sale Terminals
Pagers
Touch Screen Monitors
Cellular Phones
Specifications
| Part# | TSC2046EIPW |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Touch Screen Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | REEL |
| Product Status | Active |
| Touchscreen | 4 Wire Resistive |
| Resolution (Bits) | 12 b |
| Interface | SPI |
| Voltage Reference | Internal |
| Voltage - Supply | 2.2V ~ 5.25V |
| Current - Supply | 780 μA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | TSC2046 |

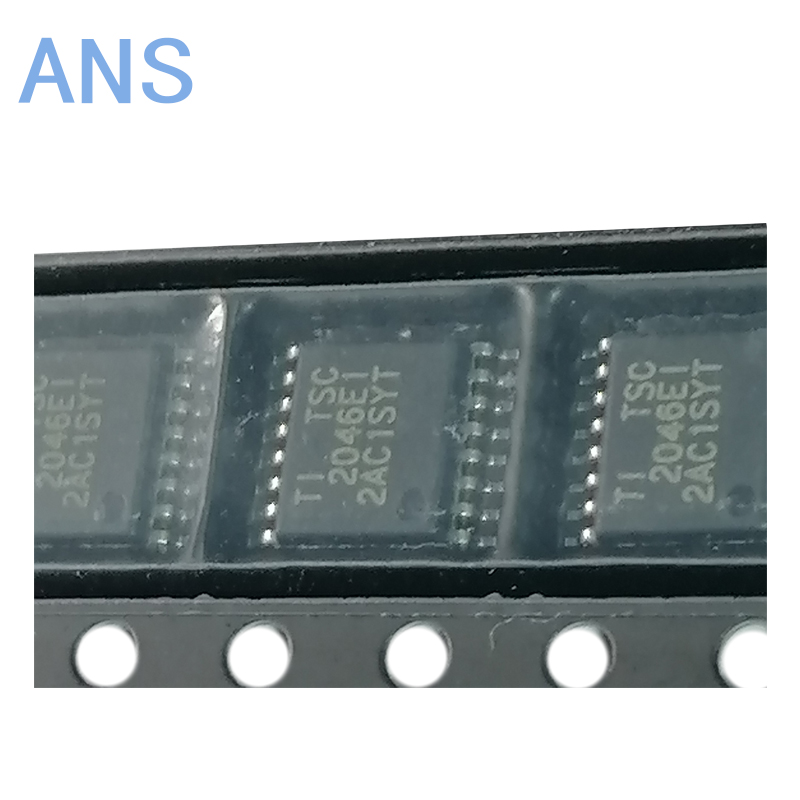

Actual product photos
