Product Descriptions
Increasing speed
The standard and integrated universal serial controllers Z16C30, Z16C35, and Z16C32 offer faster performance. Features include:
? Dual full-duplex channels (Z16C30)
? Single full-duplex channel (Z16C32)
? Accommodates two baud rate generators and one digital phase-locked loop (on each channel)
? 2 DMA control signals per channel (Z80C30/Z85C30 only)
Offering a fully integrated solution
The standard serial and integrated communications controllers, Z85C30 and Z16C35, allow you to easily implement a fully integrated solution for many networking applications. The chips’ features include:
? Dual full-duplex channels
? Ability to accommodate a crystal oscillator, baud rate generator, and digital phase-locked loop on each channel
? Processing speeds up to 4 Mbps
? Multi-protocol format (async, monosync, bisync, SDLC/HDLC, SDLC/HDLC loop)
? Encodes in the following modes: NRZ, NRZI, FM0, FM1, and Manchester
? CRC-16 or CRC-CCITT error detection
? 1-byte transmit FIF0/3-byte receive FIF0
? 2 transmit and 2 receive DMA channels (16C35 only)
Product Features
? Processing speeds up to 10 Mbps (Z16C30)
? Processing speeds up to 20 Mbps (Z16C32)
? Multi-protocol format (async, monosync, slaved monosync, bisync, isochronous, nine-bit, SDLC/HDLC, SDLC/HDLC loop)
? Encodes in the following modes:
NRZ, NRZI-Mark,NRZI-Space, Bi-Phase-Mark (FM1), Bi-Phase-Space (FM0), Bi-Phase-Level (Manchester), Differential Bi-Phase-Level
? CRC-32, CRC-16, and CRC-CCITT
? 32-byte transmit FIF0/32-byte receive FIF0
? 2 DMA control signals per channel (16C30 only)
? Transmit and receive DMA controllers with single buffer, pipelined, array, and linked-list modes (16C32 only)
Specifications

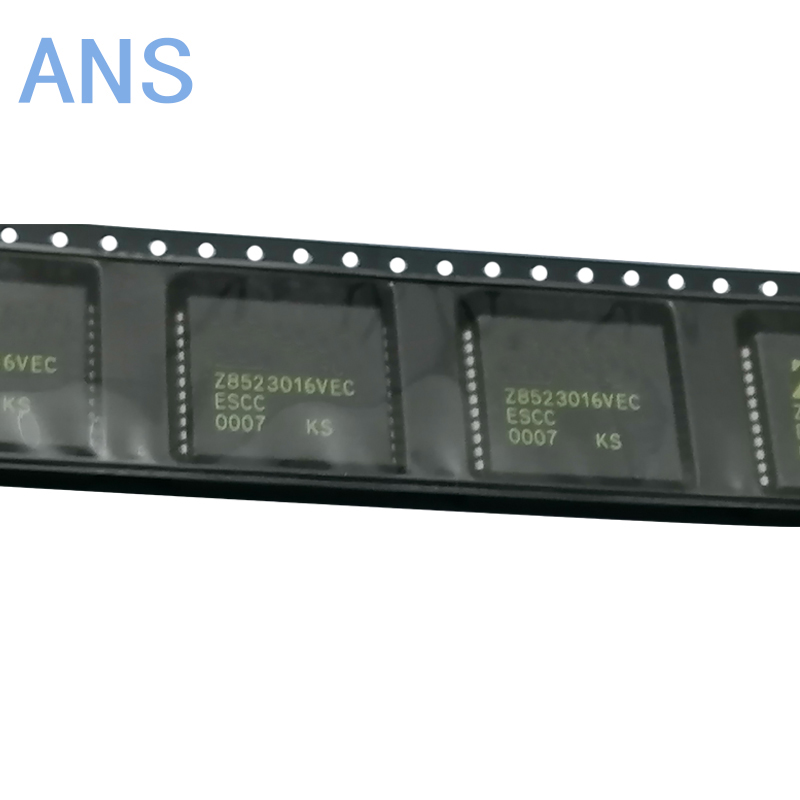

| Part# | Z8523016VEC |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Specialized | |
| Mfr | Zilog |
| Series | - |
| Package | REEL |
| Product Status | Obsolete |
| Applications | - |
| Interface | Bus |
| Voltage - Supply | 4.5V ~ 5.5V |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC |
| Mounting Type | Surface Mount |
| Base Product Number | Z85230 |
