Product Descriptions
The UCC280x family of high-speed, low-power integrated circuits contain all of the control and drive components required for off-line and DC-to-DC fixed frequency current-mode switching mode power supplies with minimal parts count.
These devices have the same pin configuration as the UCx84x family, and also offer the added features of internal full-cycle soft start and internal leading-edge blanking of the current-sense input.
Product Features
? 100-μA typical starting supply current
? 500-μA typical operating supply current
? Operation up to 1 MHz
? Internal soft start
? Internal fault soft start
? Internal leading-edge blanking of the current sense signal
? 1-A totem-pole output
? 70-ns typical response from current-sense to gate drive output
? 1.5% tolerance voltage reference
? Same pinout as UC3842 and UC3842A
Product Applications
? Switch mode power supplies (SMPS)
? DC-to-DC converters
? Power modules
? Automotive PSU
? Battery-operated PSU
Specifications
| ANSM-Part# | UCC2801D |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Supply Controllers, Monitors | |
| Mfr | - |
| Series | UCC280x |
| Package | Tube |
| Product Status | Active |
| Applications | PWM Controller |
| Voltage - Input | -0.3V ~ 6.3V |
| Voltage - Supply | 7.4V ~ 11V |
| Current - Supply | 500μA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | UCC2801 |

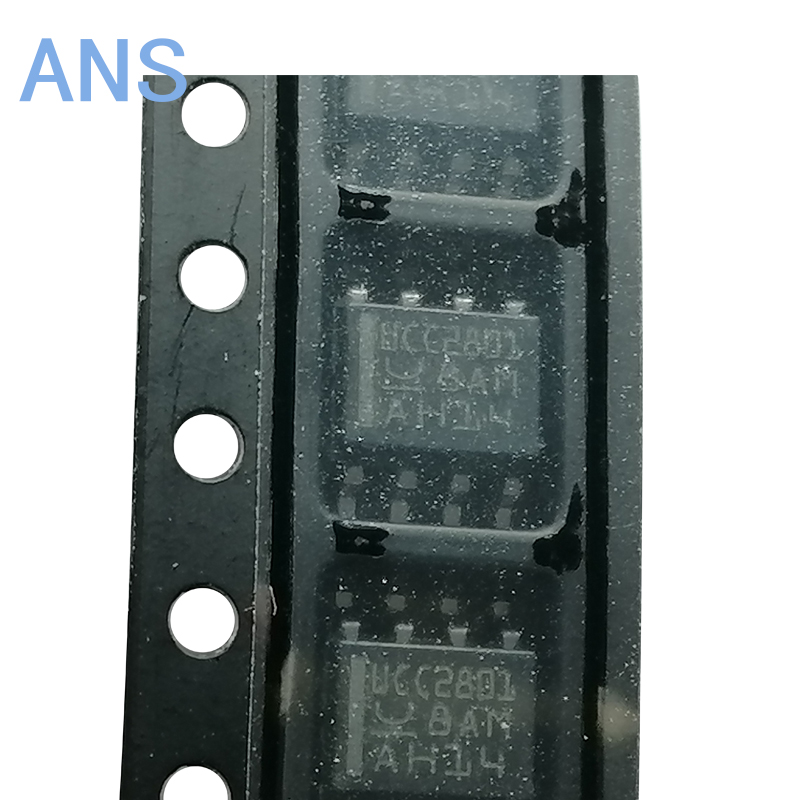

Actual product photos
