| Brand | Meiji |
| model | MK-02-E-ATX |
| Article number | 101074030 |
| Applicable type | Desktop computer |
| Case type | Rack |
| Compatible motherboard | ATX, FLEX, ITX, MicroATX, E-ATX |
| material quality | 0.8mm steel plate baked with black paint |
| Standard power supply | No standard power supply |
| Front interface | nothing |
| size | 44 * 25 * 3.5 (cm) |
| Product weight | 1.2 (KG) |
| Packaging List | Main board * 1pcs, rear board * 1pcs, side reinforced fixing board * 2pcs+screw accessory kit * 1 set |
| Chassis structure | E-ATX/ATX/M-ATX/ITX |
| Chassis type | server |
| Power position | Upward |

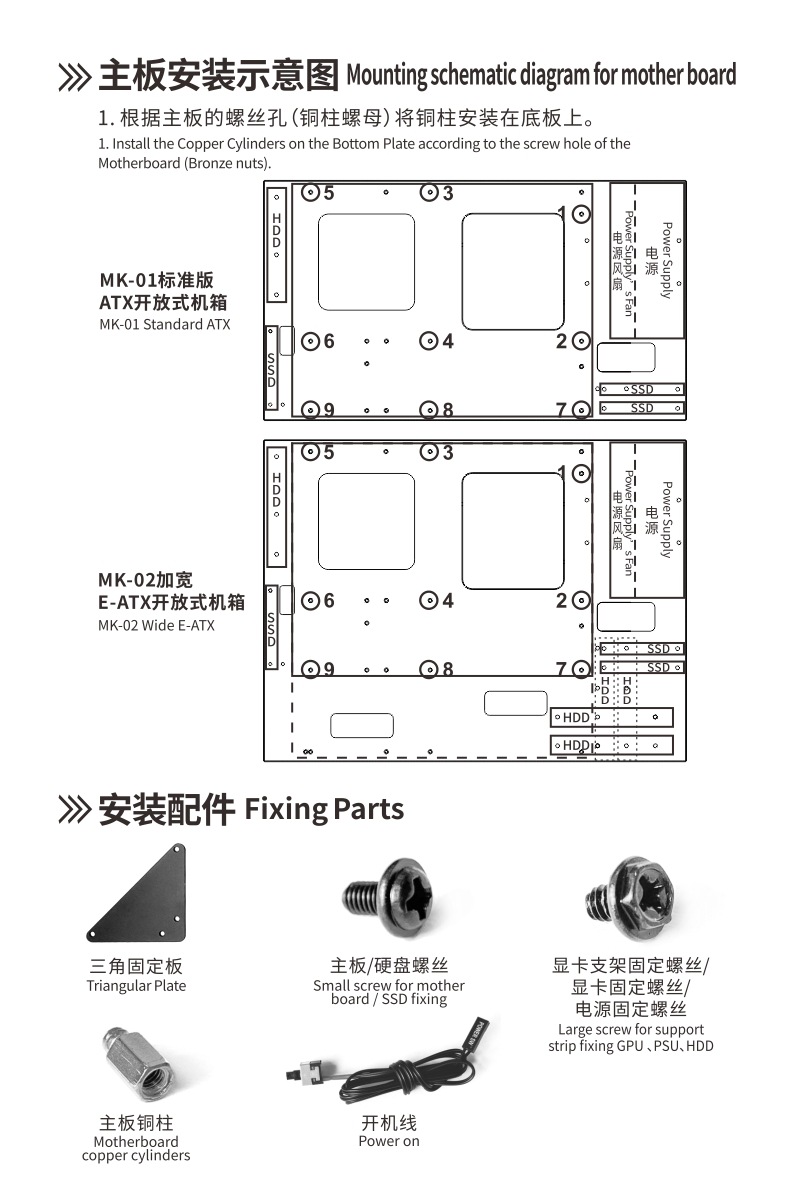

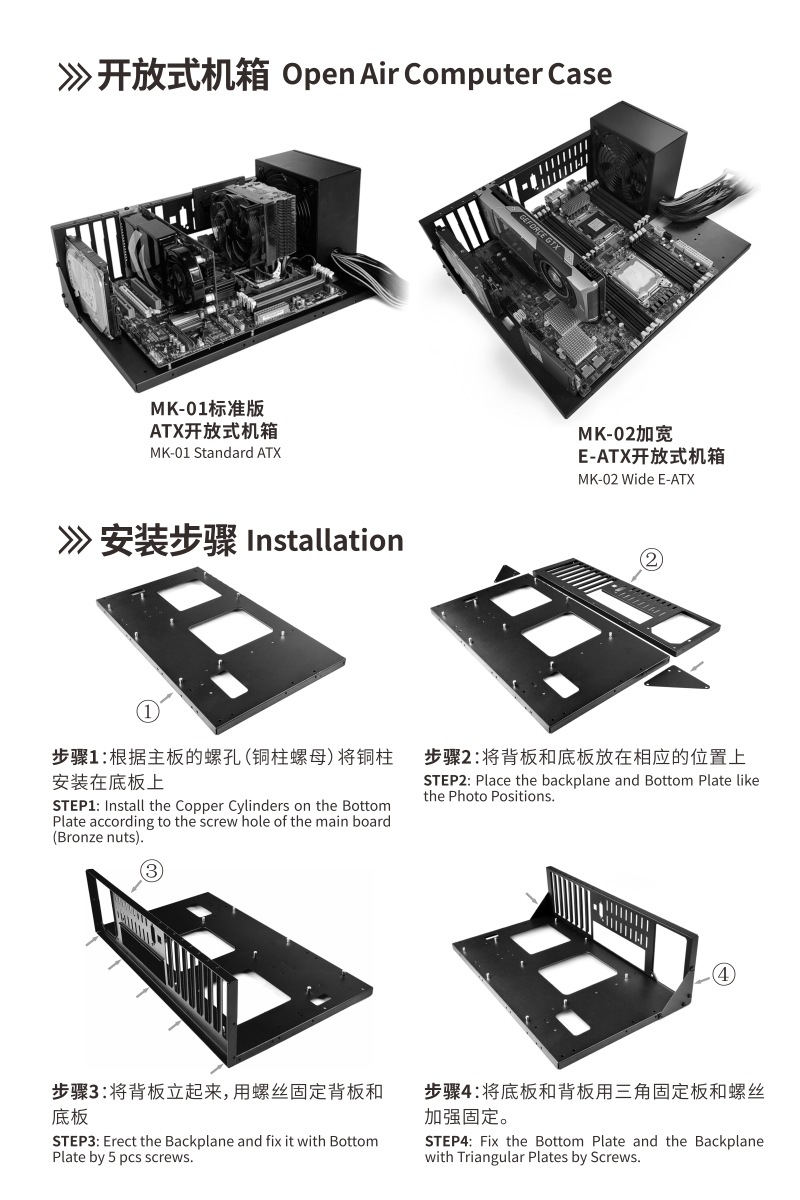

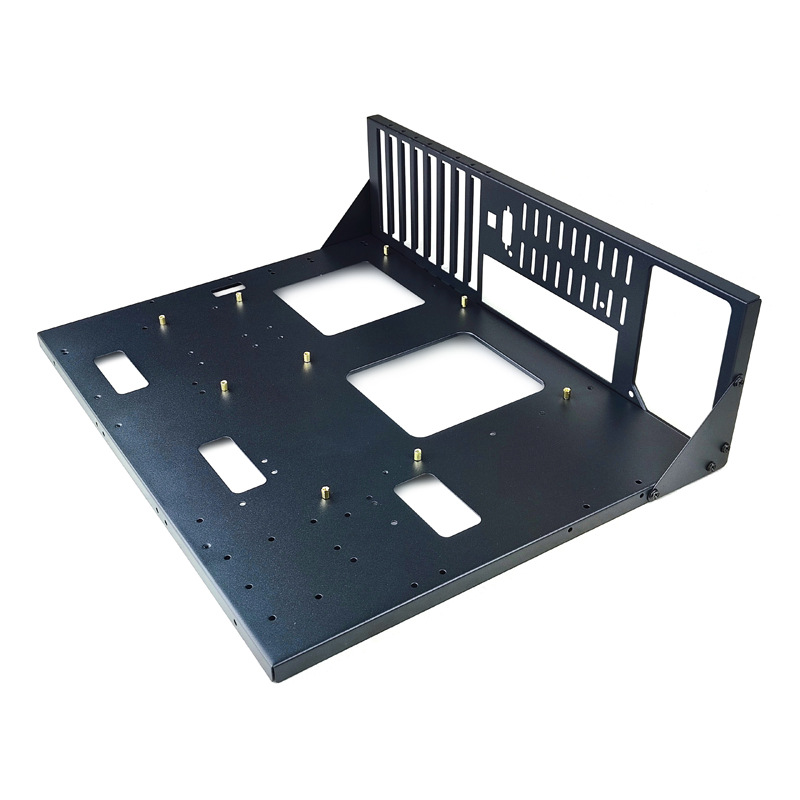

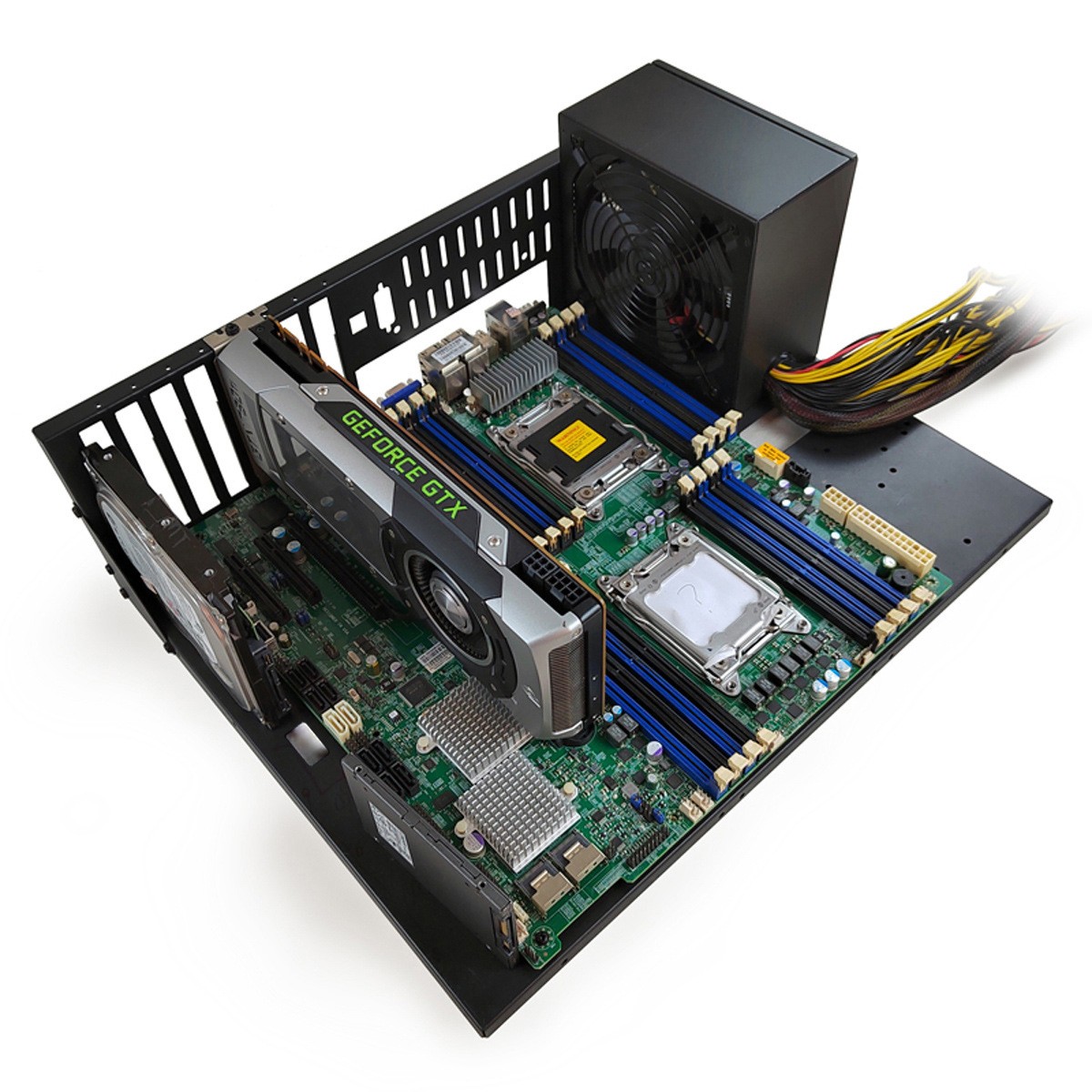

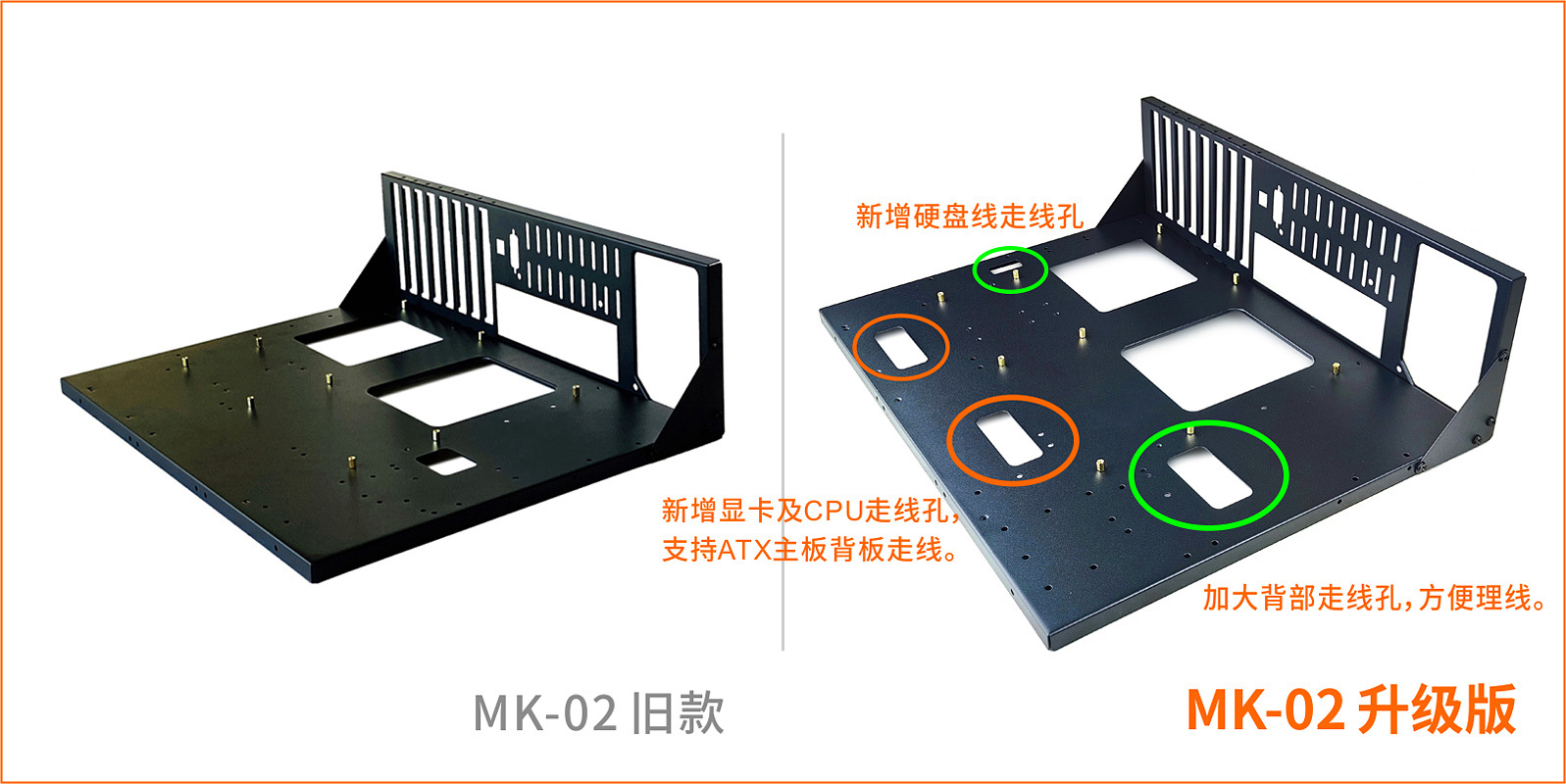

Model: MK-02 Widened E-ATX Open Chassis Material: High quality 0.8mm SPCC steel plate, surface painted with black sand grain paint; Number of supported graphics cards: According to the motherboard situation, the length and width of the graphics card are not limited; Support motherboard: support motherboards within 305 * 330mm: E-ATX, ATX, Micro ATX, ITX; Support power supply: standard ATX power supply, reference size 150mm * 86mm * (140-250) mm; Supports 2 SSDs and 2 HDDs; Product size after installation: 440 * 345 * 128mm; Basic logistics information After installing the power supply, the size of the product is 440 * 345 * 160mm; Net weight of product: 1.2KG
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
Exhibition
Advantages
FAQ

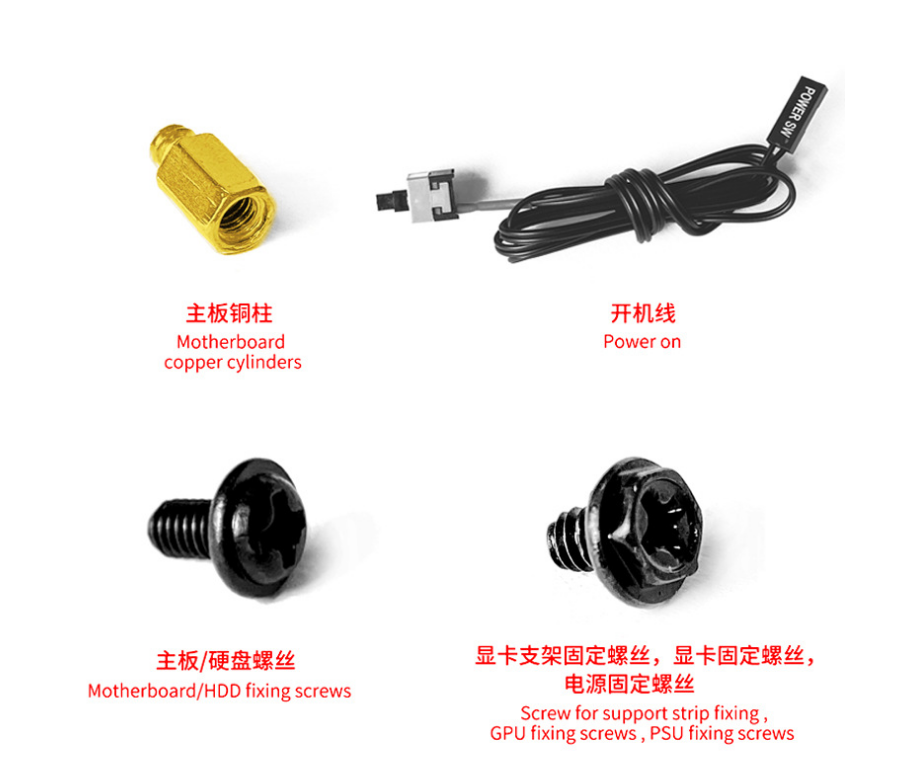

Q: What is the weight of the product? Answer: 1.2Kg Q: What accessories does the product include? Answer: 1 power on cable, 1 fixed motherboard backplane, 1 fixed IO, rear board for graphics and expansion cards, and 2 triangular reinforced side fixing plates; One set of fixing screws for the main board copper pillar, main board, power supply, graphics card, and hard drive;Q: What motherboards and power supplies are supported by the ATX version of the motherboard; Answer: Supports all ATX, M-ATX, and ITX motherboards; Support standard or extended ATX power supply; Q: What motherboards does the E-ATX version of the motherboard support? Answer: The E-ATX version can support the vast majority of E-ATX motherboards on the market, and some E-ATX motherboards may have 1-2 incorrect screw holes, It can be supported by the attached plastic base; Q: Which graphics card is supported and how many graphics cards are supported? Answer: All graphics cards are supported, regardless of length or width; The number of graphics cards needs to be determined based on the PCIE card slot on the motherboard and the thickness of the graphics card, usually 3-7 cards;Q: Can a fan be installed? Answer: Three 12cm fans can be installed on the other side of the base plate (if the graphics card is too long, it will cause interference and cannot be installed); It can also be used to install 120，240，360 water-cooled exhaust;Q: What is the maximum height that the CPU heat sink can support? Answer: The height of the CPU heat sink is not limited;
