   Product Features

?  PIC16 like instruction set

?  8-layer hardware stack x 11 bits

?  2T or 4T instruction cycle

?  2Kx14b program storage space (16 bytes/page)

?  256x8b data EEPROM (16 bytes/page)

?  Data EEPROM in Application Programming

?  128x8b SRAM

?  1 x Timer with 8-bit prescaler 0

?  1 x Timer with 8-bit prescaler 2

?  WDT with 7-bit prescaler, overflow frequency is approximately 16-2048ms

?  Power on delay counter PWRT

?  Low power mode SLEEP

?  Multiple wake-up sources, INT、 Port change interrupt WDT、 Data EEPROM write completed, etc

?  Built in high-speed 16M RC oscillator

?  Built in low-speed 32K RC oscillator

?  Supports external crystal oscillator 16M or 32K, as well as external clock mode

Clock missing detection

Dual speed startup mode (in crystal or external clock mode)

?  Built in 2 high-speed and high-precision comparators

Programmable on-chip reference voltage

The comparison results can be directly output

?  Up to 16 universal IO, 18 chip pins

?  7 IO with independent pull-up control

?  Port change interrupt, RA0-RA7

?  Support ICSP in system programming

?  Support online debugging

?  Program Space Protection

?  Working voltage range: 2.0V-5.5V

?  Maximum clock operating frequency: 16MHz

? FSYS=8MHz: 2.0V-5.5V

? FSYS=16MHz: 2.7V-5.5V

Encapsulation types: SOP8, DIP8, SSOP10, SOP14, DIP14, SOP16, DIP16, SOP18, DIP18, TSSOP20

    Specifications

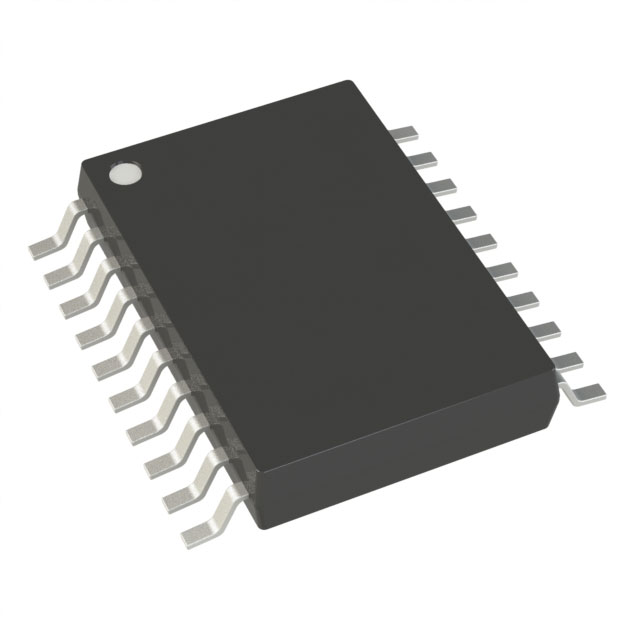

    Actual product photos
