Products Features

Core

? 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline

? Extended instruction set

Memories

? Program memory: 8 Kbyte Flash; data retention 20 years at 55 °C after 10 kcycle

? Data memory: 640 byte true data EEPROM; endurance 300 kcycle

? RAM: 1 Kbyte

Clock, reset and supply management

? 2.95 to 5.5 V operating voltage

? Flexible clock control, 4 master clock sources

– Low power crystal resonator oscillator

– External clock input

– Internal, user-trimmable 16 MHz RC

– Internal low-power 128 kHz RC

? Clock security system with clock monitor

? Power management:

– Low-power modes (wait, active-halt, halt)

– Switch-off peripheral clocks individually

? Permanently active, low-consumption poweron and power-down reset

Interrupt management

? Nested interrupt controller with 32 interrupts

? Up to 28 external interrupts on 7 vectors

Timers

? Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization

? 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)

? 8-bit basic timer with 8-bit prescaler

? Auto wake-up timer

? Window watchdog and independent watchdog timers

Communication interfaces

? UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode

? SPI interface up to 8 Mbit/s

? I2C interface up to 400 kbit/s

Analog to digital converter (ADC)

? 10-bit, ±1 LSB ADC with up to 7 multiplexed channels + 1 internal channel, scan mode and analog watchdog

? Internal reference voltage measurement

I/Os

? Up to 28 I/Os on a 32-pin package including 21 high sink outputs

? Highly robust I/O design, immune against current injection

Unique ID

? 96-bit unique key for each device

Specifications

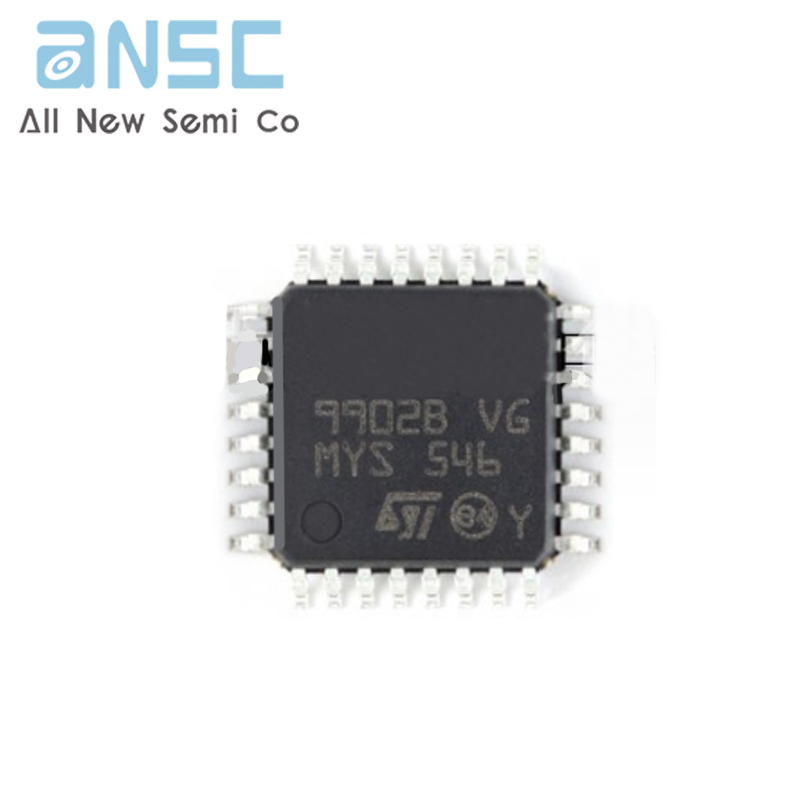

Actual product photos
