Products Features

Core

? 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline

? Extended instruction set

Memories

? Program memory: 8 Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles

? RAM: 1 Kbyte

? Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles

Clock, reset and supply management

? 2.95 V to 5.5 V operating voltage

? Flexible clock control, 4 master clock sources

– Low-power crystal resonator oscillator

– External clock input – Internal, user-trimmable 16 MHz RC

– Internal low-power 128 kHz RC

? Clock security system with clock monitor

? Power management

– Low-power modes (wait, active-halt, halt)

– Switch-off peripheral clocks individually

– Permanently active, low-consumption power-on and power-down reset

Interrupt management

? Nested interrupt controller with 32 interrupts

? Up to 27 external interrupts on 6 vectors

Timers

? Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization

? 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)

? 8-bit basic timer with 8-bit prescaler

? Auto wakeup timer

? Window and independent watchdog timers

Communications interfaces

? UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode

? SPI interface up to 8 Mbit/s

? I 2C interface up to 400 Kbit/s

Analog to digital converter (ADC)

? 10-bit ADC, ± 1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog

I/Os

? Up to 28 I/Os on a 32-pin package including 21 high-sink outputs

? Highly robust I/O design, immune against current injection

Specifications

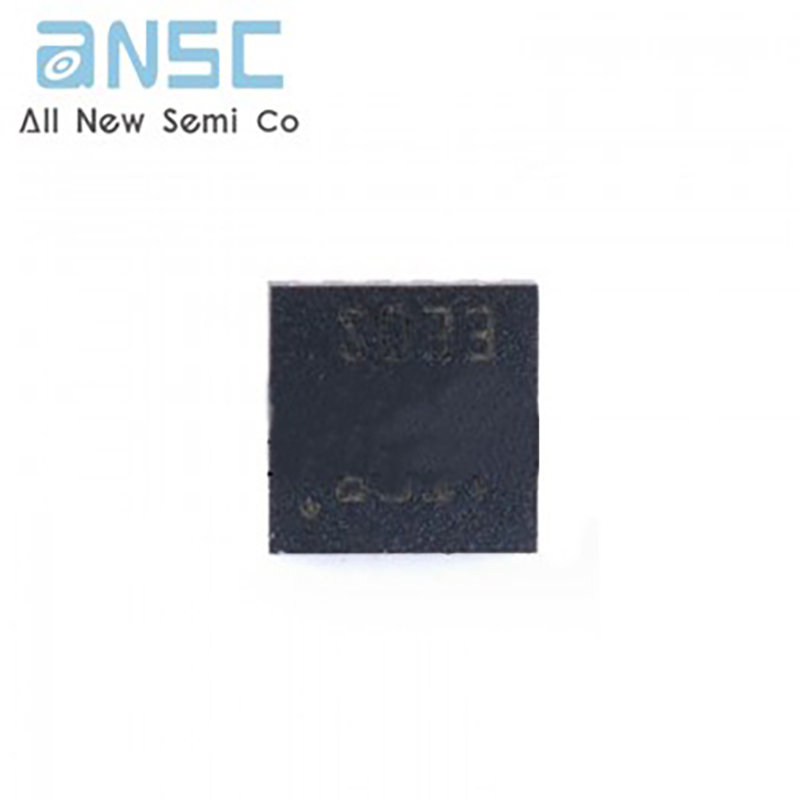

Actual product photos
