Product Descriptions

The TPS6282x is an easy-to-use, synchronous stepdown DC/DC converters family with a very low quiescent current of only 4μA. Based on the DCSControl topology, the device provides a fast transient response. The internal reference allows to regulate the output voltage down to 0.6V with a high feedback voltage accuracy of 1% over the junction temperature range of –40°C to 125°C. The family devices are pin-to-pin and BOM-to-BOM compatible. The entire design requires a small 470nH inductor, a single 4.7μF input capacitor, and two 10μF or single 22μF output capacitor.

The TPS6282x is available in two flavors. The first includes an automatically entered power save mode to maintain high efficiency down to very light loads for extending the system battery run-time. The second runs in forced-PWM maintaining a continuous conduction mode to make sure of the least ripple in the output voltage and a quasi-fixed switching frequency. The device features a Power-Good signal and an internal soft-start circuit. The device is able to operate in 100% mode. For fault protection, the device incorporates a HICCUP short-circuit protection as well as a thermal shutdown. The device is available in a 6-pin 1.5mm × 1.5mm QFN package, offering the highest power density design.

Product Features

? Available as an integrated-inductor power module:TPSM82821, TPSM82822, and TPSM82823

? DCS-Control topology

? 1 PERCENT feedback or output voltage accuracy (full temperature range)

? Up to 97 PERCENT efficiency

? 26mΩ and 25mΩ internal power MOSFETs

? 2.4V to 5.5V input voltage range

? 4μA operating quiescent current

? 2.2MHz switching frequency

? 0.6V to 4V adjustable output voltage

? Power save mode for light load efficiency

? 100 PERCENT duty cycle for lowest dropout

? Active output discharge

? Power-good output

? Thermal shutdown protection

? Hiccup short-circuit protection

? A forced-PWM version for CCM operation

? Create a custom design using the TPS6282x with the WEBENCH? Power Designer

Product Applications

? Solid state drive

? Portable electronics

? Analog security and IP network cameras

? Industrial PC

? Multifunction printers

? Generic point of load

Specifications

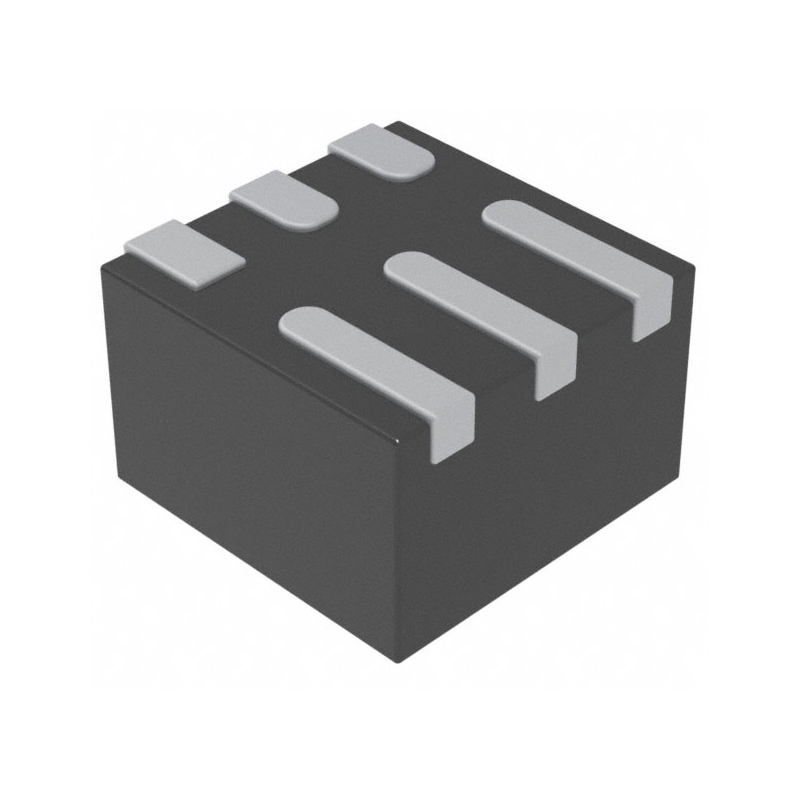

Actual product photos
