Product Details

The AT25DF161 is a serial interface Flash memory device designed for use in a widevariety of high-volume consumer based applications in which program code is shad-owed from Flash memory into embedded or external RAM for execution. The flexibleerase architecture of the AT25DF161, with its erase granularity as small as 4-Kbytes,makes it ideal for data storage as well, eliminating the need for additional data storageEEPROM devices.

Product Features

?Single 2.7V - 3.6V Supply

?Serial Peripheral Interface (SPI) Compatible

–  Supports SPI Modes 0 and 3

–  Supports RapidS Operation

–  Supports Dual-Input Program and Dual-Output Read

?Very High Operating Frequencies

–  100 MHz for RapidS

–  85 MHz for SPI

–  Clock-to-Output (tV) of 5 ns Maximum

?Flexible, Optimized Erase Architecture for Code + Data Storage Applications

–  Uniform 4-Kbyte Block Erase

–  Uniform 32-Kbyte Block Erase

–  Uniform 64-Kbyte Block Erase

–  Full Chip Erase

?Individual Sector Protection with Global Protect/Unprotect Feature

–  32 Sectors of 64-Kbytes Each

?Hardware Controlled Locking of Protected Sectors via WPPin

?Sector Lockdown

–  Make Any Combination of 64-Kbyte Sectors Permanently Read-Only

?128-Byte Programmable OTP Security Register

?Flexible Programming

–  Byte/Page Program (1 to 256 Bytes)

?Fast Program and Erase Times

–  1.0 ms Typical Page Program (256 Bytes) Time

–  50 ms Typical 4-Kbyte Block Erase Time

–  250 ms Typical 32-Kbyte Block Erase Time

–  400 ms Typical 64-Kbyte Block Erase Time

?Program and Erase Suspend/Resume

?Automatic Checking and Reporting of Erase/Program Failures

?Software Controlled Reset

?JEDEC Standard Manufacturer and Device ID Read Methodology

?Low Power Dissipation

–  5 mA Active Read Current (Typical at 20 MHz)

–  5 μA Deep Power-Down Current (Typical)

?Endurance: 100,000 Program/Erase Cycles

?Data Retention: 20 Years

?Complies with Full Industrial Temperature Range

?Industry Standard Green (Pb/Halide-free/RoHS Compliant) Package Options

–  8-lead SOIC (150-mil and 208-mil wide)

–  8-pad Ultra Thin DFN (5 x 6 x 0.6 mm)

Specifications

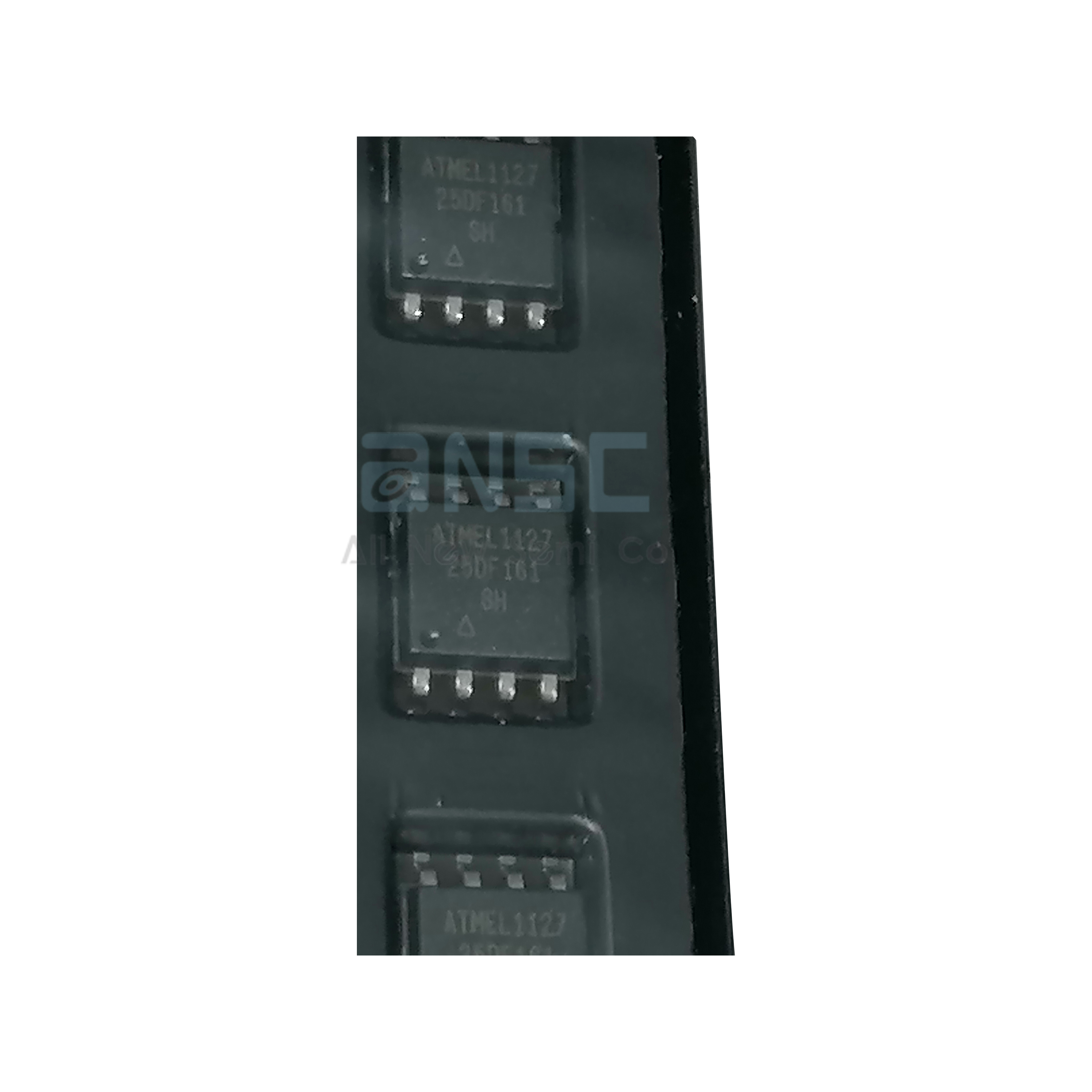

Actual product photos
