Product Details
|
DESCRIPTION The L78S00 series of three-terminal positive regulators is available in TO-220 and TO-3 packages and with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 2A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents. ■ OUTPUT CURRENT TO 2A ■ OUTPUT VOLTAGES OF 5 ; 7.5; 9 ; 10 ; 12 ; 15 ; 18 ; 24V ■ THERMAL OVERLOAD PROTECTION ■ SHORT CIRCUIT PROTECTION ■ OUTPUT TRANSISTOR SOA PROTECTION |
Product Description
| Type | Description |

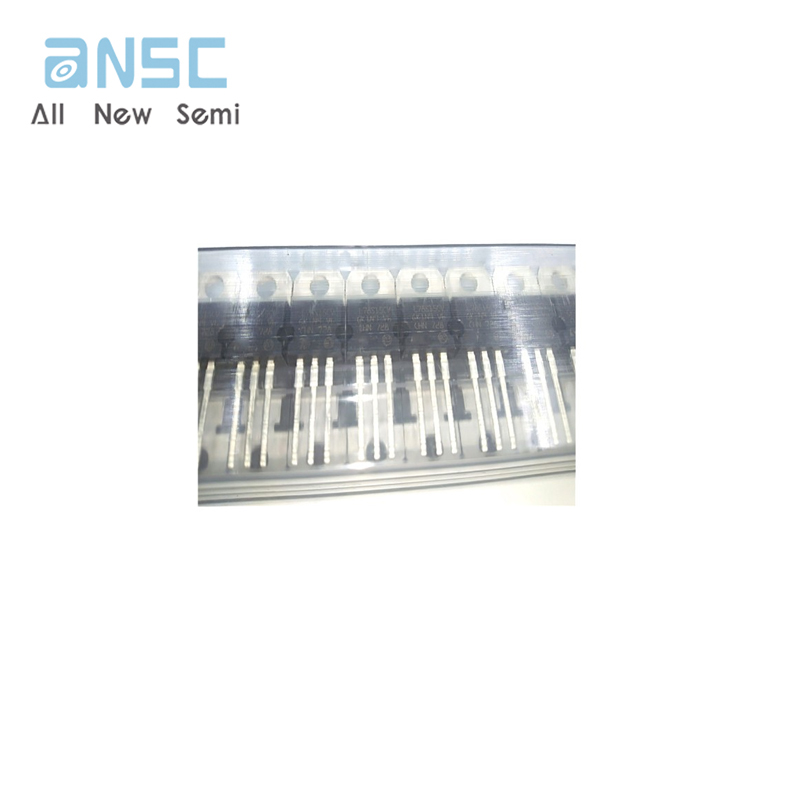

| ANSC PART# | ANSC- L78S15CV |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 8 mA |
| PSRR | 46dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | L78S15 |
Product Photos

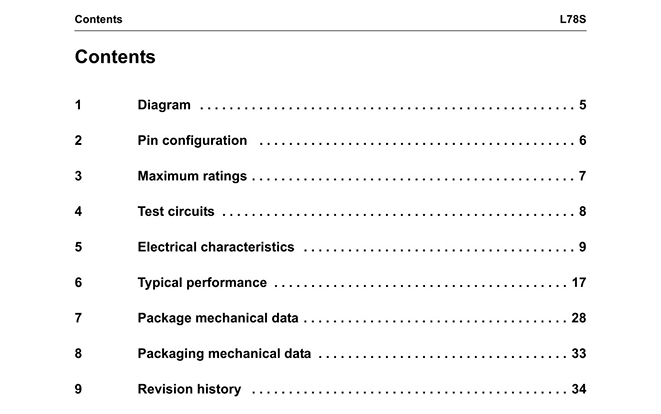

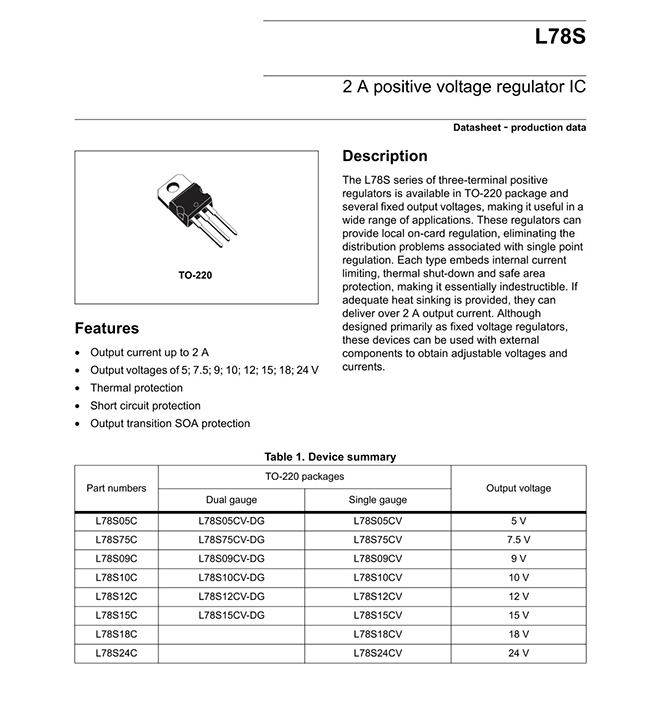

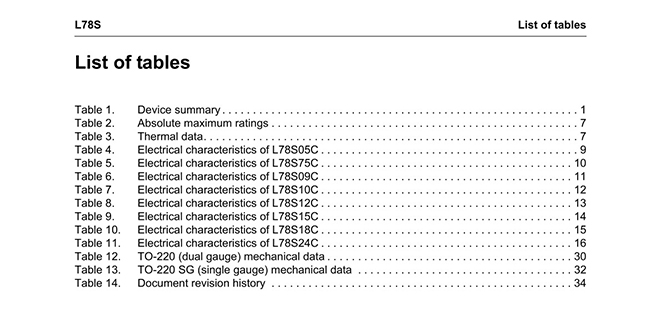

Product datasheet
For more information, please download
