Product Details
DESCRIPTION
Dual Schottky rectifier suited for switch Mode Power Supply and high frequency DC to DC converters.
Packaged in TO-220AB, D2PAK and I2PAK, this device is intended for use in low voltage high frequency inverters, free wheeling and polarity protection applications.
■ VERY SMALL CONDUCTION LOSSES
■ NEGLIGIBLE SWITCHING LOSSES
■ EXTREMELY FAST SWITCHING
■ LOW FORWARD VOLTAGE DROP FOR HIGHER EFFICIENCY
■ LOW THERMAL RESISTANCE
■ AVALANCHE CAPABILITY SPECIFIED FEATURES AND BENEFITS
Product Description
| Type | Description |
| ANSC PART# | ANSC -TPS2051DR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:01 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | TPS2051 |

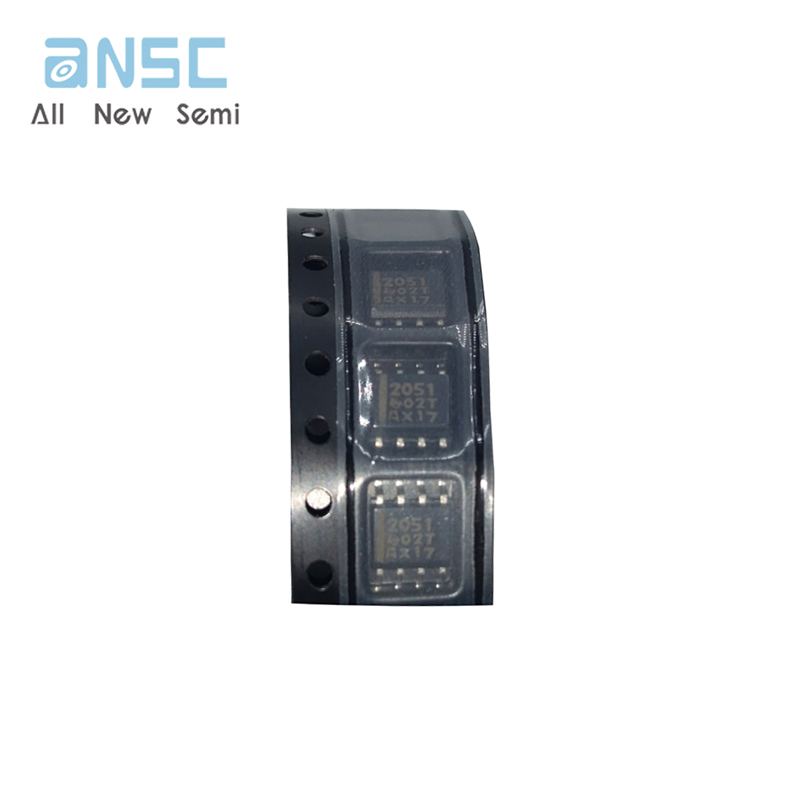

Product Photos

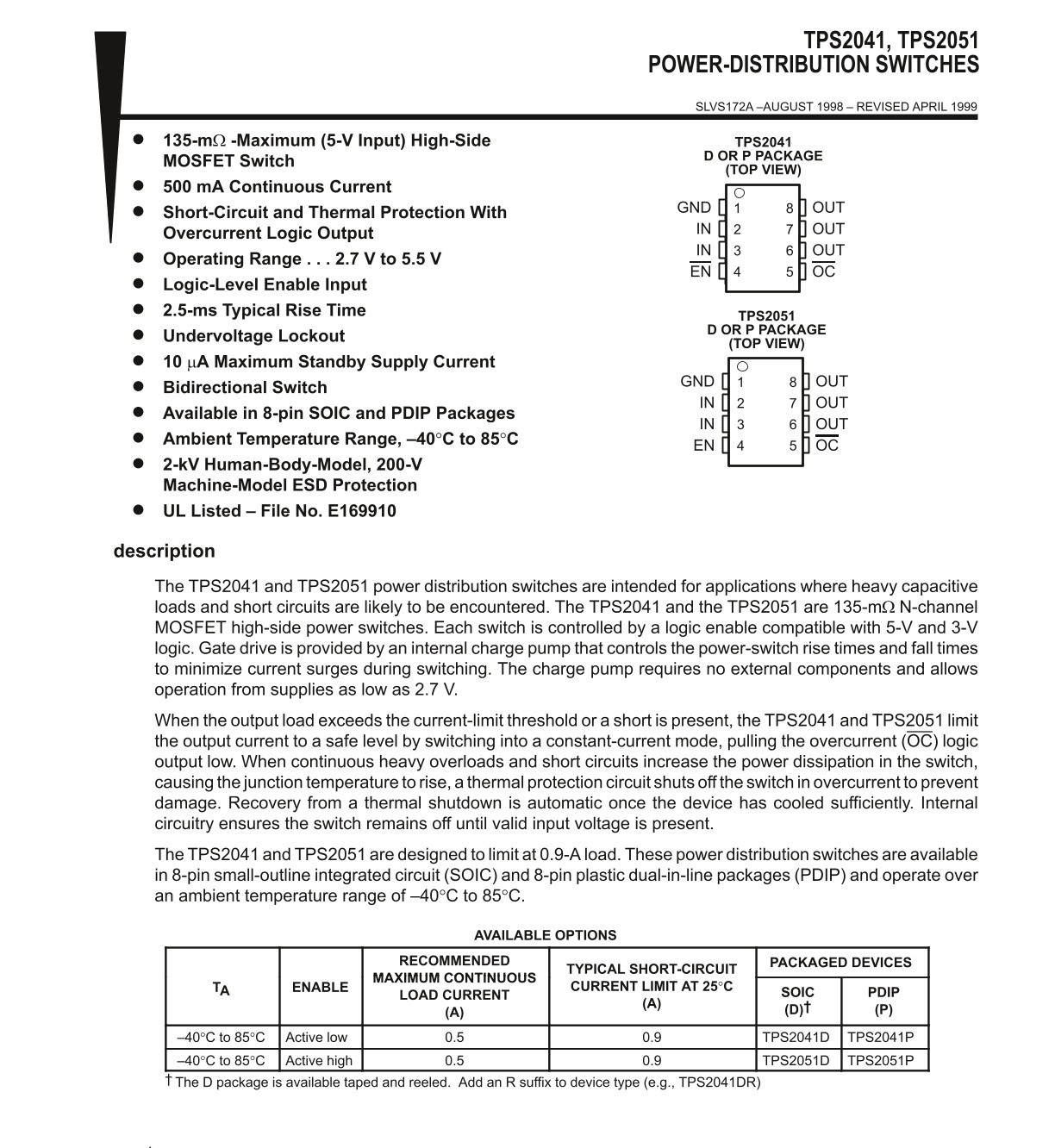

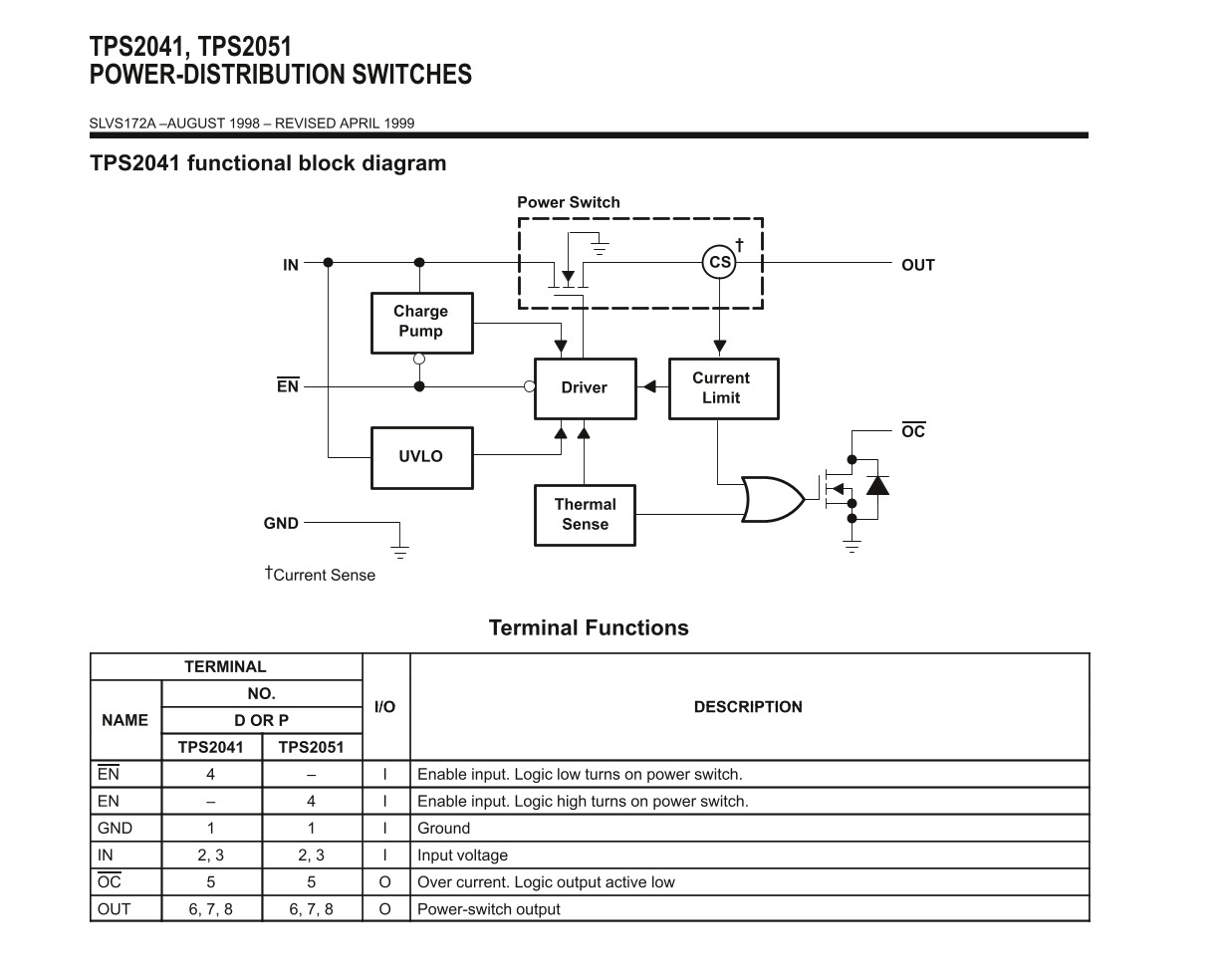

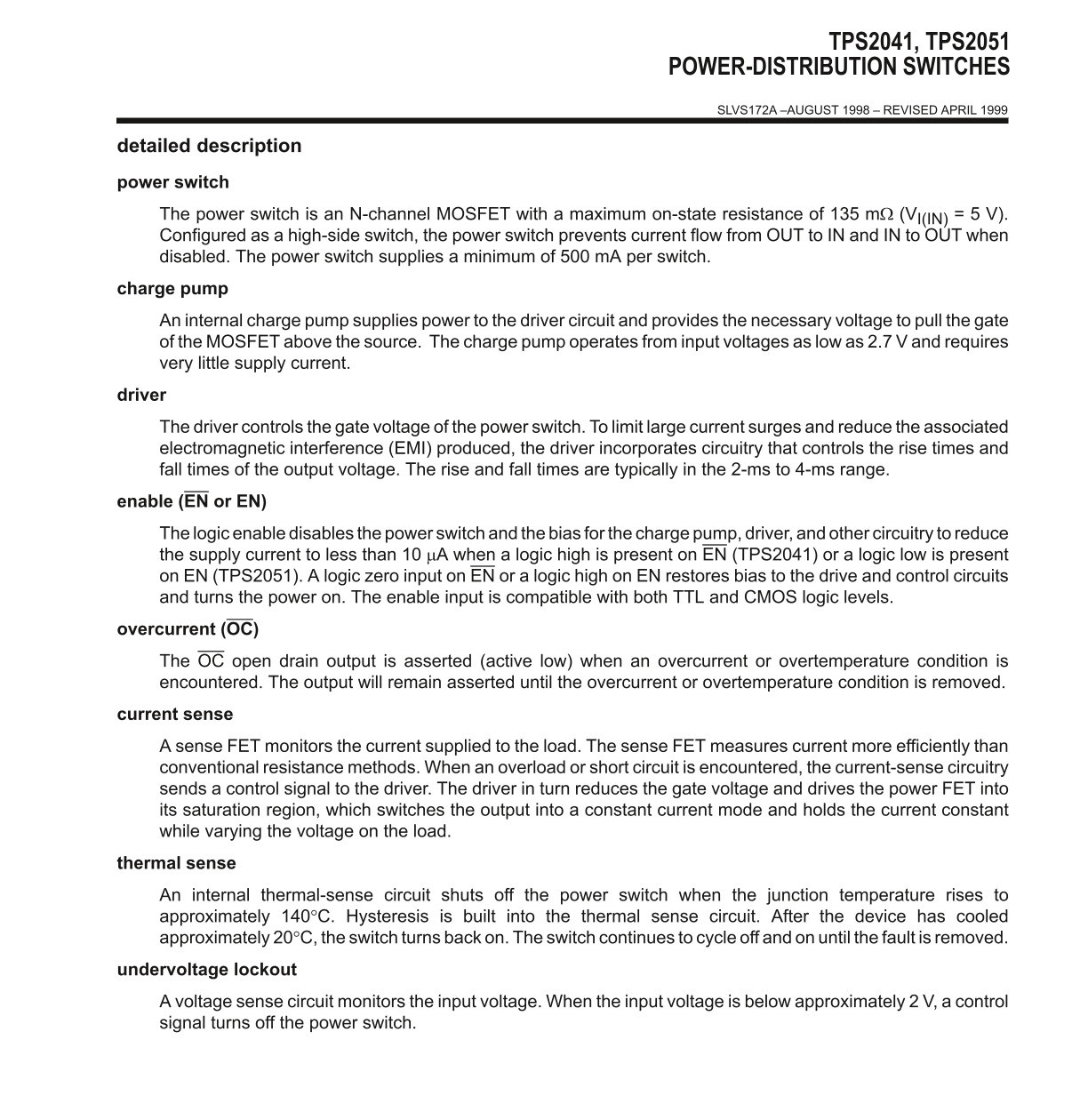

Product datasheet
For more information, please download
