Product Details
San Ace 40
sensor Refer to Page 261
?Material ……………………Frame: Plastics (Flammability: UL94V-0),
Impeller:Plastics (Flammability: UL94V-1)
?Life Expectancy …………Varies for each model （L10:Survival rate:90% at 60℃,
rated voltage, and continuously run in a free air state）
?Lead Wire …………………red black or blue Sensor yellow
?Storage Temperature …－30℃to ＋70℃（Non-condensing）

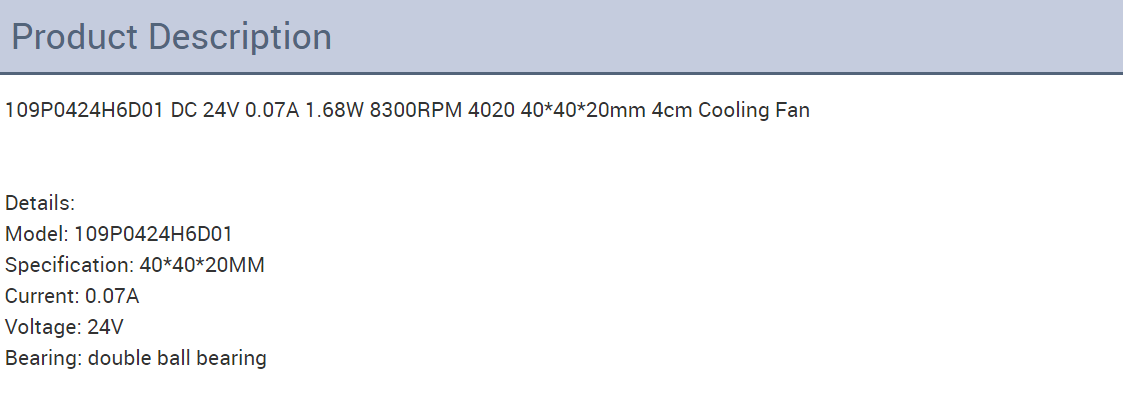

Product Description
Type | Description |
|---|---|
PART# | 109P0424H6D01 |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | San Ace 40 |
Packaging | Box |
Part Status | Active |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 40mm L x 40mm H |
Width | 20.00mm |
Air Flow | 8.2 CFM (0.230m3/min) |
Static Pressure | 0.280 in H2O (69.7 Pa) |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | Locked Rotor Sensor |
Noise | 35.0dB(A) |
Power (Watts) | 1.68 W |
RPM | 8300 RPM |
Termination | 3 Wire Leads |
Ingress Protection | - |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
Approval Agency | CSA, TUV, UL |
Weight | 0.101 lb (45.81 g) |
Current Rating (Amps) | 0.070A |
Voltage Range | 12 ~ 27.6VDC |
Material - Frame | Plastic |
Material - Blade | Plastic |
Lifetime @ Temp. | 60000 Hrs @ 60°C |
Base Product Number | 109P0424 |

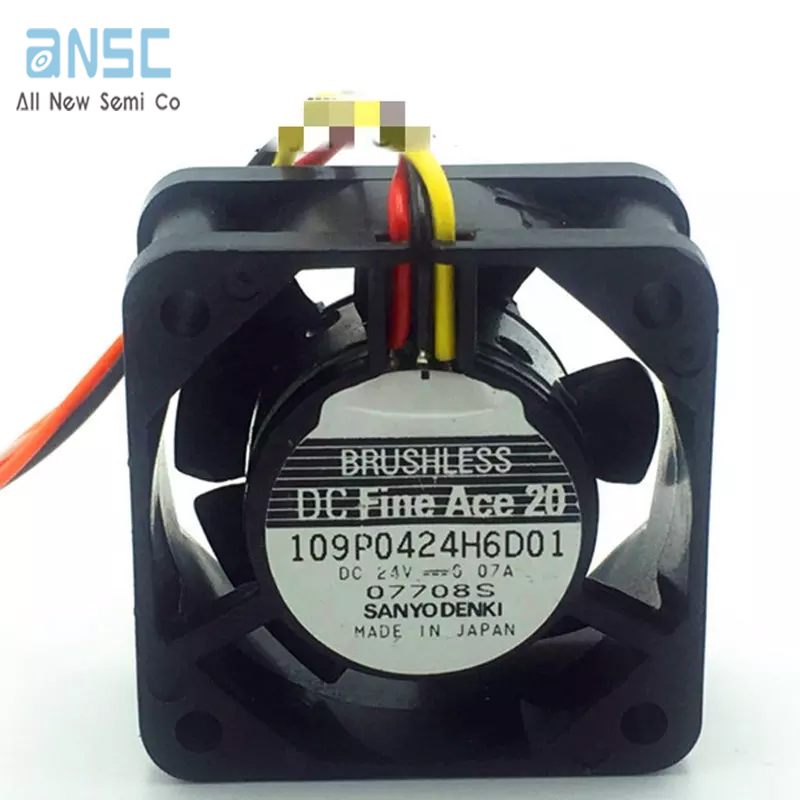

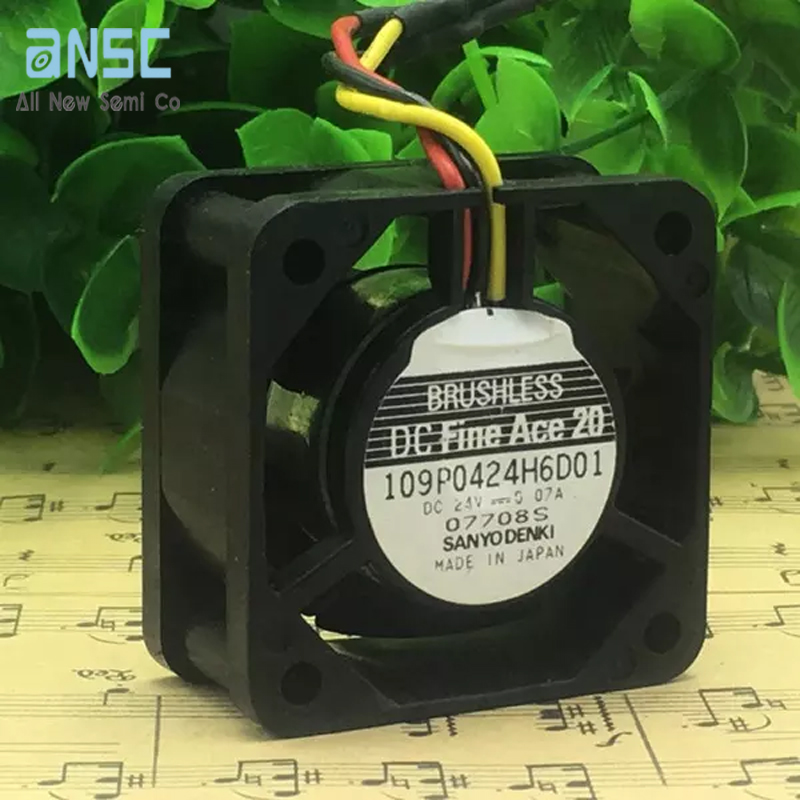

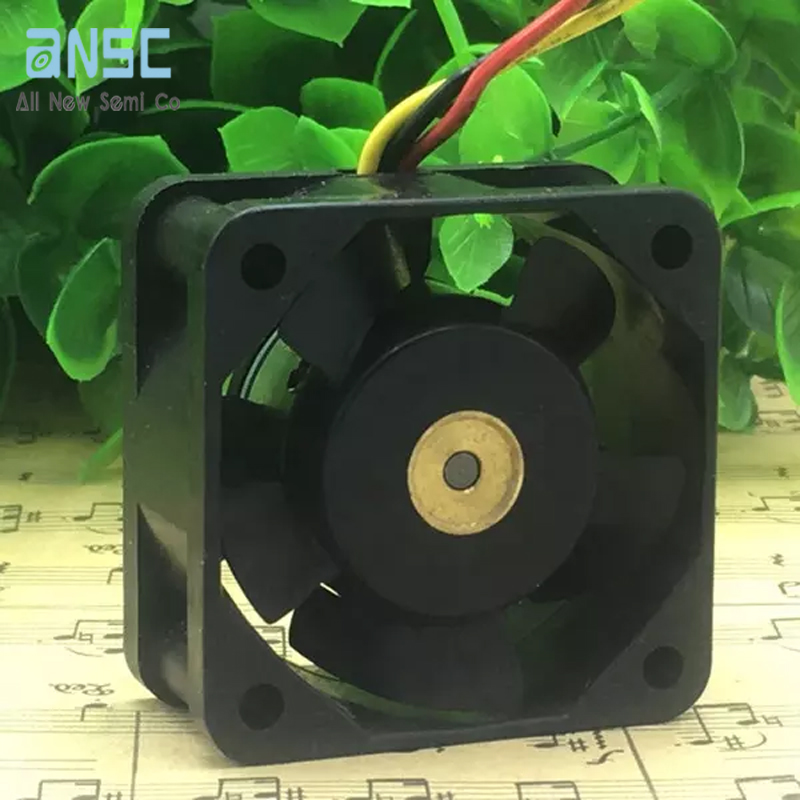

Actual image of the product
