Product Description
Type | Description |
|---|---|
PART# | 4606Z |
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | 4000Z |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 115VAC |
Size / Dimension | Square - 119mm L x 119mm H |
Width | 38.00mm |
Air Flow | 106.0 CFM (2.97m3/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 45.0dB(A) |
Power (Watts) | 18.00W |
RPM | 3100 RPM |
Termination | 2 Terminals |
Ingress Protection | - |
Operating Temperature | -40 ~ 185°F (-40 ~ 85°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 1.2 lbs (544.3 g) |
Current Rating (Amps) | - |
Voltage Range | - |
Material - Frame | Metal |
Material - Blade | Metal |
Lifetime @ Temp. | 40000 Hrs @ 40°C |
Base Product Number | 4606 |

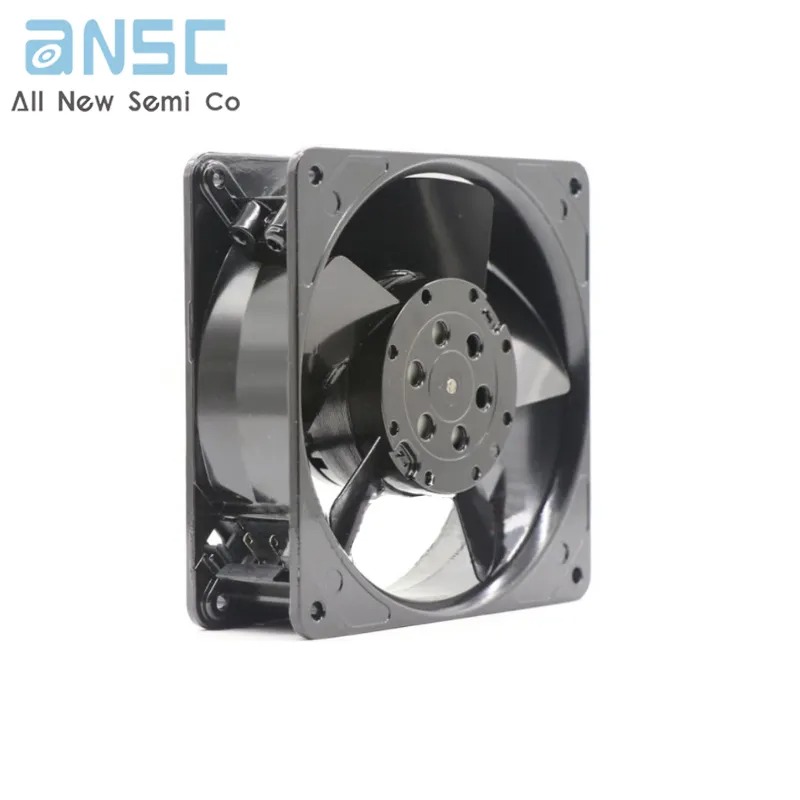

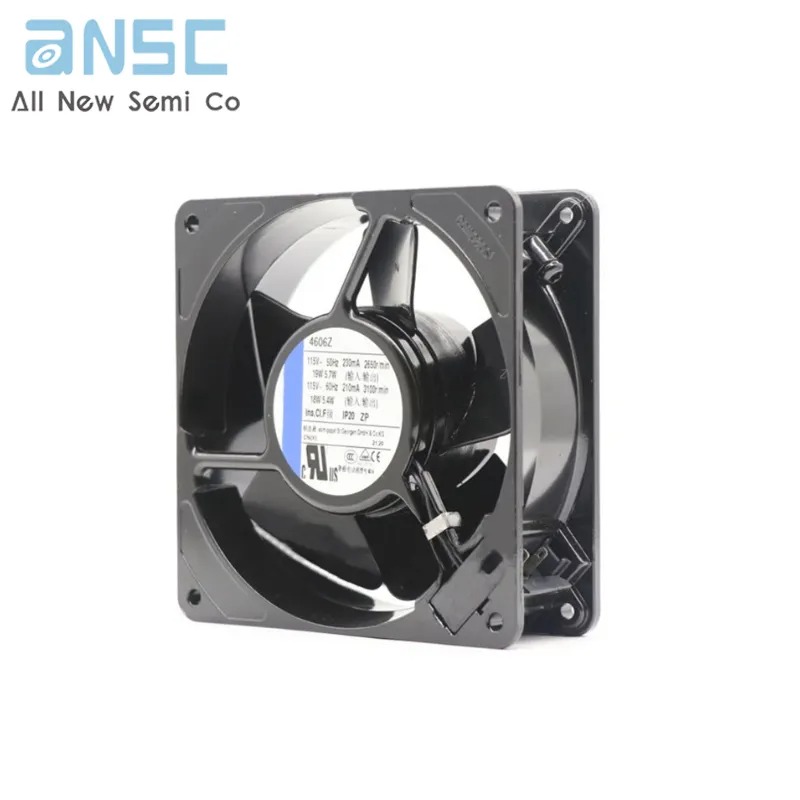

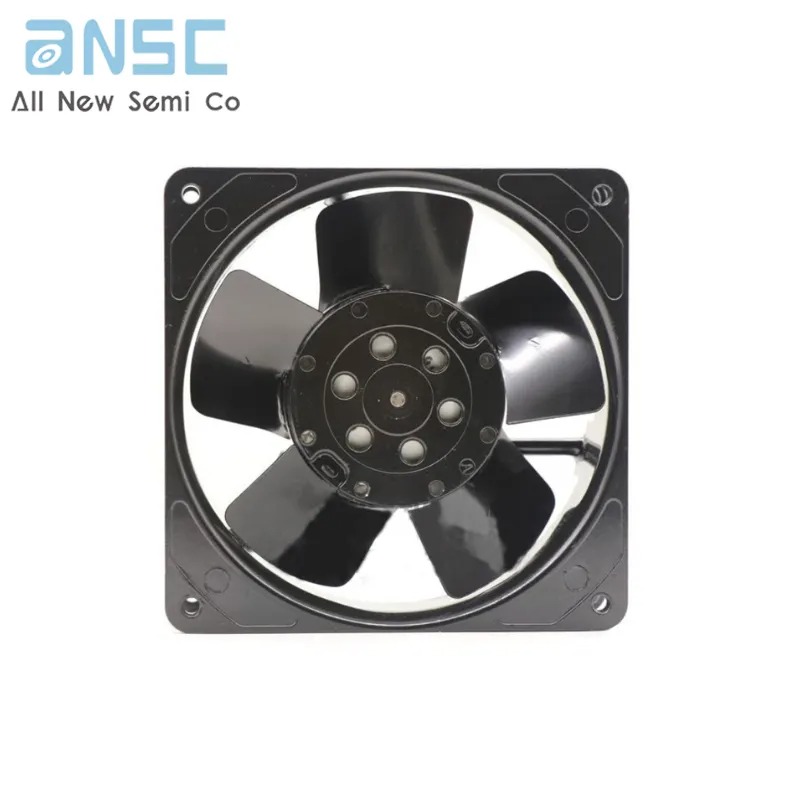

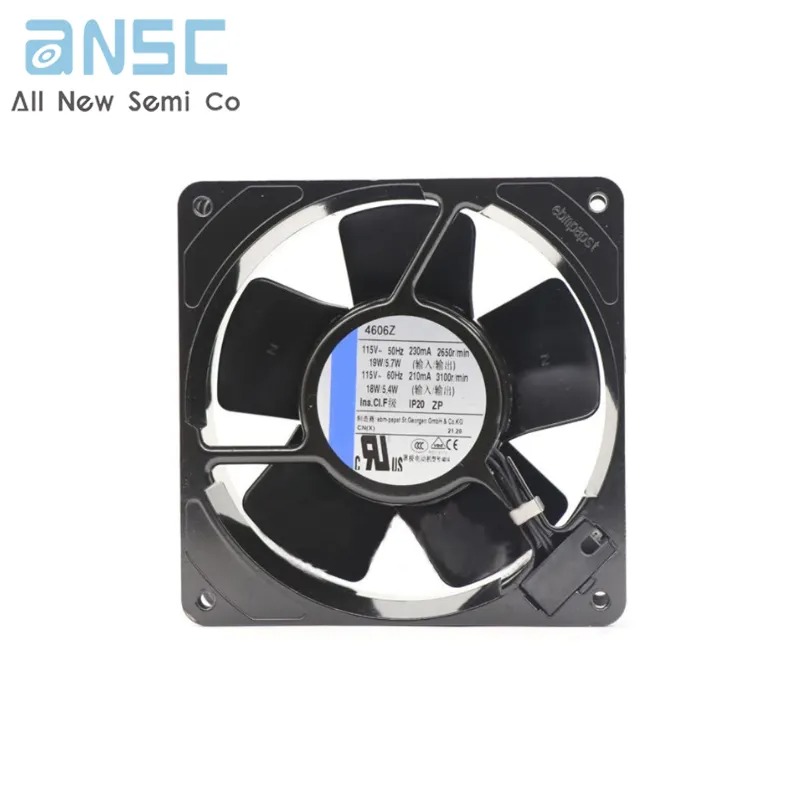

Actual image of the product
