Product Description
| Type | Description |
| PART# | 8414NG |
| Category | Fans, Blowers, Thermal Management |
| Fans | |
| DC Brushless Fans (BLDC) | |
| Mfr | / |
| Series | 8400N |
| Packaging | Bulk |
| Part Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 25.40mm |
| Air Flow | 40.6 CFM (1.14m3/min) |
| Static Pressure | - |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Features | - |
| Noise | 32.0dB(A) |
| Power (Watts) | 2 W |
| RPM | 3100 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.209 lb (94.8 g) |
| Current Rating (Amps) | - |
| Voltage Range | 18 ~ 28VDC |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Base Product Number | 8414 |

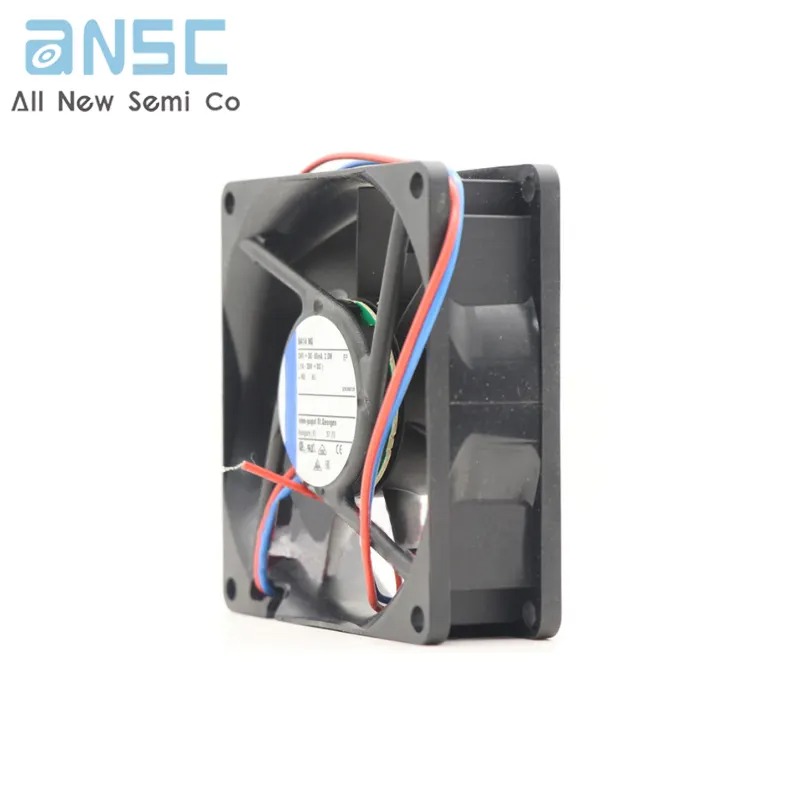

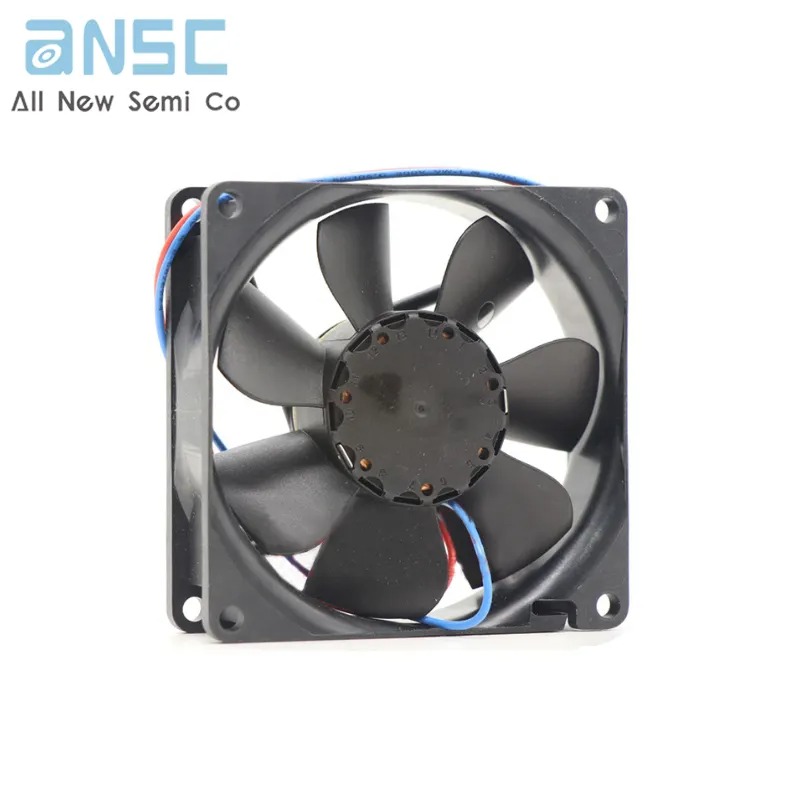

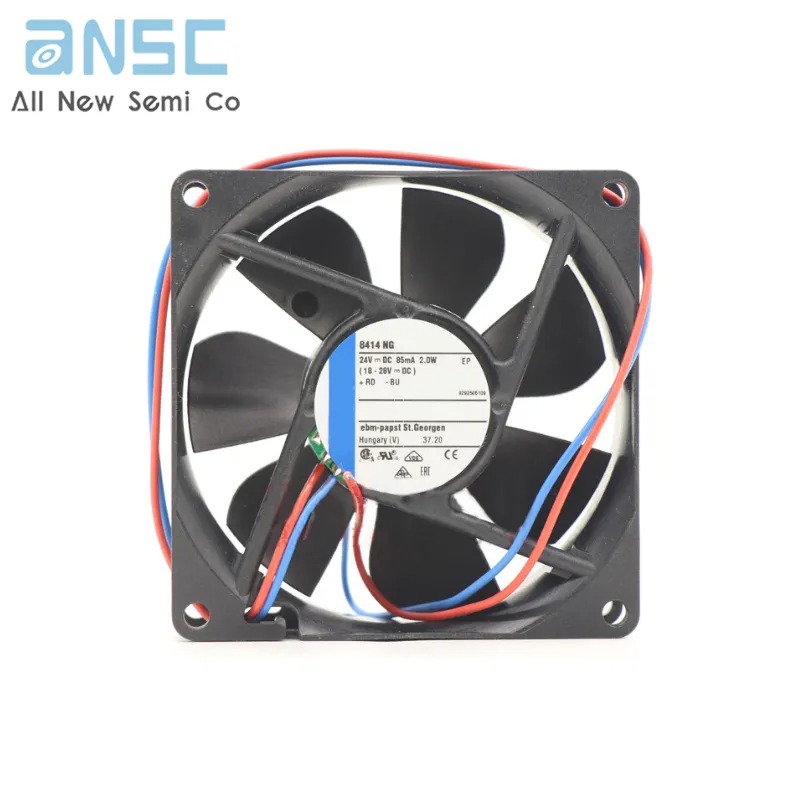

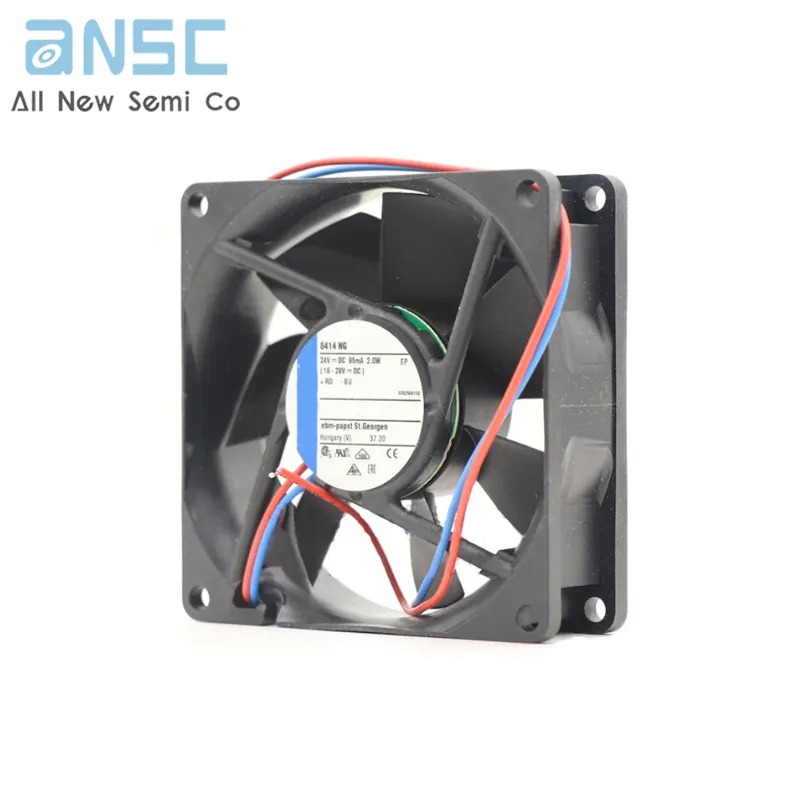

Actual image of the product
