Product Description
Type | Description |
|---|---|
PART# | 4374S |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | - |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 119mm L x 119mm H |
Width | 32.00mm |
Air Flow | 100.0 CFM (2.80m3/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | Speed Sensor (Tach) |
Noise | 45.0dB(A) |
Power (Watts) | 4.9 W |
RPM | 2800 RPM |
Termination | 3 Terminals |
Ingress Protection | - |
Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
Approval Agency | CSA, UL, VDE |
Weight | 0.485 lb (219.99 g) |
Current Rating (Amps) | 0.205A |
Voltage Range | 12 ~ 28VDC |
Material - Frame | Polybutylene Terephthalate (PBT) |
Material - Blade | Polyamide (PA), Nylon |
Lifetime @ Temp. | 70000 Hrs @ 40°C |
Base Product Number | 4374 |

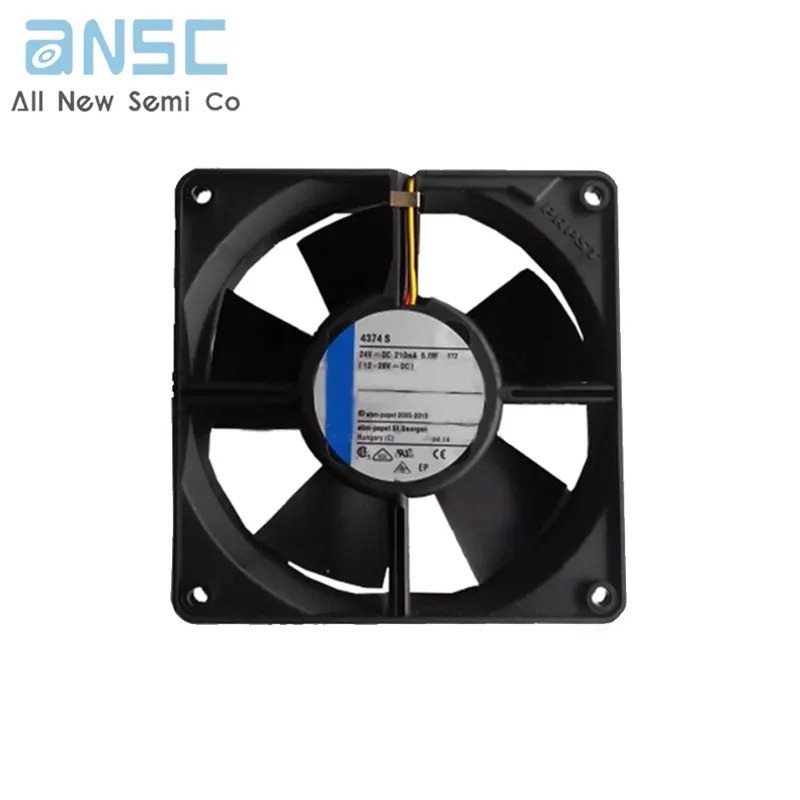

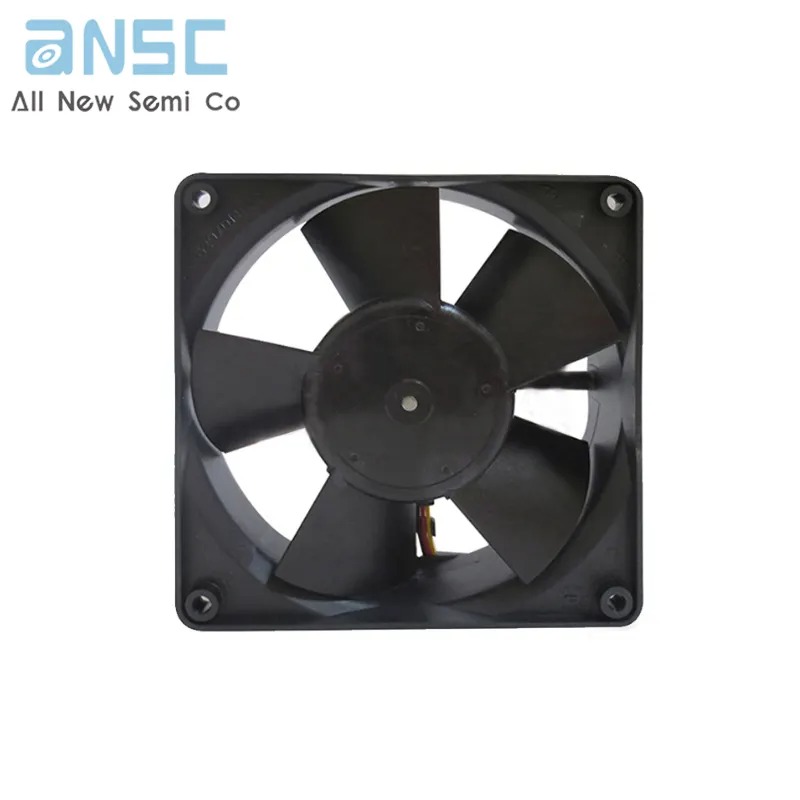

Actual image of the product
