Product Description
Type | Description |
|---|---|
PART# | W2S130-BM03-01 |
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | W2S130 |
Packaging | Box |
Part Status | Active |
Voltage - Rated | 230VAC |
Size / Dimension | Round - 150mm Dia |
Width | 55.00mm |
Air Flow | 250.1 CFM (7.00m3/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | Thermal Overload Protector (TOP) |
Noise | 62.0dB(A) |
Power (Watts) | 46.00W |
RPM | 3050 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | -13 ~ 158°F (-25 ~ 70°C) |
Approval Agency | CCC, CE, CSA, EAC, UL, VDE |
Weight | 2.5 lbs (1.1 kg) |
Current Rating (Amps) | 0.270A |
Voltage Range | - |
Material - Frame | Aluminum |
Material - Blade | Steel |
Lifetime @ Temp. | - |
Base Product Number | W2S130 |

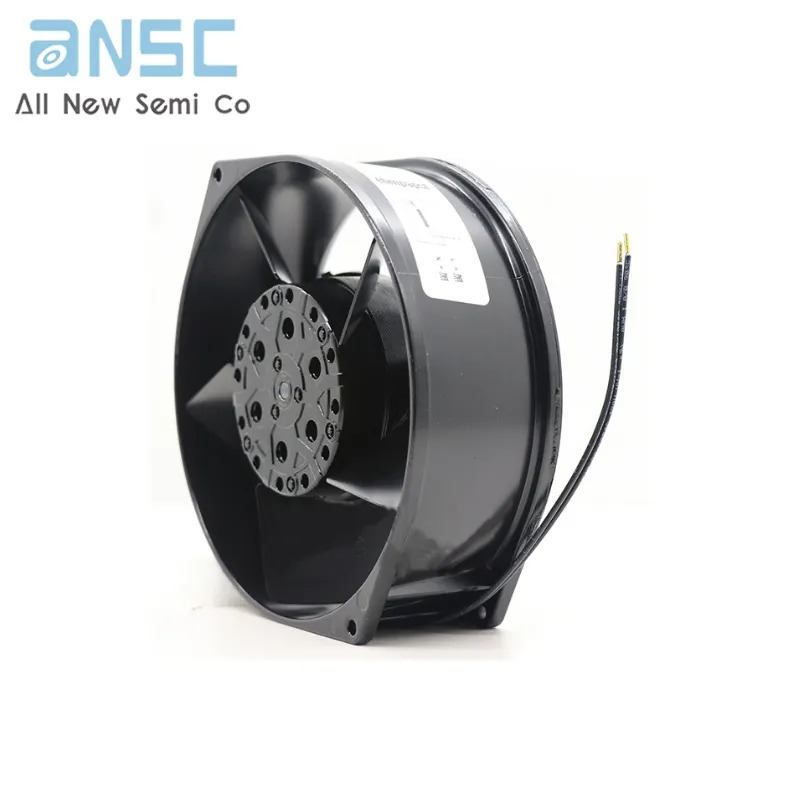

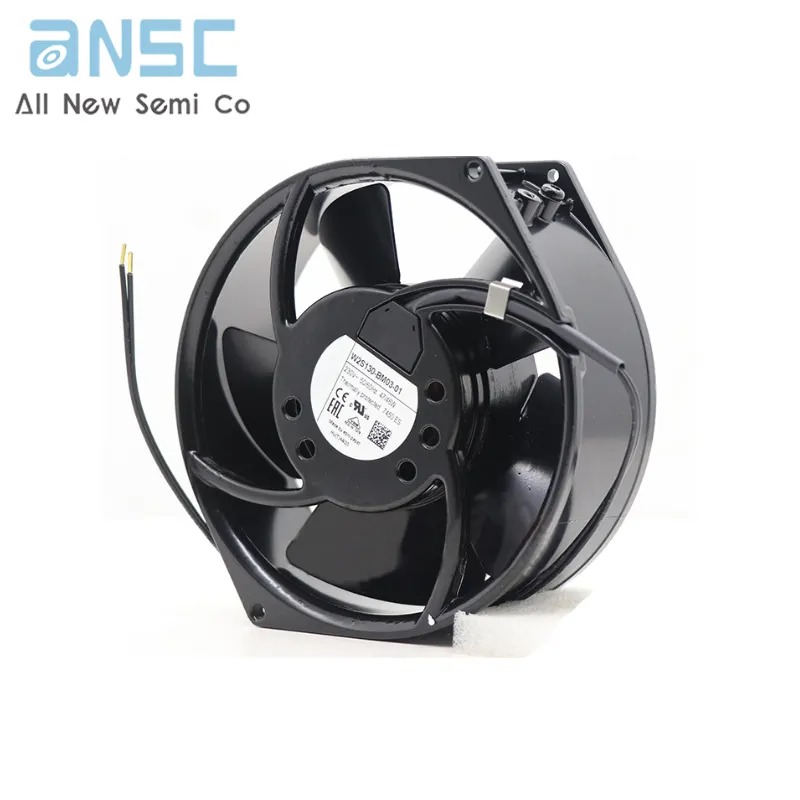

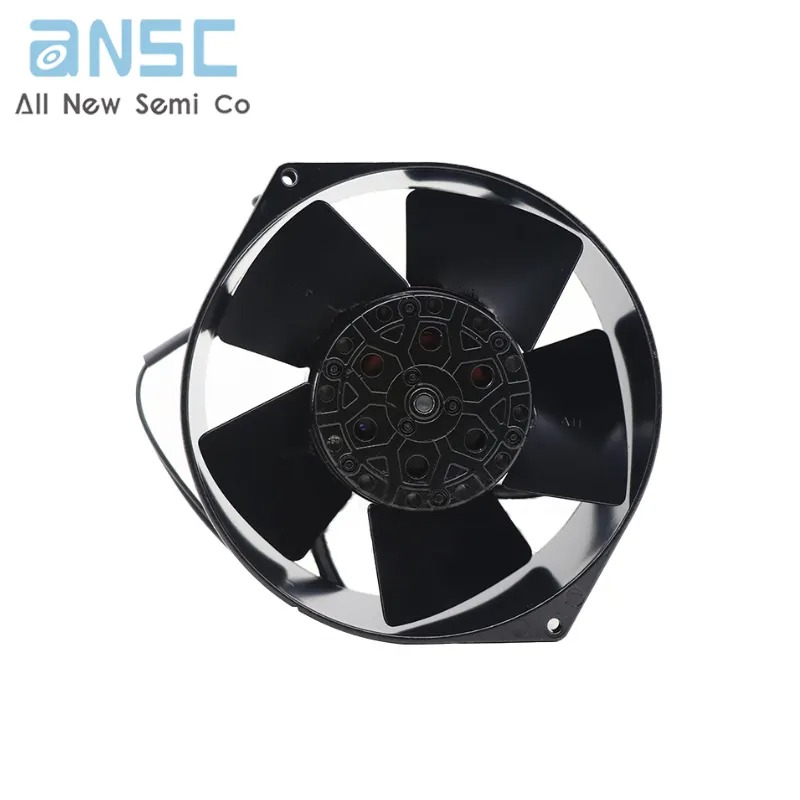

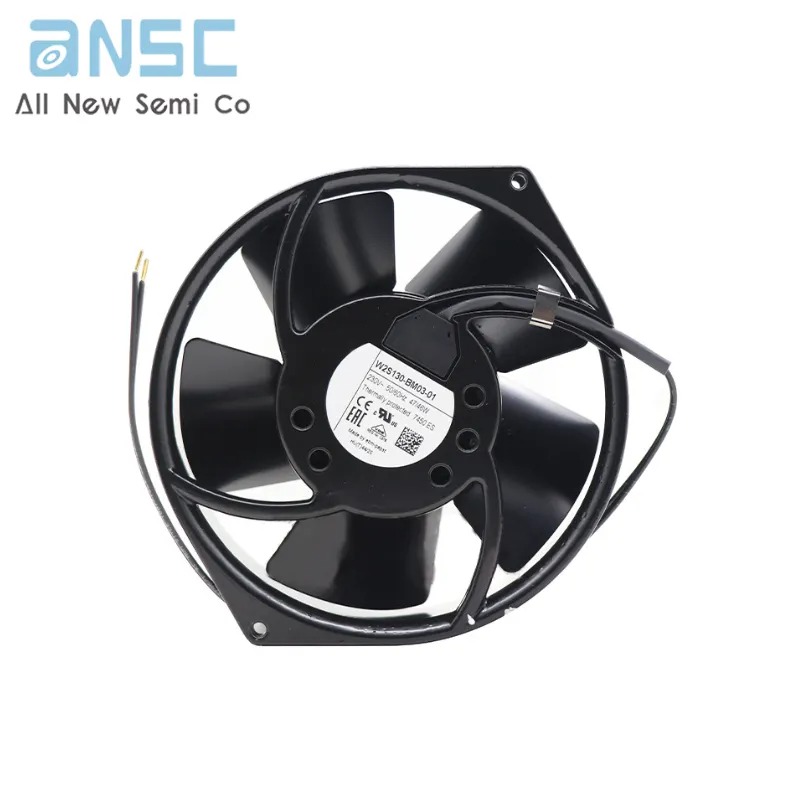

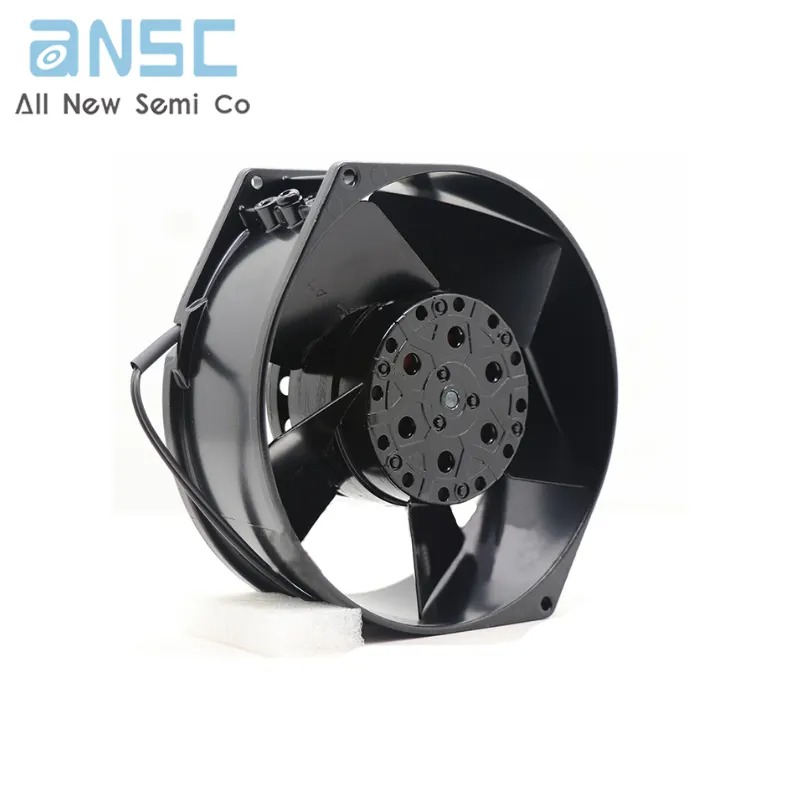

Actual image of the product
