Product Description
Type | Description |
|---|---|
| PART# | 612NGHH |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 600NG |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 12VDC |
Size / Dimension | Square - 60mm L x 60mm H |
Width | 25.40mm |
Air Flow | 33.0 CFM (0.924m3/min) |
Static Pressure | - |
Bearing Type | Sintec |
Fan Type | Tubeaxial |
Features | - |
Noise | 43.0dB(A) |
Power (Watts) | 3.8 W |
RPM | 6850 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 0.19 lb (86.18 g) |
Current Rating (Amps) | 0.255A |
Voltage Range | 8 ~ 13.2VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | 60000 Hrs @ 40°C |
Base Product Number | 612N |

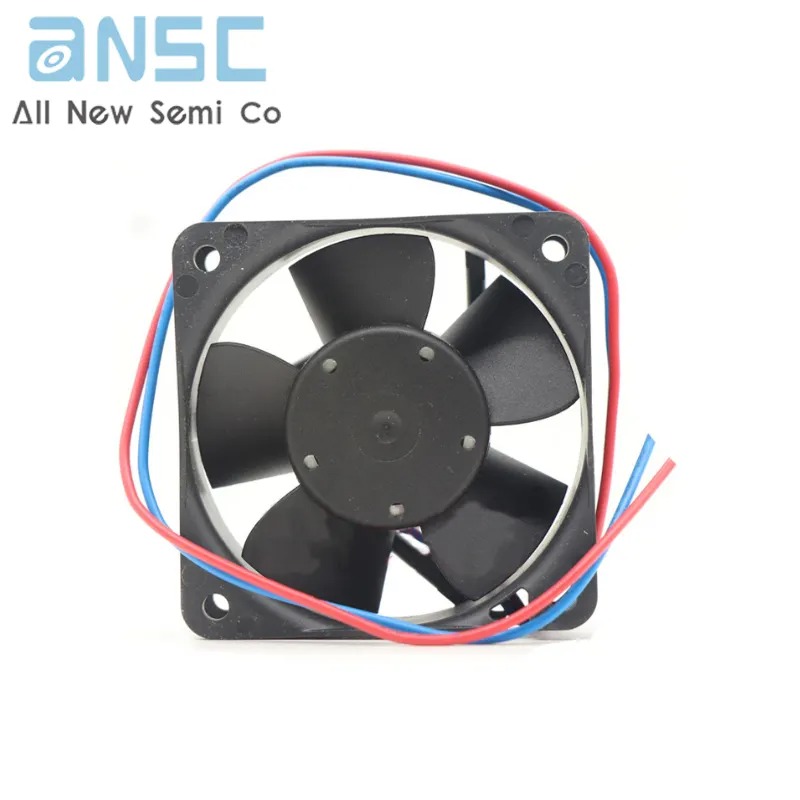

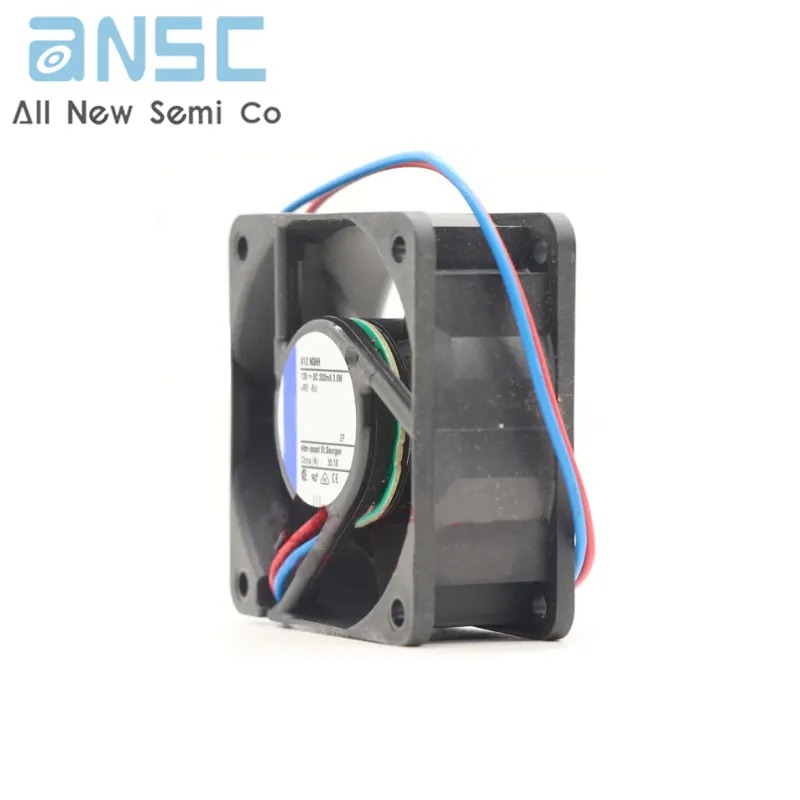

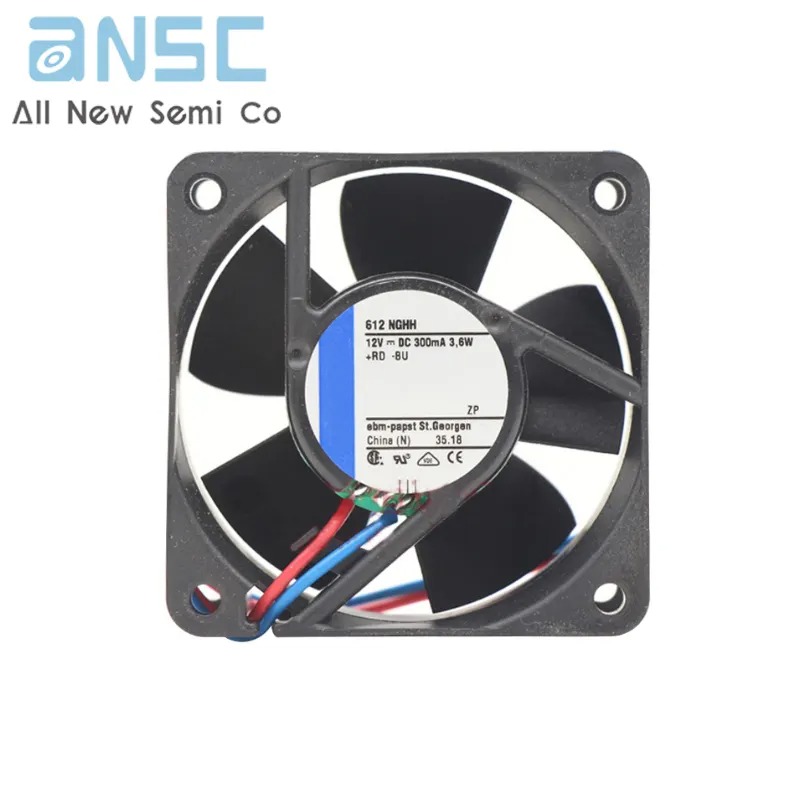

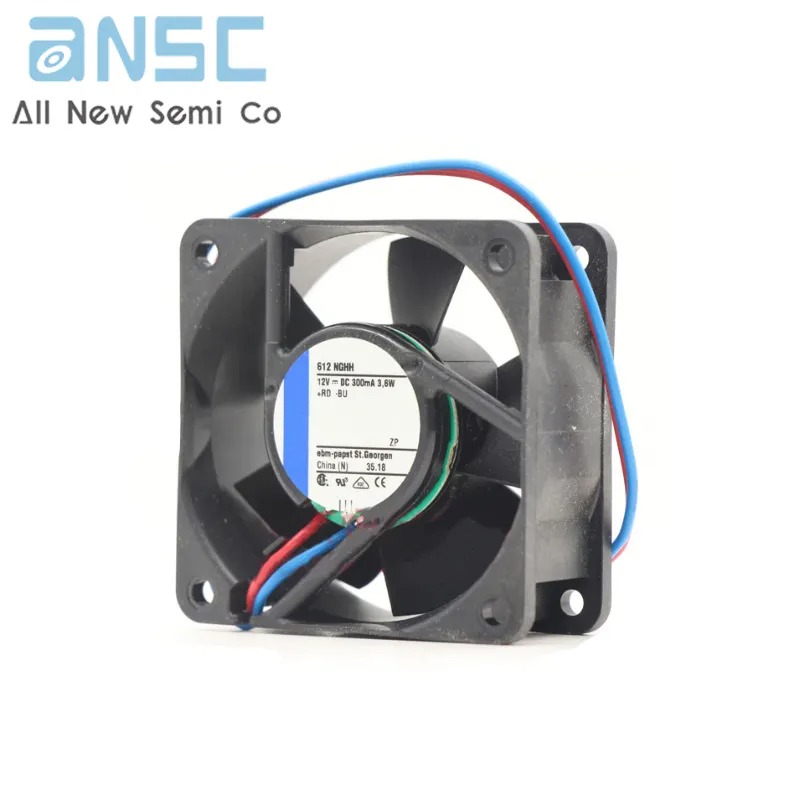

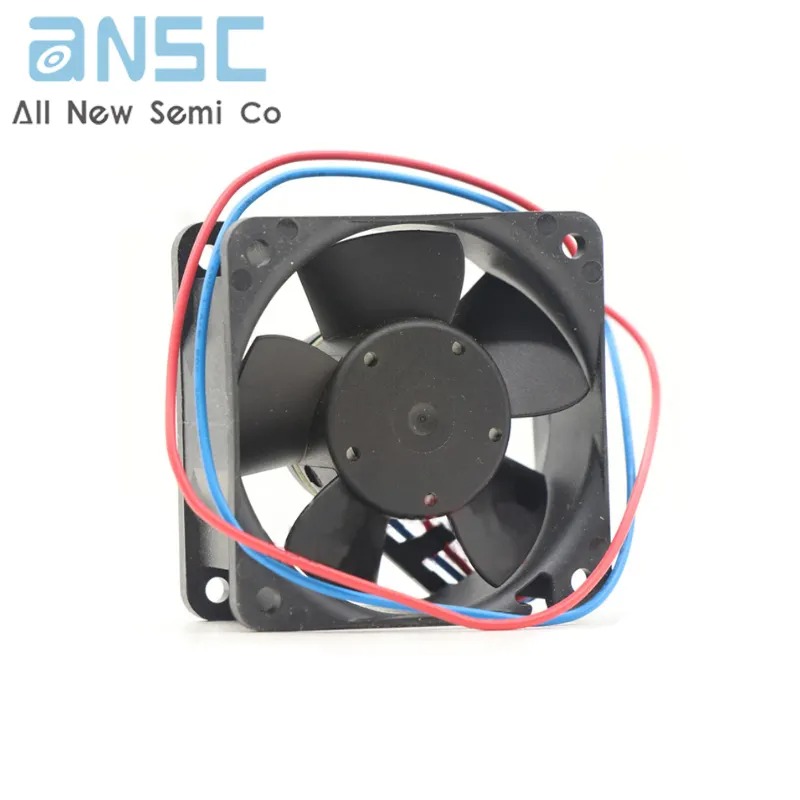

Actual image of the product
