Product Description
Type | Description |
|---|---|
PART# | 255M |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 250 |
Packaging | Box |
Part Status | Active |
Voltage - Rated | 5VDC |
Size / Dimension | Square - 25mm L x 25mm H |
Width | 8.00mm |
Air Flow | 1.2 CFM (0.034m3/min) |
Static Pressure | - |
Bearing Type | Sintec |
Fan Type | Tubeaxial |
Features | - |
Noise | 5.0dB(A) |
Power (Watts) | 200 mW |
RPM | 6000 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 0.011 lb (4.99 g) |
Current Rating (Amps) | - |
Voltage Range | 4.5 ~ 5.5VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | 45000 Hrs @ 20°C |
Base Product Number | 255 |

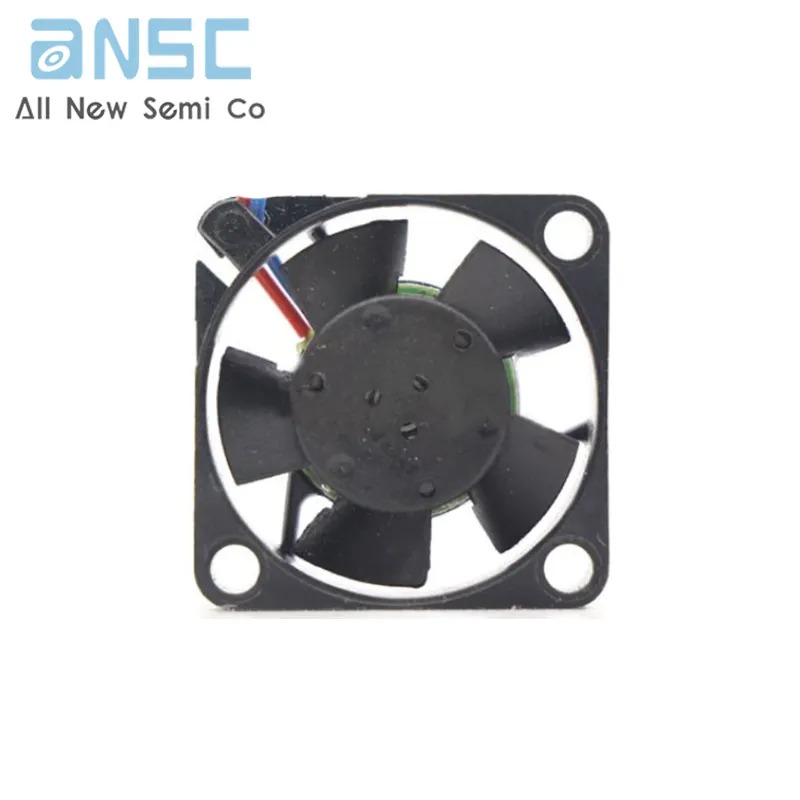

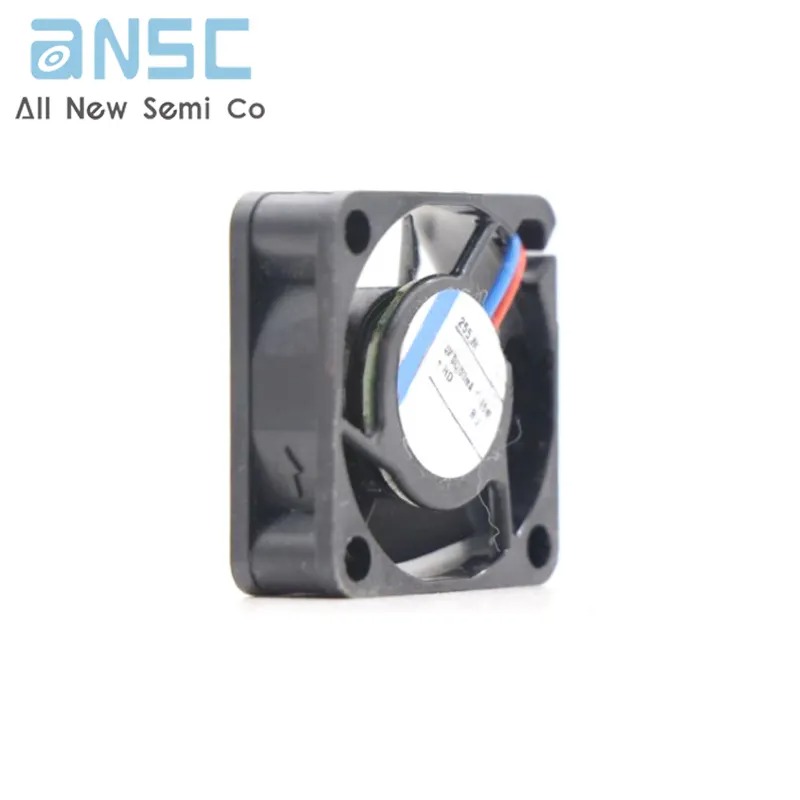

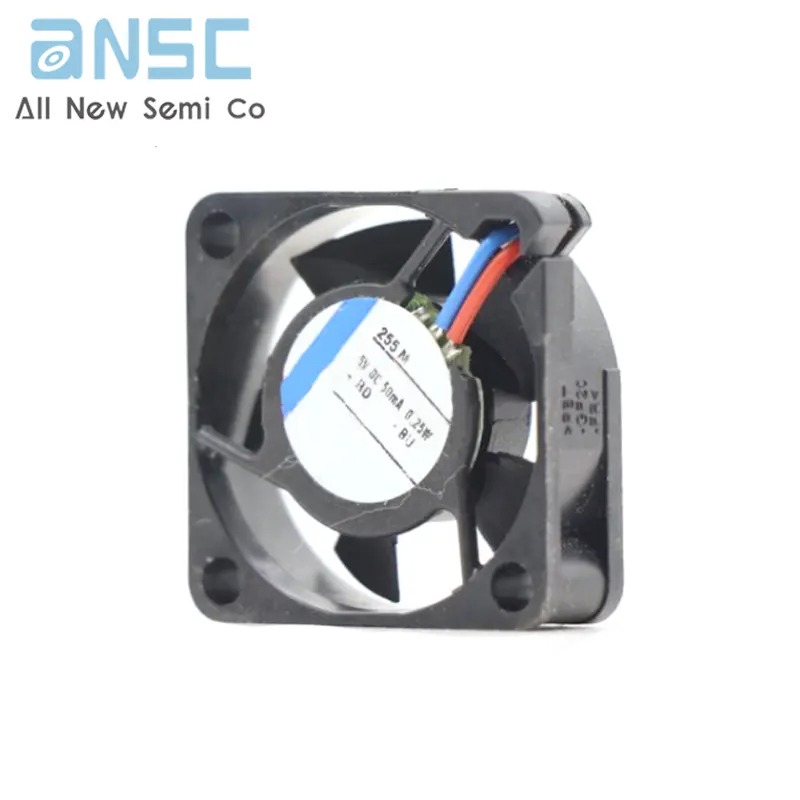

Actual image of the product
