Product Description
Type | Description |
|---|---|
PART# | 8500N |
Category | Fans, Blowers, Thermal Management Fans AC Fans |
Manufacturer | / |
Series | 8000N |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 115VAC |
Size / Dimension | Square - 80mm L x 80mm H |
Width | 38.00mm |
Air Flow | 35.9 CFM (1.01m3/min) |
Static Pressure | - |
Bearing Type | Sintec |
Fan Type | Tubeaxial |
Features | - |
Noise | 34.0dB(A) |
Power (Watts) | 11.00W |
RPM | 3200 RPM |
Termination | 2 Wire Leads |
Ingress Protection | IP20 |
Operating Temperature | 14 ~ 167°F (-10 ~ 75°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 1.1 lbs (499.0 g) |
Current Rating (Amps) | - |
Voltage Range | - |
Material - Frame | Metal |
Material - Blade | Metal |
Lifetime @ Temp. | 55000 Hrs @ 40°C |
Base Product Number | 8500 |

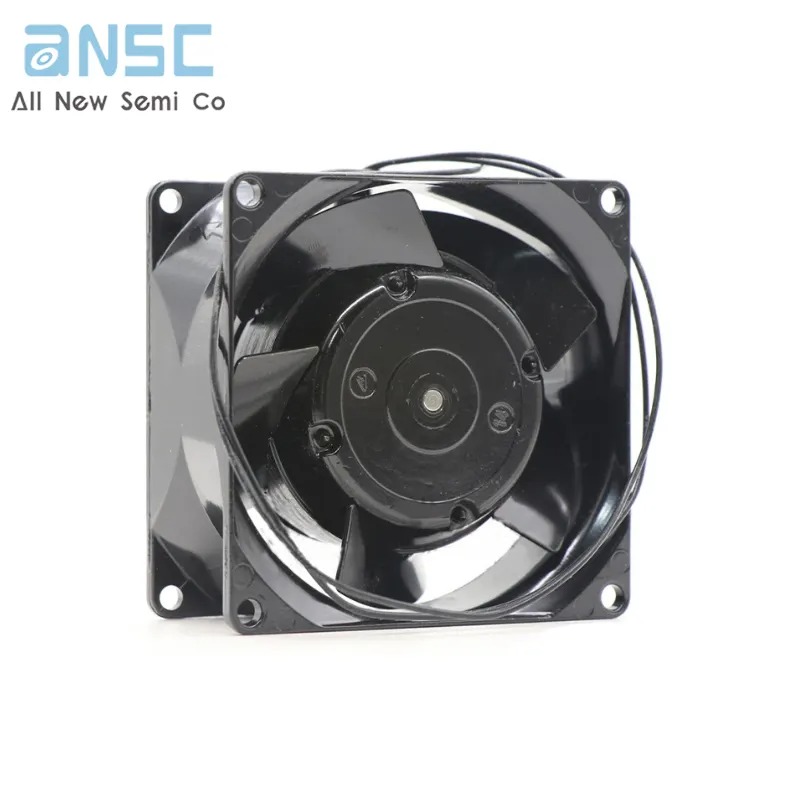

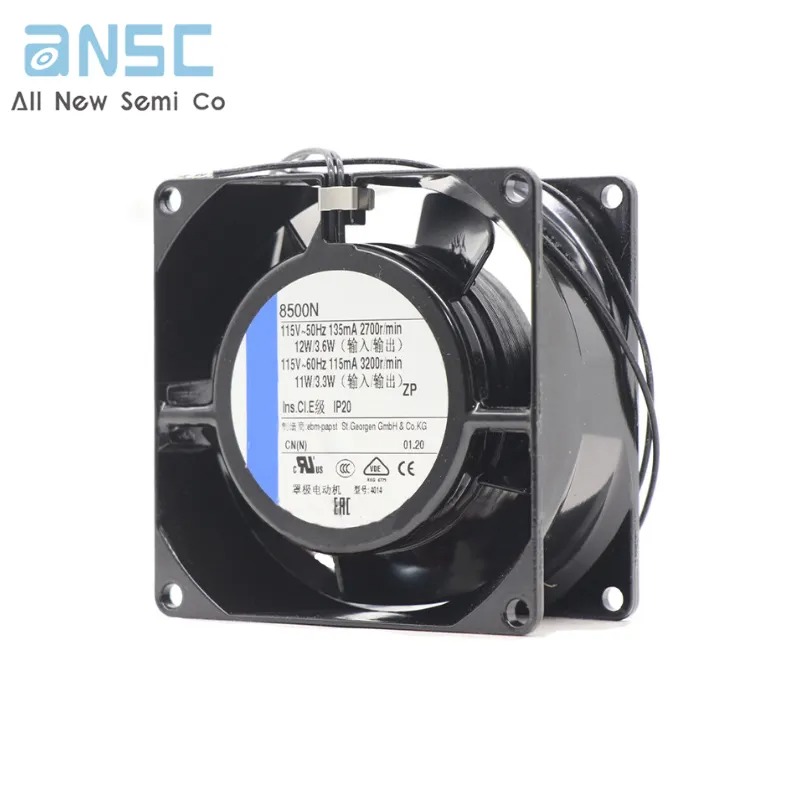

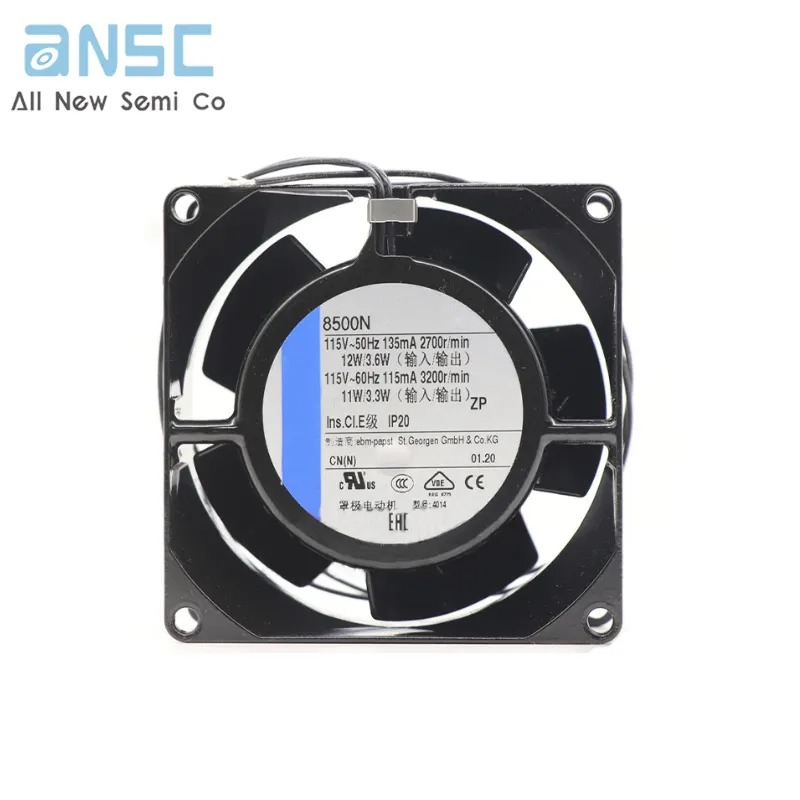

Actual image of the product
