Product Description
Type | Description |
|---|---|
PART# | 4314U |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 4300U |
Packaging | Box |
Part Status | Active |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 119mm L x 119mm H |
Width | 32.00mm |
Air Flow | 100.1 CFM (2.80m3/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 45.0dB(A) |
Power (Watts) | 5 W |
RPM | 2800 RPM |
Termination | 2 Wire Leads |
Ingress Protection | IP68 - Dust Tight, Waterproof |
Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 0.5 lb (226.8 g) |
Current Rating (Amps) | 0.210A |
Voltage Range | 12 ~ 28VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | 62500 Hrs @ 40°C |

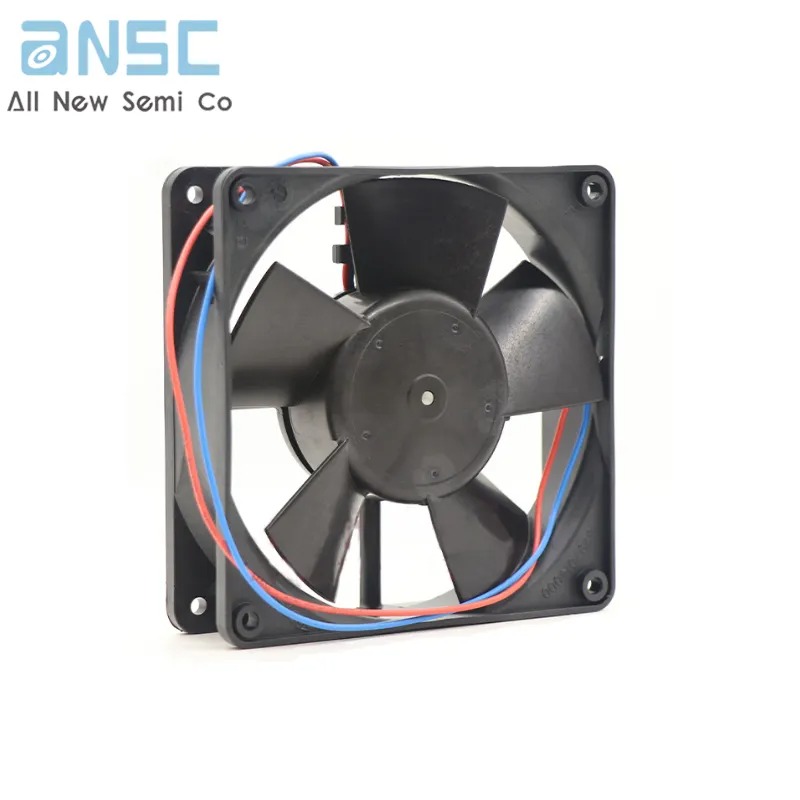

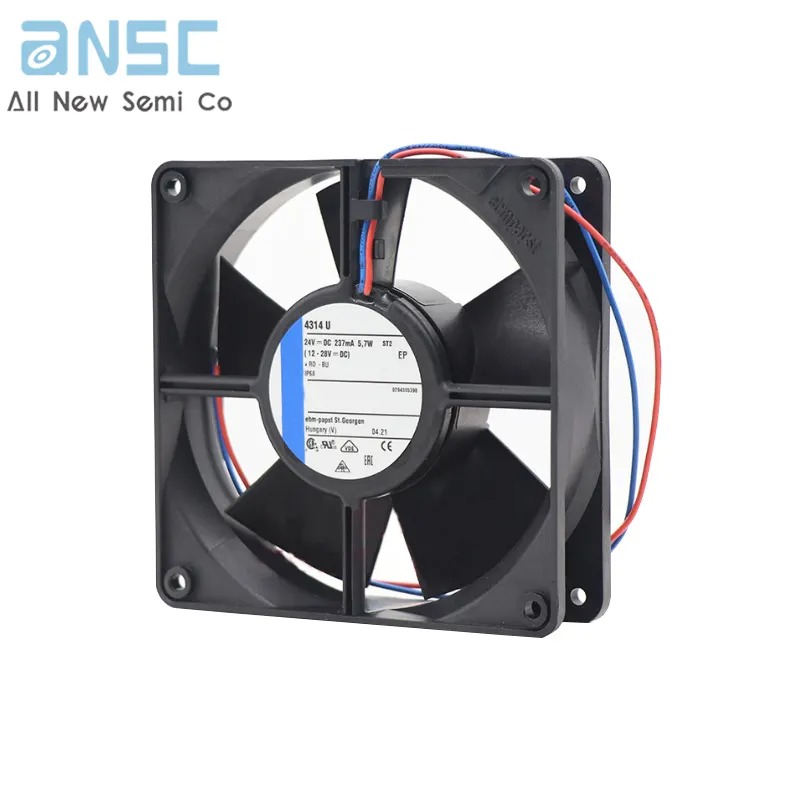

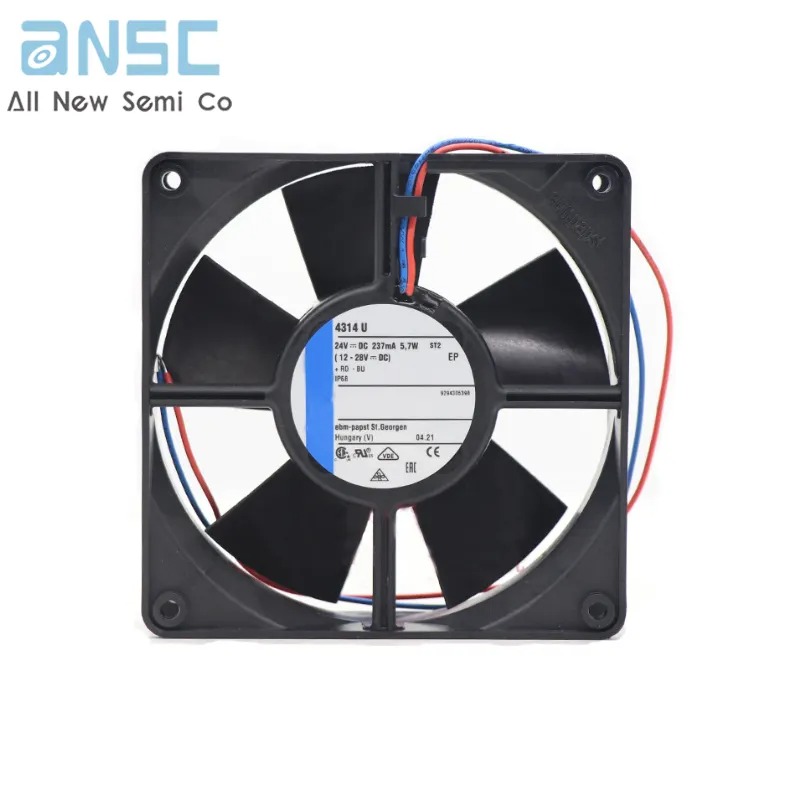

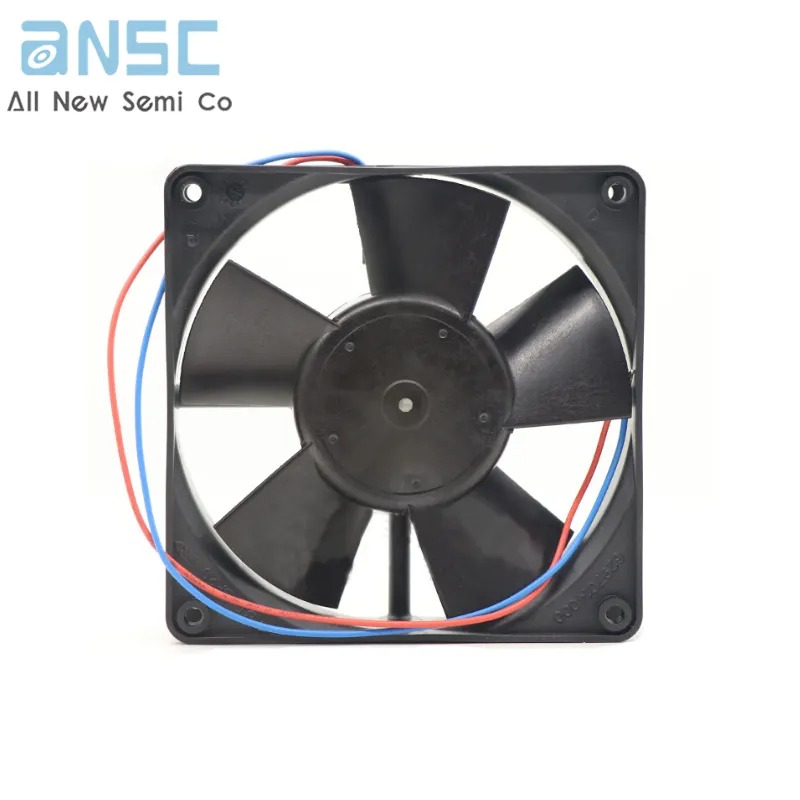

Actual image of the product
