Product Description
Type | Description |
|---|---|
PART# | 3312U |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 3300U |
Packaging | Bulk |
Part Status | Obsolete |
Voltage - Rated | 12VDC |
Size / Dimension | Square - 92mm L x 92mm H |
Width | 32.00mm |
Air Flow | 47.1 CFM (1.32m3/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 37.0dB(A) |
Power (Watts) | 2.4 W |
RPM | 3000 RPM |
Termination | 2 Wire Leads |
Ingress Protection | IP68 - Dust Tight, Waterproof |
Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 0.419 lb (190.06 g) |
Current Rating (Amps) | - |
Voltage Range | 6 ~ 15VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | - |

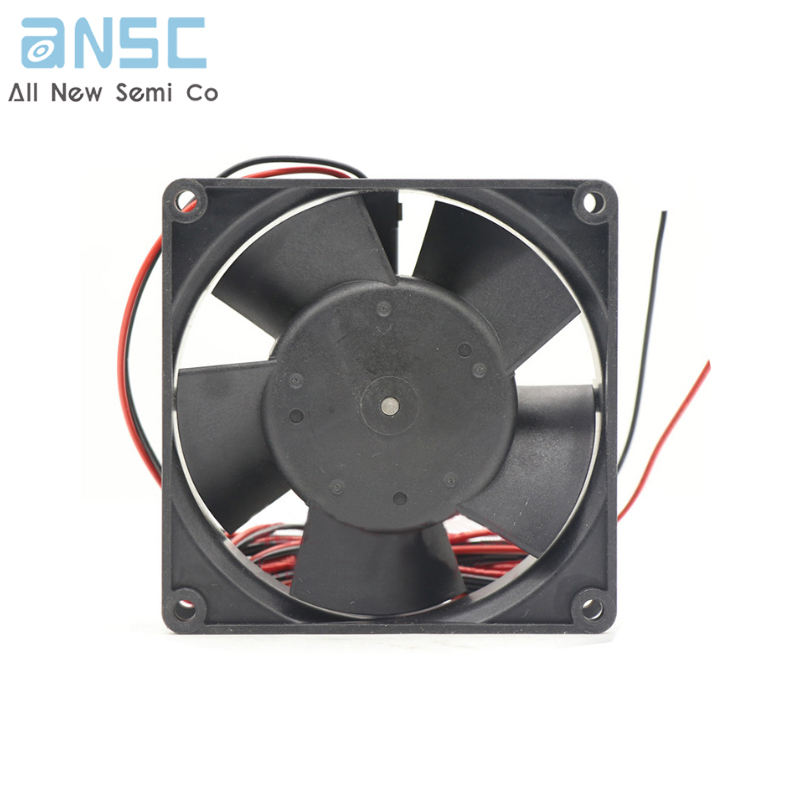

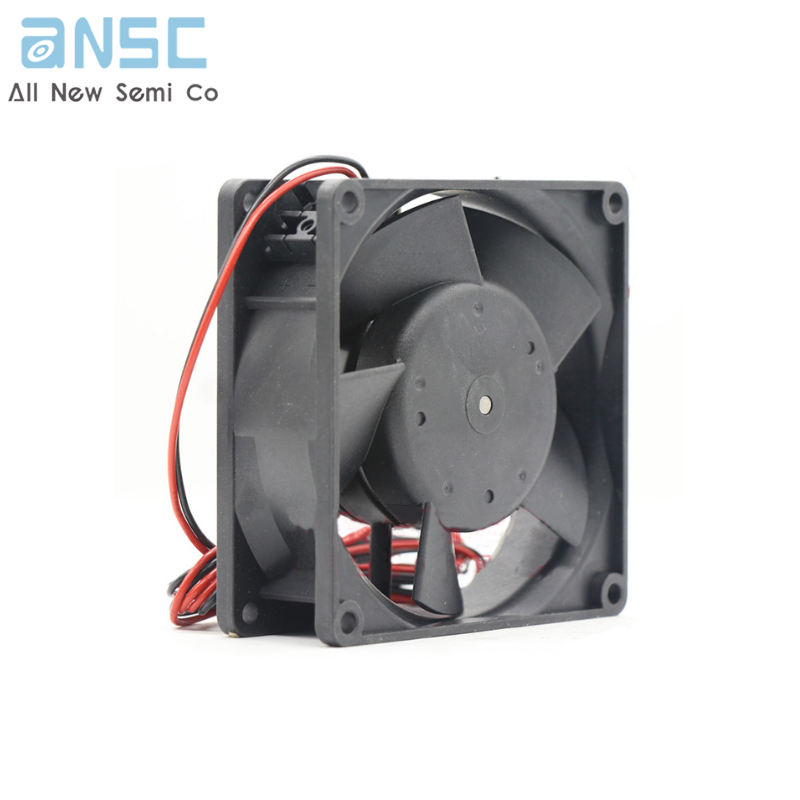

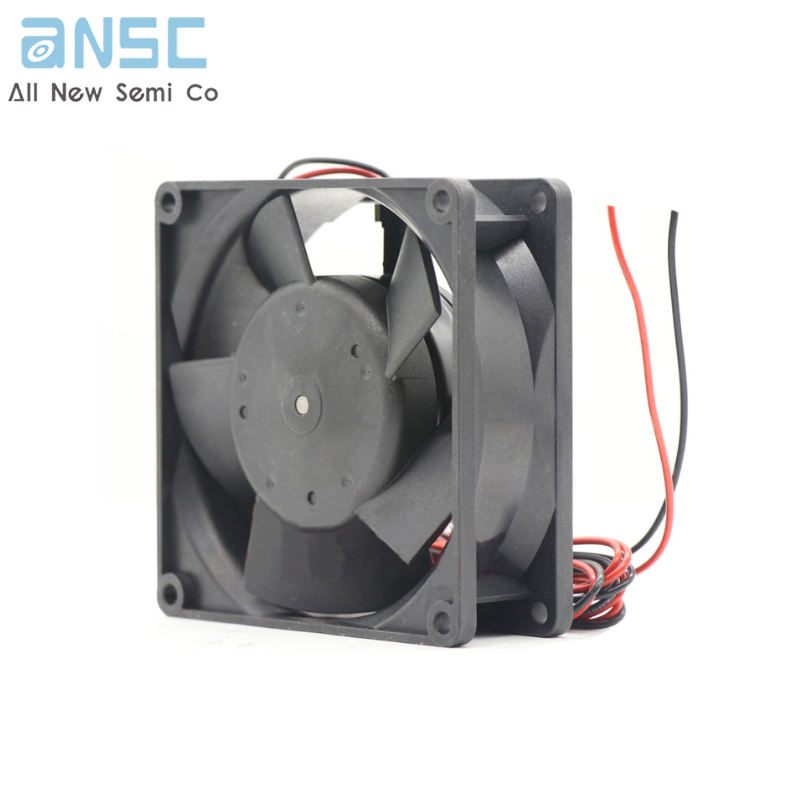

Actual image of the product
