Product Description
Type | Description |
|---|---|
| PART# | 4414/12M |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 4400 |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 119mm L x 119mm H |
Width | 38.00mm |
Air Flow | 108.4 CFM (3.03m3/min) |
Static Pressure | 0.414 in H2O (103.0 Pa) |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) |
Noise | 46.0dB(A) |
Power (Watts) | 4.1 W |
RPM | 3300 RPM |
Termination | 3 Wire Leads |
Ingress Protection | - |
Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 0.609 lb (276.24 g) |
Current Rating (Amps) | - |
Voltage Range | 18 ~ 28VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | 65000 Hrs @ 40°C |
Base Product Number | 4414 |

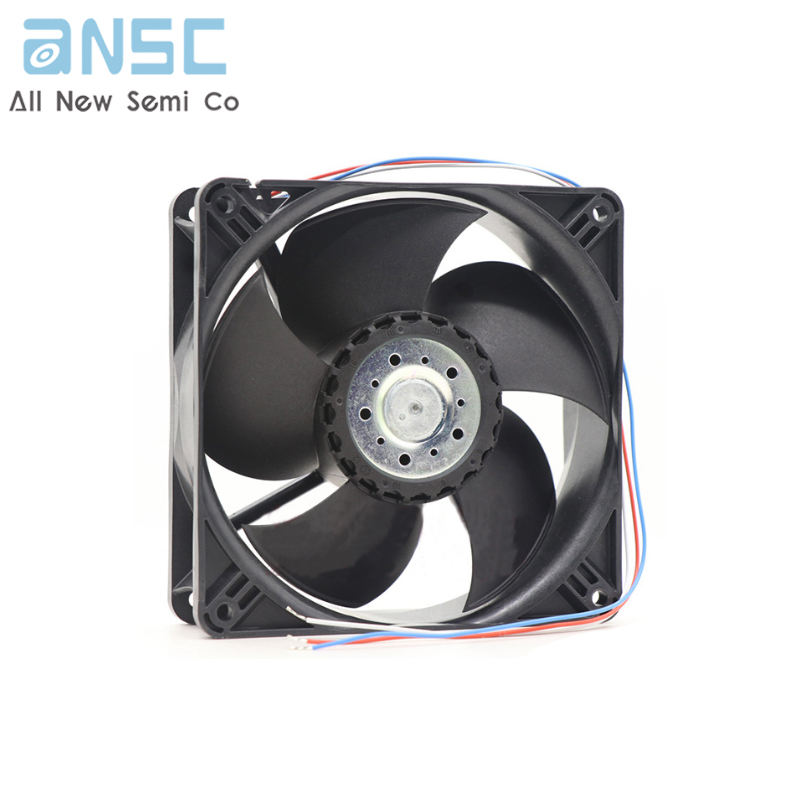

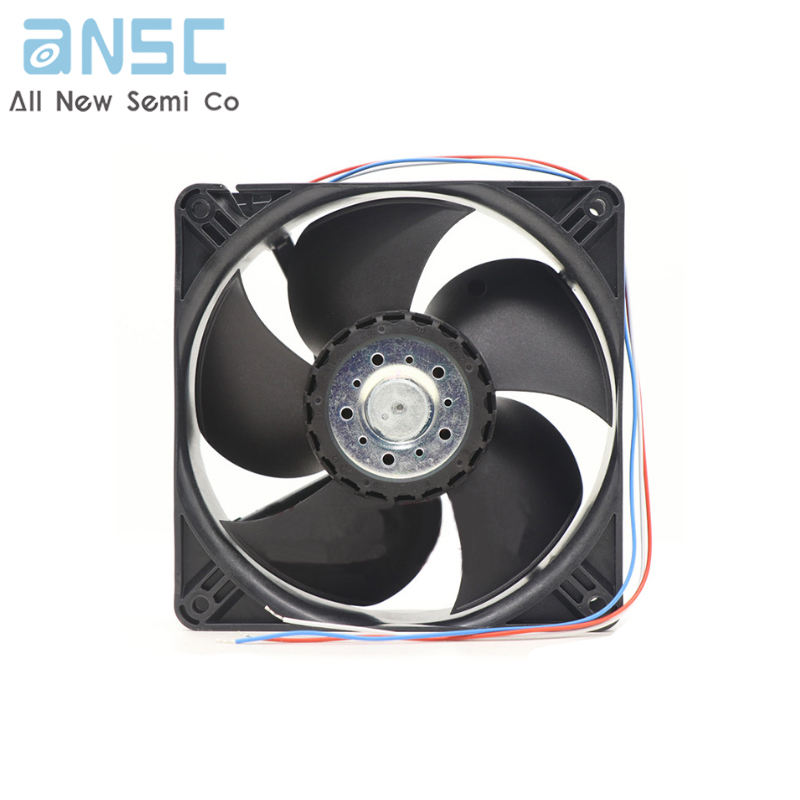

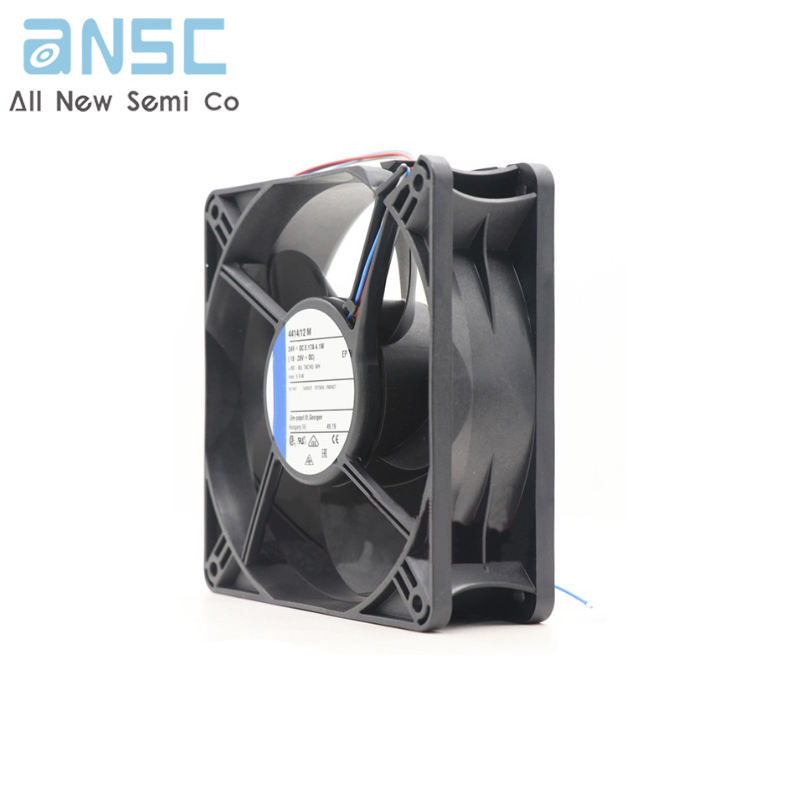

Actual image of the product
